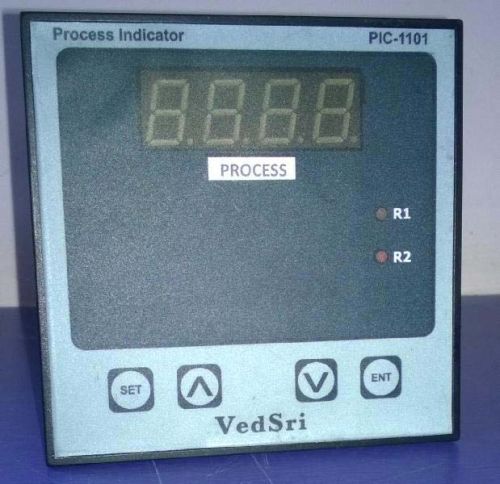

Digital Process Indicators

Supply TypeManufacturer, Supplier
Preferred Buyer Location All over the world

We proudly present ourselves as an esteemed manufacturer and supplier of Digital Process Indicators located in Hyderabad, Telangana. Acclaimed for their efficiency and authenticity, the Digital....

View More Details

Send Enquiry

Product Details

We proudly present ourselves as an esteemed manufacturer and supplier of Digital Process Indicators located in Hyderabad, Telangana. Acclaimed for their efficiency and authenticity, the Digital Process Indicators we manufacture can be used for all types of electronic components. Made from raw material sourced from highly reliable vendors, we offer the best quality Digital Process Indicators. These Digital Process Indicators come with Built-in Cold Junction compensations and three wire lead resistance compensation which makes it a highly-precise and stable Indicator.

Features :

Built-in Cold Junction compensation & three wire lead resistance compensation
Linearisation for PMOO & T/Cs
Rugged DIN standard enclosure

Specifications

Input	PMOO, T/C (J,K,R,S), mA, mV Volts.
Supply	Volts. 240 VAC, )10 PHz 110VAC, )10 PHz 24VDC ) 10%-optional
Range	200 to +600^oC» PMOO 0 to 600^oC - J type Oto1200^oC -Ktype Oto1600^_oC -R.Stype User Specified - mV, mA, V
Indication	230 V AC, 50 Hz. 110 VAC, 50 Hz.
Accuracy	User Specified - mV,mA, V ) 0.25% of Full Scale with Eprom Linearisation 0.5 % of F.S.
Indication	31/2 digit RED LED display 0.5' height,for process & set values
Cold Junction Compensation	Built-in.
Operating Temp Operating Humidity	10 to 50^oC 90% Rh N. C. max.
Dia.	48X96X175mm 96X96X175mm or 96X96X100mm 72X72X100 mm 72X144X175 mm
Cutout	92X46 mm, 68X68 mm, 92X92 mm
Mounting Weight Model	Panal Mounting 1.5Kg approx. 101- 31/2 digit LED display 102-41/2 digit LED display 101R-PMOO input 101M-T/C input 101V-Voltage input 102R- PMOO input 102M- T/C input 102C- 0/4 to 20mA input
