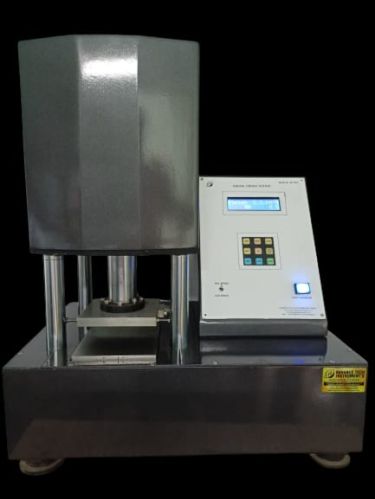

Advancetech Digital Ring Crush Tester

₹ 1.20 Lakh / Pcs

MOQ1 piece
Brand NameAdvancetech
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

The ring crush resistance of paper and paperboard is the maximum compressive force that a test piece will sustain without being crushed, the test piece being in the form of a cylinder, standing on one end, and the force being applied to the other end under specified conditions. This method applies to papers and paperboards with a thickness of not less than 0.15 mm and not more than 0.49 mm.

Details :

It is primarily intended for corrugated media, liner and other papers and boards for use in the manufacture of packaging cases and boxes.
The test piece is placed in a holder containing as annular groove so that it forms a cylinder with a horizontal base.
It is then subjected to a uniformly increasing force in a testing machine until crushing occurs.

Specification

Automatic return of platens after rapture
Mains Supply	220 Volts ±10%, 50 cycles (if not otherwise specified in your order and acknowledge by us)
Load Sensor	500.0 kg.
Measuring Range	4999.9N
Accuracy	Better than ± 1% of force reading, but not better than ± 1
Display	lcd display
Stroke height	76 mm
Crushing test speed	12.5 mm/min ± 2.5 and variable speed also possible through parameter setting
Return Speed	400mm/min.
Strip Dimension	12.5 MM X 152.4 MM
Computer Output	com port to transfer the data on pc
Power Requirement	Capacity 300 Watt
Deformation Speed	Selected/Variable
Electronic overload protection at load cell capacity
