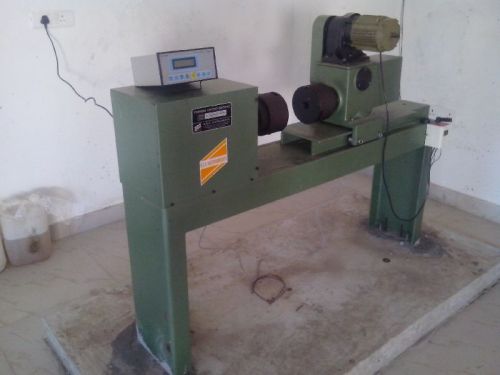

Digital Torsion Testing Machine

Listing ID #4024643

Get Latest Price

Max Angle Range999.9 degrees
AdvantageFactory directly sale
Torsion Speed1.5
Dimensions600x450x1800mm (WxDxH)
Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Torsion Speed 1.5
Max Angle Range 999.9 degrees
Advantage Factory directly sale
Dimensions 600x450x1800mm (WxDxH)
Power supply 230V ± 10% 50 Hz
Biggest test torque 500 nm

We are the prominent Manufacturer & Supplier of high performance Digital Torsion Testing Machine. Fabricated using high-grade parts and components, our Digital Torsion Testing Machine is acknowledged for excellent performance, high strength, accurate results and longer service life. Our machine is thoroughly inspected by our quality analysts and complies with the set standards. We make available our Digital Torsion Testing Machine at market leading rates.

Features :

5 Digit 7 Segment ½ inch Red LED Display for LOAD Indication
4 Digit 7 Segment ½ inch Red LED Display for Angle of Rotation
2 Digit 7 Segment ½ inch Red LED Display for Number of Rotation
Selection of Units Kgm or Nm for load
Selection of Units Deg or Rad for Angle of Rotation
Real Time Clock for report generation
Password to safeguard unauthorized access for calibration and other important settings
Multifunction Keyboard to select the parameters
Data storage of last 25 Test Reports. The data of all the settings and reports is in memory even if power is absent.
Report Printing facility on DOT MATRIX 80 column printer
Rs232 communication facility(optional)
Potential free NO contact(rated 2A @ 230Vac) to START/STOP TEST cycle.
Safety Fuse Link(20mm) rated 230V,1A provided inside the controller

Technical Specifications

Models	UNIT	MTMS- TTM-6(E)	MTMS- TTM-10(E)	MTMS- TTM-20(E)	MTMS- TTM-50(E)	MTMS- TTM-100(E)	MTMS- TTM-200(E)
Max. Torque capacity	NM	60	100	200	500	1000	2000
Least Count	NM	0.01	0.01	0.02	0.05	0.01	0.02
Torsion Speed	RPM	1.5	1.5	1.5	0.5	0.5	0.5
Clearance between Grips	MM	0-420	0-420	0-420	0-500	0-600	0-1000
Grips For Round Specimens	MM	4-8 8-12	4-8 8-12	7-10 10-15 15-20	10-17 17-24 24-30	10-18 18-26 26-34	20-30 30-40 40-50
Grips For Flat specimens Width mm	MM	1-5 25	2-8 25	3-10 30	5-12 40	5-15 50	10-20 60
motor (400-440 V, 3 Phase & 50 Hz.)	HP	0.5	0.5	0.5	0.5	1	1
