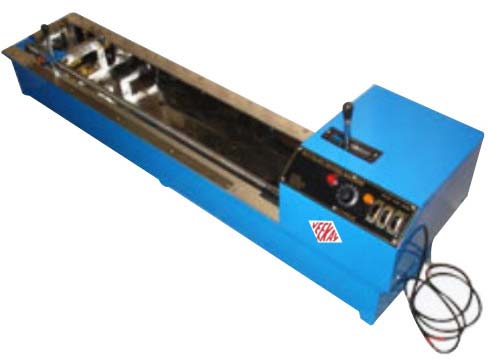

Ductility Testing Machine

It would be a great decision to grab our Ductility Testing Machine. An exciting feature of this Ductility Testing Machine is that the briquette of bitumen can be stretched at a rate of 50 mm min. +2.5 mm per minute at a temperature of 27^{oC +0.5oC. What makes our Ductility Testing Machine from others available in the market is its rotating shaft with two speed levels of travel for the bracket, 5 cmmin and 1 cmmin. our Ductility Testing Machine features special control switches for motor pump heater and indicator lamps. We make sure to cater to the user’s convenience and hence these control switches are fixed at a convenient place on the water bath. Components}

• The apparatus consists of water bath, with a thermostatic heater and a circulating pump to maintain uniform water temperature. One half of the briquette moulds is fixed on a fixed plate in the water bath, the other half of the briquette mould is fixed to a carrier which slides over a rotating the threaded shaft with a clutch.
• Motor and gears to rotate the shaft are housed in a cabinet fixed above the other end of the bath.
• A pointer is fixed to the carrier moves over a scale graduated from 0-110 cm x 1 mm fixed on the bath with “0” (Zero) of the scale towards the fixed plates side.
• A rotating shaft with 2 speed levels of travel for the bracket, 5 cmmin and 1 cmmin. selected by a clutch.
• The water bath inside is made of aluminum S. steel; it is an insulated water bath and is provided with a drain.
• A heater with thermostatic control is fixed inside the water bath.
• Control switches for motor pump heater and indicator lamps are fixed at a convenient place on the water bath.
• Three briquette moulds and one base plate, steel all made of brass operates on 230V A.C. supply single phase.
