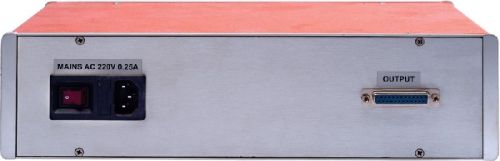

Electronic Gauge Interface Standard Probe Module

FEATURES:

• Eight measuring channels having pre-determined full-scale DC output voltage, based on a pre-determined measuring range
• Interfaced to eight Baker Inductive probes
• Recessed ‘Zero’ control per channel: Travel 50 to 60 µm
• Recessed calibration control per channel
• Max. permissible error (MPE) per channel is less than or equal to ±1 % of the full scale measuring range
• Reference temperature of calibration is 20 ºC
• Output drift over operating temperature range : < 0.5 % / ºC
• Drift of sensitivity over operating temperature range : < 0.5 % / ºC
• Output instability: < 200 mv
• Display stability time: < 500 ms
• Power consumed by module 20 VA (max)
• Voltage supply to the read-out module: 230 V AC ±10 %, 50 Hz
• Operating temperature range 0 ºC to 45 ºC. Humidity should not exceed 60 % Rh (non-condensing)
• All measuring channels are compatible only to the Baker Axial probes
• Also available in 4 & 2 Channel (Probe inputs)
