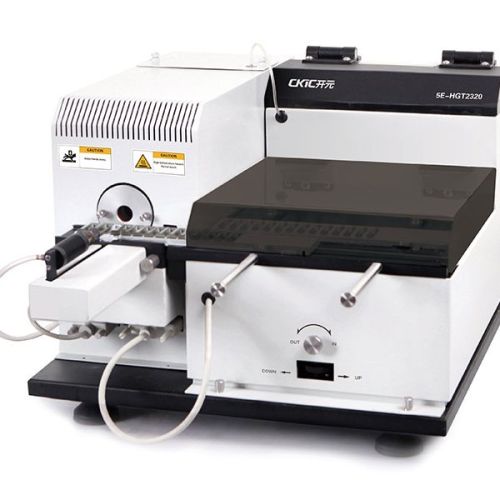

Elemental Analyzer

Company Information

Ask for more detail from the seller

Report incorrect details

DetectorsUV enhanced photodiodes (2)
Working RangeAutomatic scale change / Dynamic range 0 ng – 1500 ng Hg
Peak (W) -Energy consumption3000W
PrincipleSample Thermal Decomposition, Atomic Absorption
Typical Analysis Time5 minutes
Input pressure15 Psi (100 kpa)
Instrument controlExternal PC computer system
Power Supply110/220 VAC, 50/60 Hz
Light SourceLow pressure mercury lamp
Carrier gasOxygen
Sample treatmentDrying time Decomposition time Waiting time Adjustable from 1– 999 s 1– 999 s 1– 999 s
MethodUS/EPA 7473, ASTM D6722
CalibrationStandard solution or CRM
Number of standardsMinimum 2 (blank & high), maximum 33
Max. Sample Volume (Liquid)*1000 µl (ceramic boat), 1500 µl (nickel boat)
Max. Sample Weight (Solid)*1000 mg (ceramic boat), 1500 mg (nickel boat)
Standby (W)-Energy consumption<100W
FeaturesHigh Efficiency, Wide Application, Easy Operation, Minimum Analysis Cost
Number of samples70 with small or large boats
Hg wavelength253.65 nm
Sample typesLiquid or solid
Detection limit0.001 ng Hg
Repeatability<1.5 % @ 10 ng Hg
Peak flow300 ml/min
