Fly Ash Brick Making Machine

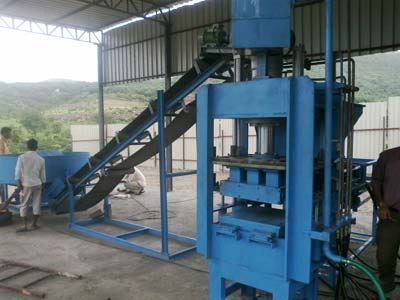

We are Manufacturer, Supplier of Fully Automatic Fly Ash Brick Making Machine (FAM-222). This machine has an output of 8 Bricks at one time. Engineered to perfection, the Fully Automatic Fly Ash Brick Making Machine (FAM- 222).comprises of sturdy vibrators, conveyors, pan mixers, etc. This model of Fully Automatic Fly Ash Brick Making Machine (FAM-222) has a production capacity of 10000 Bricks per shift .
TECHNICAL SPECIFICATION OF BRICK PLANT
SR. NO PARTICULARS DIMENSION
1 OVERALL DIMENSION 10 X 4.5 X 3.9 METER
2 PALLET SIZE 550 X 565 X 18 (MM )
3 BRICK PER STROKE (230 X 105 X 75 MM ) 8
4 FREQUANCY OF VIBRATER 75- 95 Hz
5 CYCLE TIME 20-25 SEC
6 INSTALLED CAPACITY Kw (H.P ) 25.96 Kw
7 BELT CONVEYOR 22 FOOT
8 PAN MIXER 350 KG – 02 NOS 1500 MM X 400 MM
9 HYDRAULIC TANK OIL CAPACITY 400 LITER
10 MAXIMUM EXCITATION FORCE 40 -45 KN
11 TONNAGE OF HYDRAULIC PRESSURE 100 TON
ELECTRIC EQUIPMENTS / MOTOR
SR NO PARTICULARS MAKE ( H.P )
1 HYDRAULIC MOTOR CROMPTON GREAVES 10 HP
2 MAIN PRESS VIBRATOR MOTOR CROMPTON GREAVES 3 HP
3 MATERIAL FEEDER VIBRATION CROMPTON GREAVES 2 HP
4 PALLATE FEEDER CROMPTON GREAVES 1 HP
5 CONVEYOR BELT MOTOR CROMPTON GREAVES 2 HP
6 PAN MIXER – 2 nos CROMPTON GREAVES 7.5+ 7.5 ( 15 H.P )
7 HYDRAULIC VALVE YUKEN
8 HYDRAULIC PUMP DOWTY / REXROTH
9 PLC AND HMI DELTA OR Schneider
10 ALL ELECTRIC ITEM IN PANEL BOARD DELTA OR Schneider
RAW MATERIAL
SR NO PARTICULARS UTILIZED RATIO SPECIFICATION
1 FLY ASH 50 % IN POWDER FORM
2 SAND 20 % SIEVED QUALITY â‰Â¤3MM SIZE
3 STONE DUST 20 % LESS THAN 4 MM IN SIZE
4 CEMENT 07 % OPC 53 GRADE
BRICK & BLOCK PRODUCTION CAPACITY WITH SIZES
SR NO PARTICULARS IMAGE PRODUCTION CAPACITY PCS / Hr
SIZES PCS/ MOULD
1 FLY ASH BRICK
230 X10 X75 MM 8 1440
2 FLY ASH BRICK WITHOUT FROG
230 X10 X75 MM 10 1800
3 I SHAPE PAVER BLOCK 200 X 165 X 60 MM 6 720
4 SOLID CONCRETE BLOCK
390 X 190 X 190 MM 3 450
6 HOLLOW CONCRETE BLOCK
390 X 190 X 190
