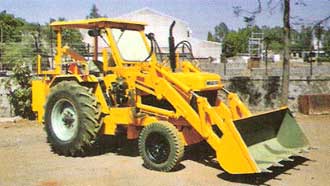

Front End Loader

We are instrumental in offering high performing Front End Loader that is known for its sturdy construction and high efficiency. This Front End Loader is operated hydraulically by compactly fitted double acting control valve and ram cylinder. The clients can avail Front End Loader at market leading prices.
Specifications

• Bucket Capacity : 0.5 Cubic meter
• Pay Load : 750 kg.
• Lifting Height : 3.2 meters
• Hydraulic Systems independent with pump capacity : 15/39 LPM
• Four Hydraulic Double acting cylinders
• Output per hour : 1000 c.ft. (i.e. 30 cubic meter)

Working Time

• Lifting Time to max. height : 8 seconds
• Dumping Time : 3 seconds
• Lowering Time : 6 seconds

Features

• Fabricated out of prime quality steel
• Robust in construction
• Heavy duty Front axle
• Bucket with replaceable spikes
• All pins are hardened and made out of alloy steel and pivoting in lubricated bronze bushing.
• Hydraulically operated through independent hydraulic circuit with double acting lifting and titling cylinders
• Hydraulic Pump, Directional Control Value, Flow Control Value, Pressure Relief Value etc.
• Hydraulic assisted steering (optional)

Suitable For

• Tractors of 50 HP and above
