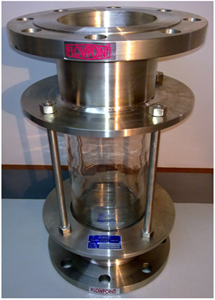

Full View Type Sight Flow Indicator

Full View Sight Glass (Sight Flow indicators) is used for monitoring flow in pipelines for a wide range of applications. Flow Point manufacturing Sight Glass suitable for various rugged industrial applications. These Sight Flow Indicators are bi-directional type and easy to install in any orientation. Sight Glass (Sight Flow Indicators) provides a quick, reliable and economical way to verify the flow of liquids through industrial process pipe lines.Flow Point Full view Type Sight Glass available with different length of glass from 4 (100mm) to 8 (200mm) long.

Flow Point Sight Glass (Sight Flow Indicators) has been designed with outstanding quality and the feature you need to streamline your operations. Full view types Sight Glass (Sight Flow Indicators) are widely used for corrosive chemicals, acids and colored liquids. Sight Glass (Sight Flow Indicators) are generally used in processes, where spot required to detect presence of media, or to visual inspect color, clarity, turbidity, or other critical characteristics.

Sight Glass can be installed vertically or horizontally in the middle of any kind of non transparent pipeline and are very convenient & easy to observe the flow from any direction.

Salient Features :

• Easy Maintenance
• Lower Cost
• Wide View Area to Inspect the Fluid
• Tempered Borosilicate glass standard
• Available in all most all M.O.C.
• Glass Length available from 100MM To 200MM
• Sizes Range from 15MM To 200MM
• Pressure Rating PN 6
• Design & Testing As Per Mfg. Standard
• End Connections as per ANSI B 16.5/BS 10 Table/DIN/IS 6392 Std

Material of Construction :

• • Body
  • Carbon Steel to IS 2062
  • AISI 304 (Stainless Steel 304)
  • AISI 316 (Stainless Steel 316)
  • AISI 304L (Stainless Steel 304L)
  • AISI 316L (Stainless Steel 316L)
• • Gasket
  • P.T.F.E. (Teflon ) / CAF
• • Glass
  • Tempered Borosilicate Glass
• • Fasteners
  • Carbon Steel
  • Stainless Steel 304 / 316
  • Stainless Steel 304L / 316L
