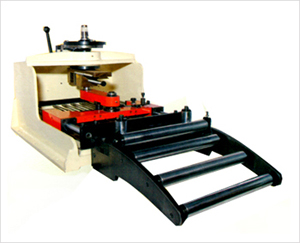

Gripper Feeder

Mechanical Gripper Feeder are perfect solutions for feeding strips on medium high speed pressure.
Round guides with Linear ball bushings.
Capability to mount to any type of press.
Transmission through bevel gear box and cardian shaft from the press.
Lubrication oiling by grease nipple.
Accuracy of +-0.025mm with mechanical pilot synchronisation
Easy setting of pitch length.
All adjustments are easily reachable.
Quick opening of the gripper for the strip insertion.
Release of the fixed gripper for die piloting in order to obtain & accurate positioning at high speed.
Adjustment for various thickness by means f knuckled knobs placed at the upper part of the feed.
Standard transmission for speeds uptill 300 strokes per minute including gear box, transmission shaft and rubber coupling.
Mounting stand bracket.
Cascade roll basket.
