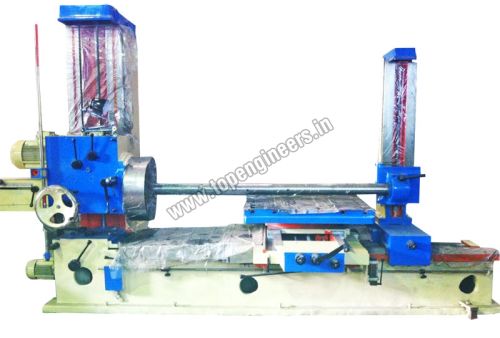

Our company has earned an enviable reputation in global market as a Manufacturer, Exporter and Supplier of quality Horizontal Boring Machine. Reliable and economical, this Horizontal Boring Machine is a versatile machine tool for all types of roughing & finishing operations within the range of boring, milling, drilling, reaming and facing. It is efficient in machining bores in various types of Machine Bodies & Gear Boxes, for surface milling and especially for large dia flange facing. High precision workmanship, sturdy & well proportionate design of castings, highpowered spindle & face plate drive along with wide range of spindle speeds & gear box feeds ensure high production of accurately machined parts. Its robust and massive construction guarantees to withstand fully all the working stresses. We offer this machine at market leading prices.
| Boring Size | 100 MM | 110 MM | 125 MM | 130 MM | 150 MM |
|---|---|---|---|---|---|
| Alloy steel work spindle Hardened & Ground-Dia | 100 MM | 110 MM | 125 MM | 130 MM | 150 MM |
| Morse Taper number | 6 | 6 | 6 | 6 | 6 |
| Max longitudinal movement of working spindle ( z-Axis travel ) | 510 MM | 510 MM | 600 MM | 600 MM | 600 MM |
| Max height of spindle Axis from table surface ( Y – axis travel ) | 1000 MM | 1100 MM | 1200 MM | 1500 MM | 1500 MM |
| Min height of spindle Axis form table surface | 30 MM | 30 MM | 30 MM | 30 MM | 30 MM |
| Max cross movement of the work table ( x – axis travel ) | 1100 MM | 1300 MM | 1500 MM | 2000 MM | 2000 MM |
| Max longitudinal travel of work table ( W – axis travel ) | 1775 MM | 1925 MM | 2050 MM | 2800 MM | 2950 MM |
| Max. Distance between stay bearing & facing head | 2690 mm | 2800 MM | 2950 MM | 3600 MM | 3950 MM |
| Dimensions of the Rotary Table | 1030 x 1375 | 1100 x 1450 | 1220 X 1675 | 1320 X 1775 | 1500 X 2000 |
| Detechable facing head diameter | 555 mm | 600 MM | 650 MM | 650 MM | 700 MM |
| No of spindle speeds Transversal table travel feeds | 9 | 9 | 9 | 9 | 9 |
| Range of spindle speeds R.P.M | 15 to 250 | 15 to 250 | 15 to 250 | 15 to 250 | 15 to 250 |
| Long table travel feeds ( one rapid) | 10 | 10 | 10 | 10 | 10 |
| Cross table travel feeds | 10 | 10 | 10 | 10 | 10 |
| Rotary travel feeds | 10 | 10 | 10 | 10 | 10 |
| Vertical head stock travel feed | 4 | 4 | 10 | 10 | 10 |
| Approximate weight in kgs | 10000 | 11000 | 16000 | 17000 | 19000 |
