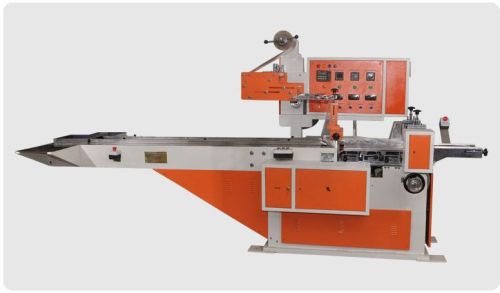

Horizontal Flow Wrap Machine can pack a variety of solid products of different shapes & sizes with all types of heat sealable films and laminates. These machines are extensively used to pack Appalams, Rusks, Biscuits, bun, chocolate bars, Ice Cream Bars, Cakes, groundnut chikkies, cotton & Bandage Roles, Scrub Pads, Noodles etc.
SpecificationsÂ
Feeding Style: Manual / Auto
Packing Style: Pillow Type Centre Seal
Product Size : Width 30 mm to 120 mm, Length 30 mm to 150 mm, Height 05 mm to 60 mm
Packing film size: width 100 mm to 375 mm,Â
Cut length 75 mm to 240 mm
Production Output: Approx 30 to 90 Packs / minutes
Packing Material: all type of laminated (BOPP, LD Polyester, Aluminum foil)
Motor:1Hp 3Phase 440V, Power: 3kw, Heater: 50v, 2000watts
Machine Dimension: Length 3700 mm, Width 1200 mm, Height 1800 mm, Machine Weight: 800 kg Approx
Features
Â
Cantilever construction that provides for easy cleaning and electrical components
Left to right operating direction
Rotary cross sealing jaws
Self-centering film reel holder with a operated brake system
Adjustable film folding box
For every cut length we should change timing gear wheel
Eye mark setting should be done for every cut length
If sensor misses the eye mark sensation correction should be done manually by using the forward button or else the eye mark setting should be done from the beginning.
