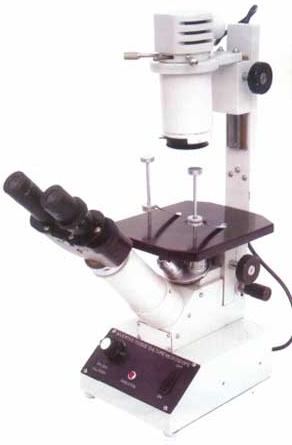

Suresh Inverted Tissue Culture Microscopes

We are known as the foremost Supplier of the quality Inverted Tissue Culture Microscope. Our Inverted Tissue Culture Microscope has been designed for examination of Tissue Cultures, Plankton, Living Protozoa and similar specimens in natural form in the petri dish, culture bottle, test tube, or flask / vessel in which they grow. Our Inverted Tissue Culture Microscope is used in vast applications such as in Cancer Research, Sirolegy, Urology, Histology, Virology, Parasitology, Microbiology areas of air and water pollution. It can also be used for phase contrast Microscopy to impart normally colorless specimen with enough contrast to permit clear examination of living bacteria, cells and tissues. Large and sturdy base provides stability to the microscope and houses the solid state transformer, the working of 6 volts 20 watts illuminator. Stage Oversize square plain stage 180mm x 150mm. Two stage clips are provided in drilled holes to accommodate specimen up to 40mm. A removable central insert gives 60mm diameter stage aperture. CO-axial fixed / detachable mechanical stage can be also provided. Illumination Brilliant illumination based on Koehler system is provided by a post mounted high intensity 6volts 20 watts illuminator, powered from a base built - in variable intensity controlled transformer. The lamp house incorporating a focusable condenser lens with iris-diaphragm, filter carrier, is mounted on pole on which it can be positioned up or down to accommodate any type of culture- vessel in a vertical range of 140mm. Working distance of condenser lens is 23 mm. Focusing Two large focus control knobs located low down at a convenient position assure accurate focusing. The back-lash free Rack and Pinion mechanism has 18 mm range. Tension is instantly adjustable. Fine focusing Highly sensitive reading to .002mm is provided. Nose piece Quadrule revolving turret nosepiece with positive click stops. Binocular The Binocular observation tube assembled from coated prisms is 45^o inclined with eye point position 320mm raised above the desk surface for greater comfort to the observer. It is interchangeable with straight tube. Trinocular Head is also available. Objectives 5x, 10x LWD 20x and LWD 40x, specially designed perfect flat - field objectives with long working distance (LWD) corrected for bottom thickness of bottles, flasks or chambers. Eyepieces WF 10x (paired) coated with eye-guard, for genuine wide field observation. Filter Blue Weight Approximately 12 Kg Optional Accessories

• Phase contrast equipment with 5x - 10x - 20x objectives.
• C. C. T. V. camera attachment.
• Co - axial coarse fine & focusing knobs.
• SLR camera attachment.
