Metal Deck Forming Machine, Brand Name : Zhongyuan

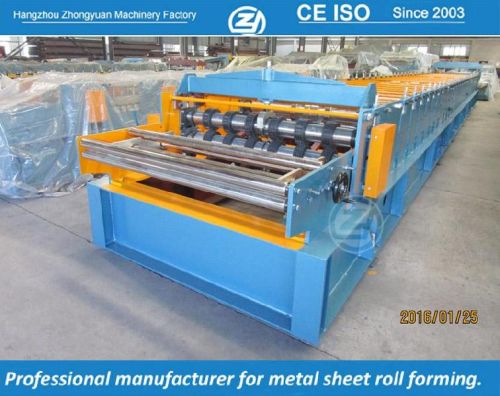

Metal deck forming machine
technical data of decking roll forming machine
suitable material q235 color steel sheet;0.8-1.2mm,
forming speed about 18-20mmin
power requirement main motor power: 11x2 kw(depend on final design)
  hydraulic station power: 5.5kw(depend on final design)
material of forming rollers no.45 steel, plated with chrome on surface.
Material of cutter  cr12 mould steel with quench treatment, hrc58-60
material of shaft high quality 45# steel with heat treatment.
     roller grinder milling.
Shaft diameter 82mm
controlling system mitsubishi plc & converter
total weight of machine about 16500kgs
machine’s size about 26m×1.8m× 1.5m (depend on final design)
shipping 1x40gp and 1x20gp containers can load one machine
product application:
the metal deck produced by floor deck forming machine is used as decking of building; it has high strength with big wave length. It adheres well to concrete. Used on high building, it not only saves steel mold plate, but also reduces the weight. With the same bearing capacity, it economized steel and cuts down investment accordingly.
