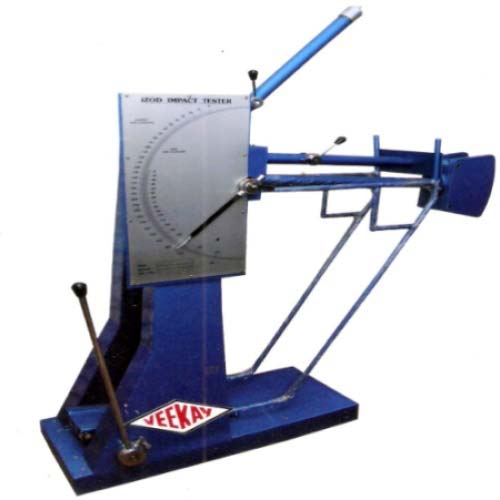

The company is considered as one of the prominent Manufacturers, Exporters and Suppliers of Pendulum Impact Testing Machine. Our Pendulum Impact Testing Machine is used for conducting Charpy, 1Z0D and Impact Tension tests. These test methods adhere to IS 1499-959, IS 1757-1961 and BS 131 part 2 % 3, IS 1598-1960, BS 131 (Part 1) and ASTM E 32-47T. The variation between the height of the drop before rupture and height of the rise after rupture illustrates the impact of energy absorbed by the Pendulum Impact Testing Machine and the result is reflected on the dial scale.  Features Of Our Pendulum Impact Testing Machine
| Test Type | Charpy Test | Izod Test |
|---|---|---|
| Pendulum drop angle | 140o | 85o |
| Pendulum effective weight | 20.59 kgs | 21.79 kgs |
| Pendulum speed | 5.3465 m/sec | 3.857 m/sec |
| Pendulum impact energy | 30 kgM ( 300 J ) | 16.4 kgM ( 164 J ) |
| Min. graduation | 0.2 kgM ( 2 J ) | 0.2 kgM ( 2 J ) |
| Distance of axis of hammer rotation and centre of test piece/point of test piece hit by hammer | 825 mm | 825 mm |
| Max. permissible loss by friction X windage | 0.5% Of max. impact energy | 0.5% Of max. impact energy |
