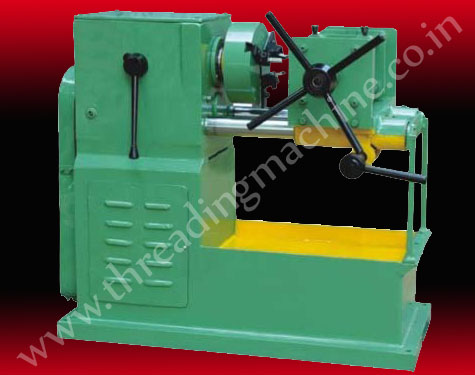

Pipe End Facing Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Pipe End Facing Machine is used for the purpose of Chamfering and Deburring of the Pipe before Galvanizing and Threading Operation. Pipe is chamfered from the Outer, Inner and Front face by Three different tools. The Pipe remains Stationery and the Facing Head rotates. Slide Travels towards Facing Head for Chamfering manually. The Machine mainly consists of the following: - Bed Head Stock Clamping

View More Details

Send Enquiry

Company Information

Industrial Machinery Corporation

Focal Point, Ludhiana, Punjab

View Number

Member Since 8 Years
Nature of Business Retailer
GST No. 03BXNPS2799K1ZN

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Specifications:

Model No.	IMC-EM- 1/2" to 1.1/2"	IMC-BM-1/2" to 4"
Min. Dia of Pipe to be Chamfered	1/2" N.B. Pipe	1/2"
Max. Dia of Pipe to be Chamfered	1.1/2"	4"
Cutting Tools Required (HSS 10% Cobalt)	3/8"	3/8"
Number of Spindle Speeds	Two nos.	Four nos.
Range of Spindle Speeds	37 to 64 RPM	68 to 180 RPM
Main Motor	3 H.P. 1440 RPM	3 H.P. 1440 RPM
Approx. Wt. of the Machine	750 Kgs.	1100 Kgs.
