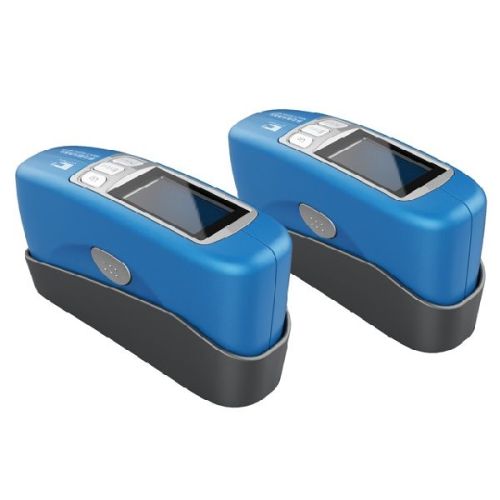

Portable Three Angles Digital Gloss Meter, Brand Name : CHNSpec

Gloss meters are mainly used in the surface gloss measurement for paint, plastic, metal, ceramics, building materials and so on. Our gloss meter conform to the din 67530, iso 2813, astm d 523, jis z8741, bs 3900 part d5, jjg696 standards and so on.
Introduction for digital gloss meter
1).high precision
our gloss meter adopts sensor from japan, and processor chip from the us to ensure highly precise of the measured data.our gloss meters conform to jjg 696 standard for first class gloss meters. Every machine has metrology accreditation certificate from state key laboratory of modern metrology and testing instruments and engineering center of the ministry of education in china.
2).super stability (patent right no.: zl2012201796876)
every gloss meter made by us has done the following test:
412 calibration tests;
43200 stability tests;
110 hours of accelerated aging test;
17000 vibration test.
3).large battery capacity
we fully utilized every space of the device and specially custom made advanced high density lithium battery in 3000mah , which ensures continuous testing for 54300 times.
4).digital gloss meter application example
the digital gloss meter could be widely used for testing the glossiness of print, ink, electroplate, plastic, tile, metal products, ceramics, auto accessories, furniture, leather, paper,etc.
5).glossmeter technical data
model:cs-380
test angle:20°,60°,85°
test light spot(mm):20°:10*10 60°:9*15 85°:5*38
test range: 20°:0-2000gu; 60°:0-1000gu 85°:0-160gu
resolution: 0.1gu
repeatability: 0-100gu:0.2gu 100-2000gu:0.2%gu
accuracy:conform to jjg 696 standard for first class gloss meter
test time:less than 1s
data storage:100 standard samples; 10000 test samples
size(mm):165*51*77 (l*w*h)
weight:about 400g
language:chinese and english
battery capacity:3000mah lithium battery
port:usb
