Automatic Electric R38mm Pillar Drilling Machine Manufacturer in Bhavnagar Gujarat India

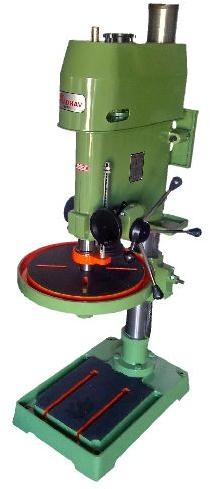

Automatic Electric R38mm Pillar Drilling Machine, Weight : 100-200kg

Minimum Order Quantity : 1 Piece(s)
Sold By : Vandana Industries

Product Specifications

Driven TypeElectric
Automatic GradeAutomatic
Power3-6kw, 1-3kw
Country of Origin380V, 220V
Availability100-200kg
Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

Our company is a reputed Manufacturer and Supplier of R38MM Pillar Drilling Machines in Bhavnagar. We produce sturdy and high-quality R38MM Pillar Drilling Machines from raw materials like cast iron and EN bar. These R38MM Pillar Drilling Machines are used for production as well as tool room jobs. The R38MM Pillar Drilling Machines are very popular Drilling Machines and are used for drilling, boring, reaming and honing in steel, cast iron and many other materials.

Specifications

Drilling Capacity	38mm
Tapping Capacity	32mm
Column Diameter	106mm
Max. Dist. Spindle Nose to Table	600mm
Max. Dist. Spindle Nose to Base	1000mm
Dist. From Spindle Center to Pillar Surface	306mm
Taper in Spindle	MT-4
Spindle Travel	255mm
No. of Speed	8
Range of Speed	79 to 2024 rpm
Tilting Working Table	Fixed
Table Size	380x380mm
Base Size (Machined Area)	400x350mm
Over all Base Size	660x440mm
Over all Height with Guard	1790mm
V-Belt Section	B-60'

Note :

All dimensions are in mm.
Above overall dimensions are approximate.
Detail and Speciﬁcation are subject to modification and improvement without prior notic

Download

Download Detail File : Click Here

Additional Information

Delivery Time3-4 weeks
