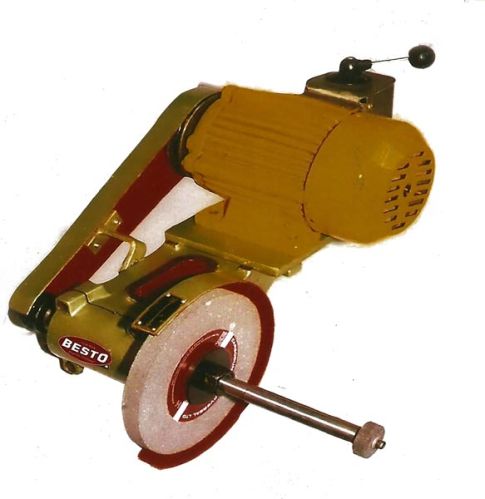

Contact SupplierTool Post Grinders are specially suited for use on lathe for cylindrical, internal and external grinding. Other operations like, radius grinding, face grinding, surface grinding and many more such operations could be performed economically by developing proper set ups and mounting on lathes, shapers and planner machines. The spindle of Tool Post Grinders is made of alloy steel hardened and precision ground. The spindle is supported by precision angular contact bearing to take radial and axial loads. Tool Post Grinders are delivered complete with sturdy guards, pulleys belts and grinding wheel for ready use. Technical Specifications Size Grinding Wheel Motors 2800 RPM Spindle Speed RPM Internal Grinding Depth Spindle Pully Diameter Motor Pully Diameter External Internal External Internal External Internal External Internal6"6" x ¾ x 1"1 ½ x 38 x ¼"1 ½ H.P.420080003 ½"2"2"3" 5 ½"8"8" x ¾" x 1"1 ½ x 38 x ¼"1 H.P.310080004"2"2"2 ¼"5 ½"10"10" x 1" x 1"1 ½ x 38 x ¼"2 H.P.280080004"3 ¼"3 ¼"3 ¼"6 ½"12"12" x 1" x 1"1 ½ x 38 x ¼"2 H.P.210080004"3 ¼"3 ¼"2 ½"6 ½"16"16" x 1½" x 1½" -3 H.P.1600 - -3 ½" -4"
