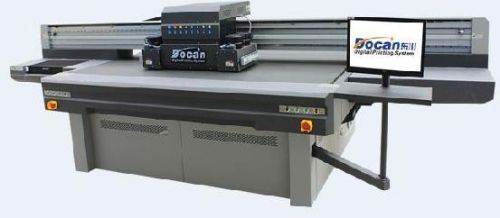

UV Flatbed Printer

High resolution and high-quality piezo electric printhead can achieve excellent production performance and vivid bright colors
4 color printing: Y M C K
5 color printing: Y M C K+W
Excluding the use of VOC (Volatile Organic Compounds) in the UV curable ink. The ink is environmental friendly and no smell
With advanced Automatic Height Detector which can detect the material thickness and find a good height position for best quality printing
Drawer-type UV lamp cassette makes it easy to replace the UV lamp
Equipped with Japanses THK mute guide rail
The white ink catridge is with the automatic stiring and circulation system, which avoids the clog of the White printhead.
Easy operation menu. User-friendly

• Model : H1600

• Catagory: UV Flatbed Printer

• Printing Size : 2.44 x 1.22m

• Print Technology : drop-on-demand piezo electric inkjet

• Printhead : Kyocera KJ4A-3.5PL

• Printhead Control : Printhead temperature and voltage are adjustable in software

• Ink Type : UV curable Ink

• Ink Reservoir : Refillable on the fly while printing/2000ml

• Rip Software: Photo Print/ONYX/Caldera

• Color Management : ICC based color, curves adjustment, density adjustment

• File Format : Tiff, Jpeg, Postscript, eps, pdf

• Media Thickness : 1-100mm

• Printhead QTY :

  • Kyocera KJ4A-3.5PL

  • 2-6pcs

• Resolution :

  • Kyocera KJ4A-3.5PL

  • 604 X 1800DPI

• Printing Speed :

  • Kyocera KJ4A-3.5PL

  • 2 row heads 6 pass - 40 Square / Hour

  • 2 row heads 8 pass - 30 Square / Hour

• Print Colors 4 colors (CMYK), White

• Drying System UV Lamp with three power levels

• Rigid materials: glass, acrylic, PVC foam board, KT board, Wood, WPC, Metal panels,ceramic tiles, MDF, etc.

• 3 years (use Docan ink)

• Dimensions : 4.42 x 2.16 x 1.62m

• Weight : 1680kg

• Power Supply : 50/60Hz 220V(10%)>30A

• Operation Environment : 20°C to 28°C

• Humidity 40% to 60%

• one year
