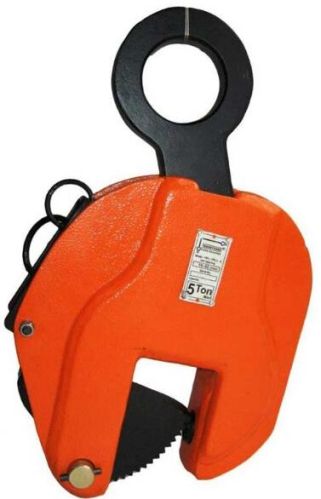

Vertical Plate Lifting Clamp Remote Release

Sold By : Ferreterro India Pvt. Ltd.

Product Specifications

MaterialM.S and high strength steel
Jaw openingranges from 0 to 90 mm.
Capacity1, 2, 3, 5, 8, 10 and 12 tons.
Things to RememberWeight of plate to lift.Hardness of plate to lift.Type of material to lift.Position of plate to lift
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader

Preferred Buyer From : All over the world

Model	WLL (ton)	Jaw opening (mm)	A	B	C	D	E	F	G	H	Weight (kg)
VPLC-1	1	0-16	55	12	16	45	40	140	60	155	4.54Kg
VPLC-2	2	0-22	54	16	23	55	55	180	80	190	7.19Kg
VPLC-3	3	5-30	72	20	25	60	58	190	100	230	9.34Kg
VPLC-5	5	16-50	82	20	80	65	58	212	117	255	12.36Kg
VPLC-8	8	40-80	118	20	40	80	80	295	145	355	32.12Kg
VPLC-10	10	45-85	120	20	42	85	80	300	168	385	36.50Kg
VPLC-12	12	50-90	120	20	45	90	80	325	180	400	39.90Kg
