Features :

•  Pressure Ranges from -0.9 up to 1000 bar
•  Wide ranges 0 to 350mbar, 0 to 500 pa, -0.9 to 2 bar, -0.9 to 35 bar, 0 to 350 bar, 0 to 700 bar, 0 to 1000 bar
• Absolute , Differential & gauge type available on request
• Available in both Air, water & Oil medium
• Different variety of Pneumatic & Hydraulic pumps available based on Medium & range requirements
• 2.8” 128 x 64 Dots COG Graphic LCD Display
•  High bright white LED backlight
•  6 digit selectable resolution
•  Better stability & repeatability
• 3 function keys & 4 navigation keys for easy operation
• Optional PC interface with semi Automatic calibration software
• Easy one touch zero
• High resolution RTD-PT 100 & mAmps measure inputs
• Compact size & Rugged

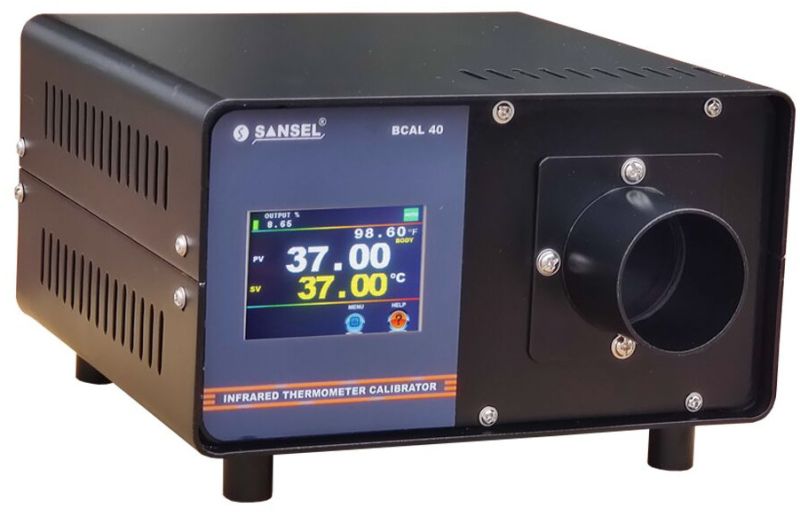

SANSEL Model BCAL 40, Black body Calibrator is used to measure the accuracy and performance of non-contact fever detection systems, like medical thermometer & image scanner. Now it is being used in relation to COVID-19 (corona virus). This Blackbody Source meets the demand for a simple cost effective solution but high accurate device for the calibration of thermal imager and IR thermometers that are used at temperature around that of the human body.

Unlike Heat only devices, This model uses a solid state Heat & cool Technology, so that this can be generate both Heat and Cool. This having benefits to maintain the block temperature in different ambient temperature.

BCAL 40 using True colour 3.5” Touch screen display, easy to read multi parameter at the same time like Block temperature, Set temperature, Control status, Output % level, range of the equipment, displays both °C & °F and two Touch screen soft keys are used for settings and one more advantage of help menu to guide the operating Instruction of the equipment. Hence no need of hard copy of Instruction manual.

Specifications:

• Model: BCAL 40
• Display: 3.5 inch True TFT LCD Display with Touch screen
• Temperature Range: Body mode: 20 to 50°C / 68 to 122°F,   Surface mode: 0 to 100°C / 32 to 212°F
• Resolution : 0.01°C
• Stability: ± 0.03°C
• Uniformity: ± 0.3°C
• Stabilization Time: 10 minutes
• Temperature readout: °C & °F at a time
• Heating time: 10 mins (Amb. To 50°C )
• Power supply: 90 to 260V AC/DC / 50/60Hz
• Power Consumption: Less than 100 VA
• Aperture area: 25mm
• Emissivity: 0.950
• Overall Dimension: 210 x 210 x 140 (L x B x H)(Approx.)
• Instrument Weight: 3.7 kg

SANSEL Model BCAL 40, Black body Calibrator is used to measure the accuracy and performance of non-contact fever detection systems, like medical thermometer & image scanner. Now it is being used in relation to COVID-19 (corana virus). This Blackbody Source meets the demand for a simple cost effective solution but high accurate device for the calibration of thermal imager and IR thermometers that are used at temperature around that of the human body. Unlike Heat only devices, This model uses a solid state Heat & cool Technology, so that this can be generate both Heat and Cool. This having benefits to maintain the block temperature in different ambient temperature.

Features :

• 3.5 inch True TFT display with touch screen
• Range from 20 to 50°C / 68 to 122°F @ Body mode
• Range from 0 to 100°C / 32 to 212°F @ Surface mode @ Amb. 25°C
• Universal wide range power supply 90 to 260V AC / DC
• Extension tube gives better uniformity and avoid losses due to ambient temperature and air movement.
• Indicates both °C & °F at a time
• Stable to ± 0.03°C
• Accurate better than ± 0.3 °C
• Portable, Rugged & Onsite carryable

Technical Details

• Temperature Range Body Mode : 20 to 50 °C / 68 to 122 °F
• Surface Mode : 0 to 100 °C / 32 to 212 °F
• Resolution 0.01 °C
• Stability ± 0.03 °C
• Display 3.5 inch True TFT display with touch screen
• Accuracy ± 0.3 °C
• Temperature Read out °C & °F at a time
• Heating time 10 minutes (Amb. to 50 °C)
• Stabilization time 10 minutes
• Aperture area 25 mm
• Emissivity 0.950
• Power supply 90 to 260V AC / DC / 50/60 Hz
• Power Consumption less than 100 VA
• Overall Dimension in mm 210 x 210 x 140 (L x B x H)(Approx.)
• Instrument Weight 3.7 kg

Accessories :

• Basic Instrument
• Small extension tube
• Large extension tube
• Carry bag
• Traceable calibration certificate
• Spare fuses
• Instruction manual
• Mains card

Optional :

• Carrying case

SANSEL offers are extremely versatile Indicators that can be used for a wide variety of applications.These Universal indicator offer high precision 6 digit resolution & extreme reliability and low cost for Process measurement. PI541A is a Microprocessor based instrumentation ensures accurate readings for all Linear Parameters, RTD, ohms & different type of Thermocouples. A number of programmable features including In-line calibration are standard. PI541A can offer relay outputs for signals exceeding set points, optional Programmable 4 -20mA or 0 - 10V DC Isolated output and also Optional RS 485 (2 wire ) MODBUS protocol output is provided .

Features

• 6 Digit 7 segment red LED display
• High Accuracy
• Compact Size
• 24 Bit ADC Resolution
• Wide Selectable Range between -199999 to 199999 counts
• Selectable Inputs RTD, all types of thermocouples, mA, mV, Voltage & ohms.
• Easy Field Configurable with Front Key Calibration
• No Hardware Selection for the Input Signals
• Optional Opto Isolated Re-Transmission Output
• Optional RS 485 (2 wire) MODBUS protocol
• 24V DC External Sensor Excitation Supply
• Programmable Decimal Point & Display Noise Filter
• Universal Supply Voltage 90 to 270 AC / DC

Specifications :

• Display 6 Digit 7 segment red LED
• Inputs 0 - 20 mA, 0 to 75 mV, -10 to 10 V DC, 0 - 400 Ù (H & L Limit Programmable)
• RTD - PT 100, Thermocouple - J, K, R, S, T, B, N, E
• Range* Analog - - 199999 to 199999 (H & L Limit Programmable)
• RTD &TC - RTD - PT 100 (-199 to 850°C / 327 to 1562°F)
• RTD - PT 1000 (-50 to 400°C / -58 to 752°F)
• TC - J (- 200 to 200°C / -328.0 to 2192°F)
• TC - K (- 200 to 1372°C / -327 to 2501°F)
• TC - R (- 40 to 1768°C / -40 to 3214°F)
• TC - S (- 40 to 1768°C / -40 to 3214°F)
• TC - T (- 200 to 400°C / -328 to 752°F)
• TC - B (300 to 1820°C / 572 to 3308°F)
• TC - N (-200 to 1300°C / -327 to 2372°F)
• TC - E ( -200 to 999 °C / -327 to 1832°F)
• Resolution 0.0001 / 0.001 / 0.01 / 0.1 / 1 Selectable for Analog
• 0.01 RTD - PT 100 and 0.1 for TC
• Accuracy ± 0.01 % of FS for Analog , ± 2 °C for TC and better than ± 0.2°C for RTD
• Unit Selection °C / °F (for RTD & TC inputs)
• Linearization Programmable custom Linearisation provided (1 - 21 points)
• Input signal filter 1 - 100 % user configurable
• Cold junction compensation Automatic inbuilt ‘ CJC ’ is provided
• Relay Output(*Alarm optional) 2 Relay(5A rated) with Four Relay Status Selection, Hysterisis, Cyclic Delay
• Alarm setting Front key settable
• Alarm indication Two LED on front panel
• Re Transmission**(optional) Opto Isolated Analog Output 4 - 20 mA or 0 - 10V DC for process variable
• PC Communication RS 485 (2 wire) with MODBUS protocol
• Sensor excitation Supply 24 V DC ±10% @ 100 mA
• Operating Environment 0 - 50ºC / 5 to 95 % RH Non Condensing
• Front panel IP 65 protection
• Power Supply 90 to 270 V AC / DC / 50 / 60 Hz
• Over All Dimension 48(H) X 96(W) X 110(D) mm
• Cut out Dimension 44(H) X 90(W) mm
• Housing Panel Mountable ABC Plastic
• Weight 250 grams (Approx.)

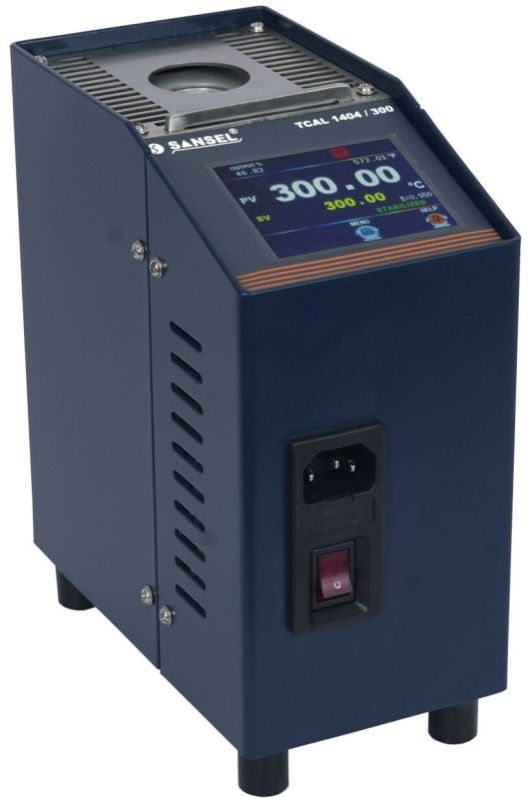

It is one of the smallest dry block with rich features and is highly competitive in price. SANSEL Model TCAL 1404/300, (Dry Block Miniature Temperature Calibrator) sets a new benchmark in temperature calibration with advanced features that deliver unmatched precision, ease of use, and operational stability. Temperature range of the TCAL 1404/300 covers from Amb. +5 to 300C. Our Drywell Calibrators are ideally suited for fast calibration in process industries to calibrate Thermocouple, RTD, Indicator with sensors & transmitters with sensors, this compact yet powerful calibrator is designed to meet the stringent demands of todays laboratories and field operations.

Specifications:

Model TCAL: 1404/300

Display: 2.8" True TFT with Touch screen

Temperature Range: Amb. +5 to 300C

Radial uniformity (Better than): 0.03C

Resolution: 0.01 C

Stability: 0.04 C

Temperature  readout: C

Heating time: Amb to 300-->23min

Cooling time: 300 to 50 -->30 min

Stabilization time: 15 mins

Well Dimension (dia. x height): 20 x 100 mm

Well immersion depth: 90 mm

Standard well holes in mm: 6.5 x 2nos

Power supply 230V AC 10% / 50Hz (Optional 110V AC)

Power consumption 250 w

Overall Dimension in mm 170 x 95 x 183 mm

Instrument Weight 2.75 Kg

We are a leading service provider for calibration of various types of parameters in all industries and our lab is accredited by (NABL)National Accreditation Board for Testing and Calibration laboratories from Chennai, Tamil Nadu, India.

Voltage : 1 mV to 1000 V AC/DCCurrent : 10 µA to 1000 A AC/DC
TC, RTD : PT-100, J, K, R, S, T, E, B, NResistance : 1 ohm to 100 G ohmFrequency : 1 Hz to 10 MHzCapacitance : 10 nF to 1 µF

Type of Instruments CalibratedMulti Product CalibratorMulti Function CalibratorDigital MultimeterFrequency CounterSignal GeneratorDecade Resistance BoxMeggarPower SuppliesAnalog Voltmeter/AmmeterDigital Voltmeter/AmmeterAC/DC Clamp meterTemperature Indicator/controllerI/P, P/I ConvertorValve PositionerProcess Flow IndicatorLCR MeterProcess Flow Totalizer, etc.,
High Voltage 1 kV to 30 kV

Type of Instruments Calibrated
AC/DC High Voltage sourceTimer 1s to 99999s

Type of Instruments Calibrated
Digital TimerAnalog TimerStop Watch, etc., Note: Price May vary based on quantity and instruments
