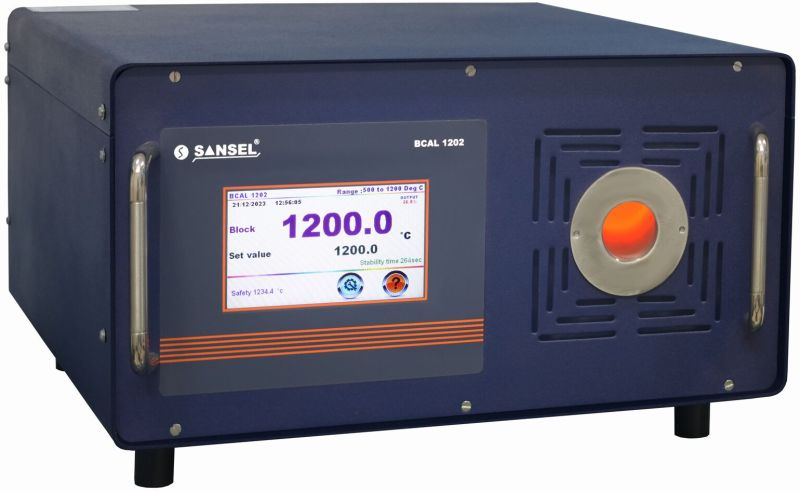

SANSEL Model BCAL 1202, Black body Calibrator is used to measure the accuracy and performance of non-contact Thermometers. Infra red thermometer & online pyrometer calibration is performed by comparison of the temperature measured by UUC and target temperature indicated by the calibrator or using standard pyrometer.

Focus the Unit Under Calibration (UUC) to be Calibrate to the target point given in BCAL 1202. Set the Temperature from the Touch screen display. Both True and set Temperature can be read. When Stabilization Occurs, Simply Read the Temperature and re-Calibrate the UUC.

Specifications:

• Model : BCAL 1202
• Display : 4.3 inch True TFT DISPLAY with touch screen
• Temperature Range : 500 to 1200C
• Resolution : 0.1 C
• Stability : 0.2 C
• Radial Uniformity : Better than 1% of reading
• Temperature Read out : C
• Heating time : 60 min (Amb. to 1200 C)
• Cooling time : 120 min (1200 to 100 C)
• Stabilization time : 30 minutes
• Aperture area : 25 mm
• Emissivity : 0.950
• Power supply : 230V AC 10% / 50Hz (Optional 110V AC)
• Power Consumption : 2200 VA
• Overall Dimension in mm : 350 x 352 x 210 (L x B x H)(Approx.)
• Instrument Weight : 12 kg(without carrying case)(Approx.)

The RPMC 1700 Series is high precision Tachometer calibrator, generates true reference rotation per minute (RPM). This calibrator uses “German technology” with high speed motor, high precision encoder and adoption of a new power full 32 bit CPU in control drive, featuring automated gain tuning function, stability, stable stop, rugged in use and many more.

Due to it’s light weight and rugged Aluminium enclosure, it is suitable for in-house and on-site calibration of contact / non contact Tachometer, Tacho coil, Tacho generator, RPM indicator, RPM transmitter, Speedo meter, Proximity sensor, Stroboscope, etc., .

Features:

• 7” True colour TFT display with Touch screen
• Low noise
• Quick settling time
• Better stability
• Any odd value is settable for both contact & Non - contact RPM
• High resolution
• Ultra stable motor with high precision encoder and drive
• Direct drive shaft (there is no gear)
• Compact size

Specifications:

• Model : RPMC 1700 - 2A
• Control Range :Contact : 0 to 6000 RPM Non Contact : 0 to 1, 02, 000 RPM
• Resolution : 0.1 RPM
• Display Stability : ± 0.1 RPM (for both Contact & Non Contact)
• Accuracy : Contact : ± 0.3 RPM, Non Contact : ± 5 RPM
• Display : 4.3” True colour TFT LCD Display with Touch screen
• Stability Time : Within 5 seconds
• Within 5 seconds : < 50dB
• Motor : Ultra stable motor with high resolution Encoder & Drive
• Power supply : 230V AC ± 10% / 50Hz (Optional 110V AC)
• Power Consumption : 750 VA
• Outer Enclosure Construction : Aluminium Anodised
• Overall Dimension : 260mm L x 440mm W x 230mm H (Approx)
• Instrument Weight : 13 kg  (Approx.)

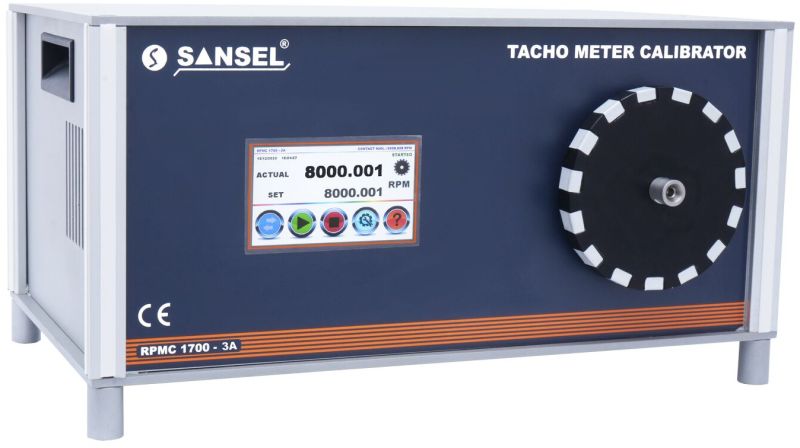

The RPMC 1700 Series is high precision Tachometer calibrator, generates true reference rotation per minute (RPM). This calibrator uses “German technology” with high speed motor, high precision encoder and adoption of a new power full 32 bit CPU in control drive, featuring automated gain tuning function, stability, stable stop, rugged in use and many more.

Due to it’s light weight and rugged Aluminium enclosure, it is suitable for in-house and on-site calibration of contact / non contact Tachometer, Tacho coil, Tacho generator, RPM indicator, RPM transmitter, Speedo meter, Proximity sensor, Stroboscope, etc., .

Features:

• 7” True colour TFT display with Touch screen
• Low noise
• Quick settling time
• Better stability
• Any odd value is settable for both contact & Non - contact RPM
• High resolution
• Ultra stable motor with high precision encoder and drive
• Direct drive shaft (there is no gear)
• Compact size

Specifications:

• Model : RPMC 1700 - 3A
• Control Range :Contact : 0 to 8000 RPM Non Contact : 0 to 1, 20, 000 RPM
• Resolution : 0.001 RPM
• Display Stability : Contact : ± 0.002 RPM, Non Contact : ± 0.01 RPM
• Stability : Contact : ± 0.1 RPM, Non Contact : ± 2 RPM
• Accuracy : Contact : ± 0.2 RPM, Non Contact : ± 5 RPM
• Display : 7” True colour TFT LCD Display with Touch screen
• Stability Time : Within 5 seconds
• Within 5 seconds : < 50dB
• Noise level : < 50dB
• Motor : Ultra stable motor with high resolution Encoder & Drive
• Power supply : 230V AC ± 10% / 50Hz (Optional 110V AC)
• Power Consumption : 750 VA
• Outer Enclosure Construction : Aluminium Anodised
• Overall Dimension : 260mm L x 440mm W x 230mm H (Approx.)
• Instrument Weight :13 kg(Approx.)

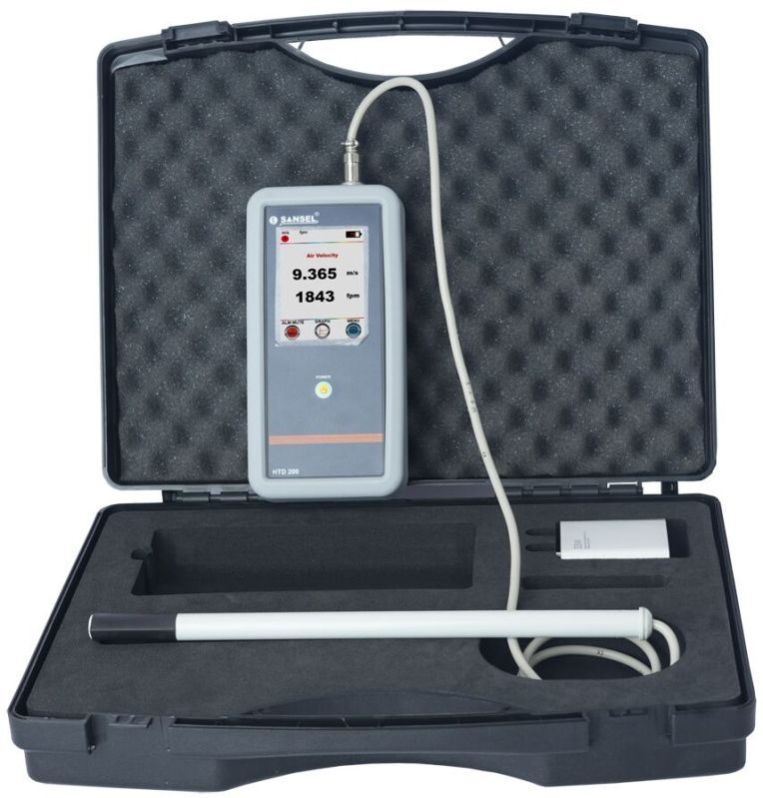

• Measurement Range: 0-1 m/s & 197 fpm, 0-2 m/s & 394 fpm, 0-5 m/s & 984 fpm, 0-10 m/s & 1967 fpm, 0-20 m/s & 3937 fpm (any once factory Presettable)
• Resolution: 0.01 m/s & 1 fpm
• Accuracy: ± 5% of Full Scale
• Display: 2.8” True Colour TFT with Touch Screen
• Application Environment Range: -10 to 60 °C ; 0 to 100% RH (non condensed)
• Storage Environment Range: -10 to 45 °C ; 10 to 90% RH
• Display Refresh Rate: 1 second (typical)
• Data Logging Interval: 1 sec to 24 Hours (user selectable)
• Data download: Via USB type-C to PC software (Sansel-Soft-01)
• Alarm: Audible & Visible, user-settable high & low alarms
• Calibration: 2 point Calibration feature available
• Touch sound: On / Off option available
• Battery charging port: USB C-type
• Backlight Time Interval: Adjustable from OFF to 59 mins : 59 secs
• Brightness adjustment: 10% to 100% (user adjustable)
• Integrated battery: 3.7 V / 10, 000 mAh rechargeable Li-ion battery
• Housing Material: ABS with anti-slip grip silicon cover
• Protection Class: IP40
• Dimension ( L x B x H): 35 x 80 x 165 mm
• Instrument Weight: 560 g (Approx.)

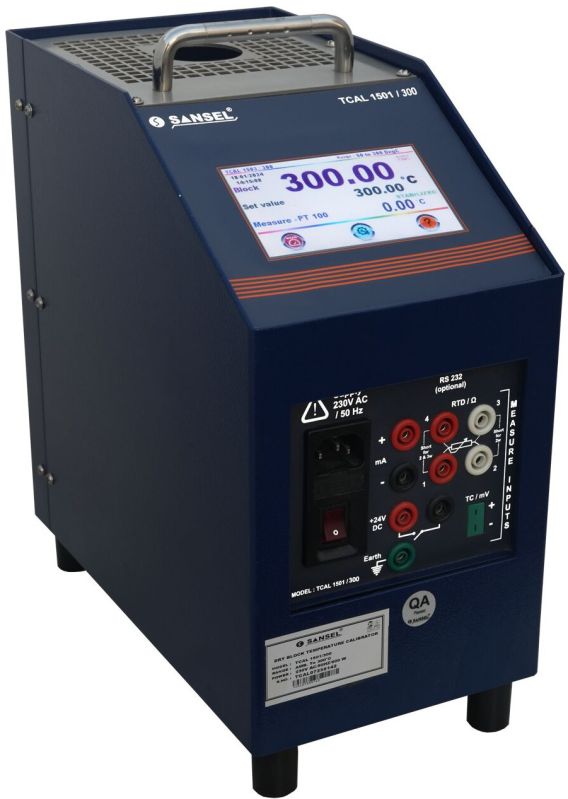

SANSEL series TCAL 1501 / 300 is a micro controller based precision DRY BLOCK temperature calibrators generates true reference temperature. The temperature controller of the calibrators uses a auto tune FUZZY PID controller algorithm. This response closely follows the heating curve of an actual thermal system. Place the Thermocouples, RTDs - type (PT 100, K, R, S, B, etc.) to be calibrated in the calibrator. Set the temperature from the 4.3 inch true TFT display with touch screen. Both Block and set temperature can be read. When stabilization occurs, Simply read the temperature and re-calibrate the Thermocouples, sensor etc, . or comparison with master Thermocouple / RTDs reading.

Specifications:

• Model: TCAL 1501 / 300
• Display: 4.3 inch True TFT LCD Display with Touch screen
• Temperature Range : Amb. to 300C
• Resolution: 0.01C
• Stability: 0.03C
• Radial uniformity: Better than 0.2C
• Measure inputs: RTD-PT 50, 100, PT 1000 / TC - J, K, R, S, T, E, B , N / mA, mV, ohms
• Temperature Readout: C
• Stabilization Time: 15 minutes
• Heating time: 30 mins (25 to 600C)
• Cooling time: 50 mins (600 to 100C )
• Well Dimension: 30 x 150 mm (dia x height)
• Test sensor immersion depth: 140 mm
• Standard well holes in mm: 5.1, 6.2, 6.2 & 8.1
• PC Interface (optional): RS 232 with automatic calibration software
• UUC Sensor supply output: 24V DC 10% / 50mA max.
• Power supply: 230V AC 10% / 50Hz (optional 110V AC)
• Power Consumption: 1200 VA
• Switch test: Provided
• Overall Dimension in mm: 285 x 155 x 330 (L x B x H) (Approx.)
• Weight: 8.5 kg (without well insert) (Approx.)

SANSEL Model TCAL 1501 series of Dry well Temperature calibrator range from -35 to 1200C in four model (TCAL 1501 / -35, TCAL 1501 / 300, TCAL 1501 / 600 & TCAL 1501 / 1200) are high precision, better resolution, stability, fast in heating and cooling. More well dia and depth to calibrate more number of temperature sensor at a time with better uniformity.

These models can meet any calibration requirement in laboratories or in on site applications. This models are inbuilt measuring facility of the Thermocouples, RTD, Resistance, millivolt & milliamps to directly read the signals from most of the temperature sensors, indicator with sensor and Transmitter. Temperature range from Amb.+ 5C to 600C with high resolution 0.01C up to 600C. This model is mainly used in all industries, like Pharmaceutical, food, Research & calibration laboratories etc., .

These models are using 4.3 True colour TFT display with Touch screen, easy to read multi parameter at the same time like, Block temperature, set temperature, measure value, Real time clock with date & time, Control Output %, Stability time & status, Range of the equipment with necessary unit of measurement and three soft touch keys are used for measure configuration, settings, calibration etc., It has one more advantage of help menu for operating instruction of the equipment via the same screen , Hence no need of Hard copy of Instruction manual.

• Model: TCAL 1501 / 600
• Display: 4.3 inch True TFT LCD Display with Touch screen
• Temperature Range : Amb. +5 to 600C
• Resolution: 0.01C
• Stability: 0.05C
• Radial uniformity: Better than 0.5C
• Measure inputs: RTD-PT 100, PT 1000 / TC - J, K, R, S, T, E, B , N / mA, mV, ohms
• Temperature Readout: C
• Stabilization Time: 15 minutes
• Heating time: 30 mins (25 to 600C)
• Cooling time: 50 mins (600 to 100C )
• Well Dimension: 30 x 150 mm (dia x height)
• Test sensor immersion depth: 140 mm
• Standard well holes in mm: 5.1, 6.2, 6.2 & 8.1
• PC Interface (optional): RS 232 with automatic calibration software
• UUC Sensor supply output: 24V DC 10% / 50mA max.
• Power supply: 230V AC 10% / 50Hz (optional 110V AC)
• Power Consumption: 1200 VA
• Switch test: Provided
• Overall Dimension in mm: 285 x 155 x 330 (L x B x H) (Approx.)
• Weight: 8.5 kg (without well insert) (Approx.)

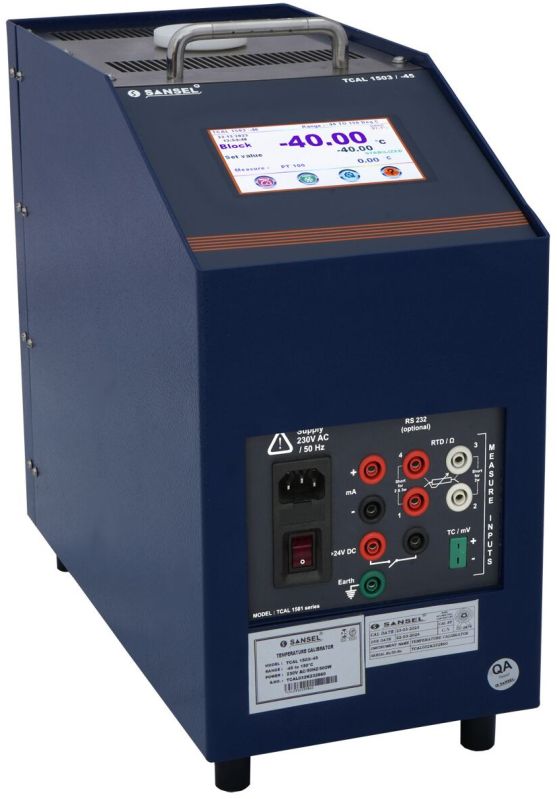

• Model : TCAL 1503 / -40
• Display : 4.3 True colour TFT display with touch screen
• Temperature Range : -40 to 120C @23C Ambient
• Resolution : 0.01 C
• Block Stability : Better than 0.03C at full range
• Block Radial Uniformity : 0.02C at full range
• Block Axial Uniformity (upto 40mm) : 0.18C at -45C0.1C at 0C0.05C at 50C0.11C at 100C0.17C at 120C
• Temperature Read out : C / F (selectable)
• Loading effect: Better than 0.08C
• hysteresis: Better than 0.03C
• Cooling time :

  30 mins (25 to -45 C)15 mins (25 to -30 C)65 mins (120 to 25 C)

• Heating time : 25 mins (25 to 120 C)75 mins (-45 to 120 C)52 mins (-45 to 25 C)
• Stabilization time: 10 minutes
• Insert (Dia. x Height): 30 x 160 mm
• Test sensor immersion depth: 130 mm
• Standard well holes in mm: Insert No. 1 5.1, 6.2, 6.2 & 8.1, Insert No. 2 6.2, 6.2 & 10.2
• Measure inputs: RTD-PT 100, PT 1000 / TC - J, K, R, S, T, E, B , N , Analog mA, V, mV, ohms
• Cold junction Accuracy: 0.3C
• UUC Sensor supply input: 24V DC 10% / 50mA max.
• Power supply: 230V AC 10% / 50Hz (optional 110V AC)
• Power Consumption: 500 VA
• Switch Test : Provided
• Overall Dimension in mm: 390 x 185 x 356 (L x B x H) (Approx.)
• Weight: 17.3 kg (with well insert) (Approx.)

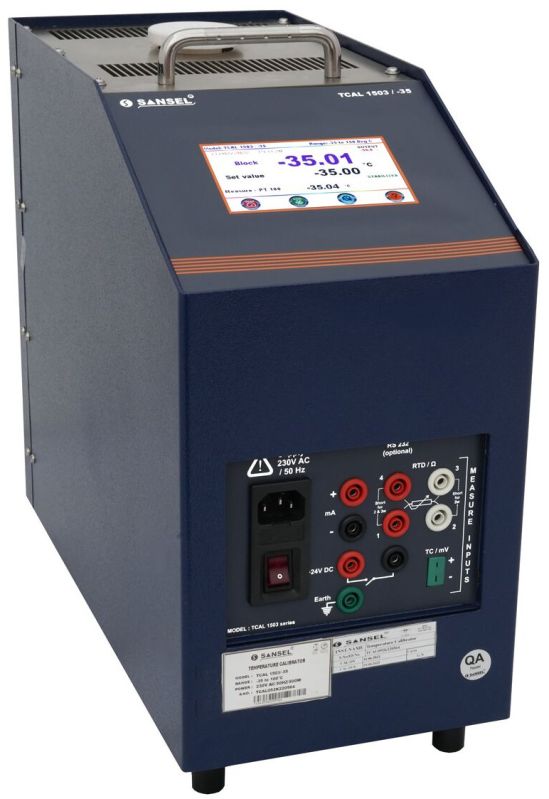

• Model : TCAL 1503 / -35
• Display : 4.3 True colour TFT display with touch screen
• Temperature Range : -35 to 120 C @ 23 C Ambient
• Resolution : 0.01 C
• Block Stability : Better than 0.03C at full range
• Block Radial Uniformity : 0.02C at full range
• Block Axial Uniformity (upto 40mm) : 0.20C at -35C0.05C at 0C0.05C at 50C0.17C at 100C

• Loading effect: Better than 0.08C

• Hysteresis: Better than 0.03C

• Heating time: 25 mins (25 to 120 C)75 mins (-35 to 120 C)52 mins (-35 to 25 C)

• Cooling time: 25 mins (25 to -35 C)15 mins (25 to -30 C)65 mins (120 to 25 C)

• Stabilization Time : 10 minutes

• Test sensor immersion depth: 130 mm

• Standard well holes in mm : Insert No. 1 5.1, 6.2, 6.2 & 8.1, Insert No. 2 6.2, 6.2 & 10.2

• Measure inputs: RTD-PT 100, PT 1000 / TC - J, K, R, S, T, E, B , N , Analog mA, V, mV, ohms

• Cold junction Accuracy: 0.3C

• UUC Sensor supply input: 24V DC 10% / 50mA max.

• Switch Test : Provided
• Power supply : 230V AC 10% / 50Hz (Optional 110V AC)
• Power Consumption : 500 VA
• Overall Dimension in mm : 390 x 185 x 356 (L x B x H)(Approx.)
• Instrument Weight : 17.3 kg (with well insert)(Approx.)

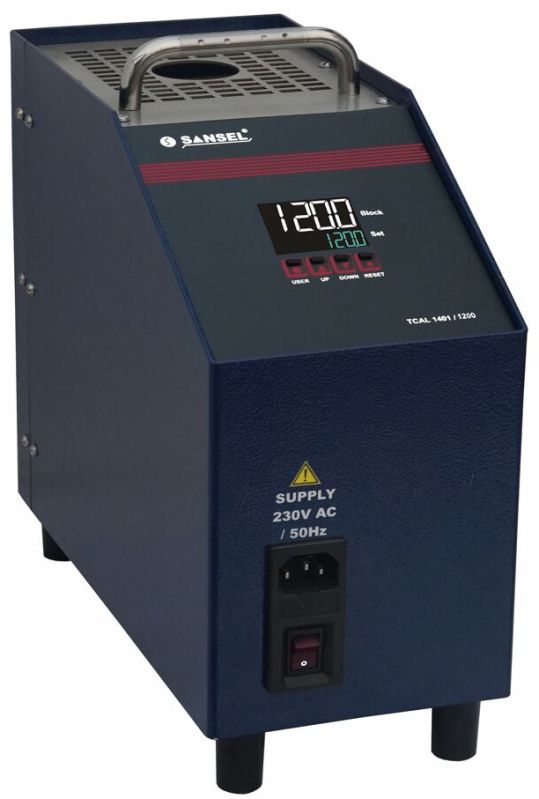

SANSEL Model TCAL 1401 / 1200 Dry well Temperature calibrator are high performance for industrial atmosphere and covering temperature range from 500 to 1200C. Which are ideally suited onsite calibration of thermocouple, RTDs, Indicator with sensors & 4-20mA signal transmitter with indicator in Glass, Steel, Forging and all types of process industries.

Having its advantage of user friendly, light weight, portable, fast settling, better uniformity and accuracy over a wide temperature range. TCAL 1401 / 1200 having interchangeable inserts to suit for calibration of different diameter of sensors (upto 39mm). Additional Inserts (optional) with special drillings are available to order.

Specifications:

• Model: TCAL 1401 / 1200
• Display: 0.58 (15mm)(Block) / 0.3(7.8mm) (Set) 4 digit LCD Display with 4 keys
• Temperature Range: 500 to 1200C
• Resolution: 1C
• Stability: 2C
• Radial Uniformity: Better than: 2C
• Temperature readout: C
• Heating time: 50 mins (Amb. To 1200 C)
• Cooling time: 120 mins (1200 to 100 C)
• Stabilization time: 30 minutes
• Well Dimension (dia. X height): 39 x 150 mm
• Standard well holes in mm: 5.2, 6.2, 6.2, 10.1 & 12.1
• Power supply: 230V AC 10% / 50Hz (Optional 110V AC)
• Power consumption: 1900 VA
• Overall Dimension in mm: 340 x 175 x 425 (L x B x H)(Approx.)
• Instrument Weight: 18 kg (without well insert) (Approx.)

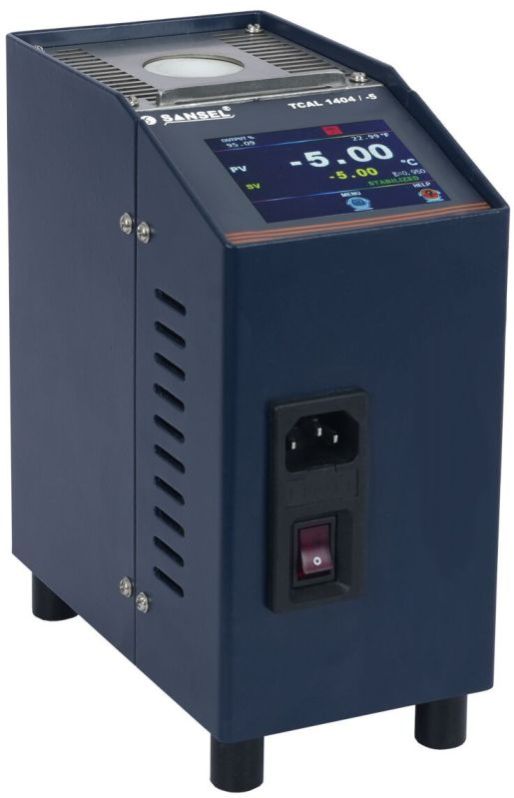

It is one of the smallest dry block with rich features and is highly competitive in price. SANSEL Model TCAL 1404/-5, (Dry Block Miniature Temperature Calibrator) sets a new benchmark in temperature calibration with advanced features that deliver unmatched precision, ease of use, and operational stability. Temperature range of the TCAL 1404 /-5 covers from -5 to 100 C. Our Drywell Calibrators are ideally suited for fast calibration in process industries to calibrate Thermocouple, RTD, Indicator with sensors & transmitters with sensors, this compact yet powerful calibrator is designed to meet the stringent demands of todays laboratories and field operations.

Specifications

Model: TCAL 1404/-5

Display: 2.8" True TFT with Touch screen

Temperature Range:  -5 to 100C

Radial uniformity: (Better than) 0.03C

Resolution: 0.01 C

Stability: 0.03 C

Temperature  readout: C

Heating time:

Amb to 100-->15min

-5 to Amb -->3 min

Cooling time:

Amb to -5 -->15min,

100 to 50-->4 min

Stabilization time: 10 mins

Well Dimension(dia. x height): 20 x 90 mm

Well immersion depth: 90 mm (throw hole)

Standard well holes in mm: 6.5 x 2nos

Power supply: 80 to 264VAC / 113 to 370VDC / 47 to 63Hz

Power consumption: 100 w

Overall Dimension in mm: 170 x 95 x 183 mm

Instrument Weight: 3.5 Kg

\n
• Model TCAL 1404/-15
\n
• Display 2.8" True TFT with Touch screen
\n
• Temperature Range -15 to 120 °C
\n
• Radial uniformity (Better than) ±0.03°C
\n
• Resolution 0.01 °C
\n
• Stability ±0.03 °C
\n
• Temperature readout °C
\n
• Heating time Amb to 120-->25 min, -15 to Amb -->5 min
\n
• Cooling time Amb to -15 -->20 min, 120 to 50 -->8 min
\n
• Stabilization time 10 mins
\n
• Well Dimension(dia. x height) 20 x 90 mm
\n
• Well immersion depth 90 mm (throw hole)
\n
• Standard well holes in mm 6.5 x 2nos
\n
• Power supply 80 to 264VAC / 113 to 370VDC / 47 to 63Hz
\n
• Power consumption 100 w
\n
• Overall Dimension in mm 170 x 95 x 183 mm
\n
• Instrument Weight 3.5 Kg
\n

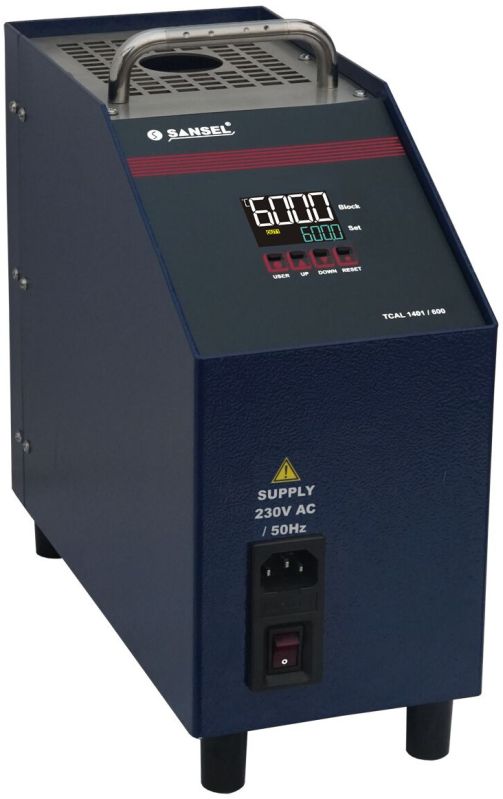

SANSEL Model TCAL 1401 / 600 Dry well Temperature calibrator are high performance for industrial atmosphere and covering temperature range from Amb.+5 to 600C. Which are ideally suited onsite calibration of thermocouple, RTDs, Indicator with sensors & 4-20mA signal transmitter with indicator in Food, Pharmaceutical and all types of process industries.

Having its advantage of user friendly, light weight, portable, fast settling, better uniformity and accuracy over a wide temperature range. TCAL 1401 / 600 having interchangeable inserts to suit for calibration of different diameter of sensors (upto 30mm). Additional Inserts(optional) with special drillings are available to order.

Specifications:

• Model : TCAL 1401 / 600
• Display : 0.58 (15mm)(Block) / 0.3(7.8mm) (Set) 4 digit LCD Display with 4 keys
• Temperature Range : Amb.+5 to 600C
• Resolution : 0.1C
• Stability : 0.1C
• Radial Uniformity : Better than 1C
• Temperature Read out : C
• Heating time : 30 mins (Amb. To 600 C)
• Cooling time : 25 mins (600 to 100 C)
• Stabilization time : 15 minutes
• Well Dimension (dia. X height) :30 x 110 mm
• Standard well holes in mm : 4.2, 6.2 , 6.2 & 8.5
• Power supply : 230V AC 10% / 50Hz (Optional 110V AC)
• Power Consumption : 1200 VA
• Overall Dimension in mm : 285 x 125 x 275 (L x B x H)(Approx.)
• Instrument Weight : 7.5 kg (without well insert)(Approx.)

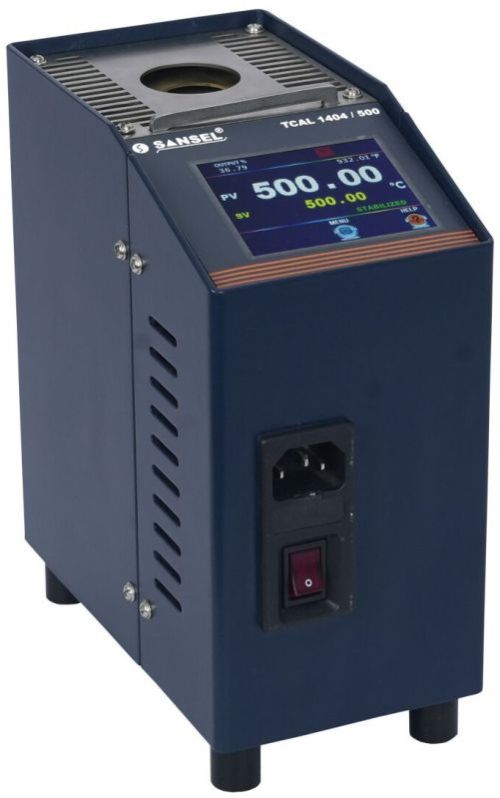

It is one of the smallest dry block with rich features and is highly competitive in price. SANSEL Model TCAL 1404/500, (Dry Block Miniature Temperature Calibrator) sets a new benchmark in temperature calibration with advanced features that deliver unmatched precision, ease of use, and operational stability. Temperature range of the TCAL 1404/500 covers from Amb. +5 to 500 C. Our Drywell Calibrators are ideally suited for fast calibration in process industries to calibrate Thermocouple, RTD, Indicator with sensors & transmitters with sensors, this compact yet powerful calibrator is designed to meet the stringent demands of todays laboratories and field operations.

Specifications:

Model TCAL 1404/500

Display 2.8" True TFT with Touch screen

Temperature Range: -5 to 500C

Radial uniformity: 0.05C

Resolution: 0.01 C

Stability: 0.08 C

Temperature readout: C

Heating time: Amb to 500 --> 25 min

Cooling time: 500 to 50--> 1 hr 20 min

Stabilization time: 15 mins

Well Dimension(dia. x height): 20 x 100 mm

Well immersion depth; 90 mm

Standard well holes in mm: 6.5 x 2nos

Power supply: 230V AC 10% / 50Hz (Optional 110V AC)

Power consumption; 350 w

Overall Dimension in mm: 170 x 95 x 183 mm

Instrument Weight: 3.75 Kg

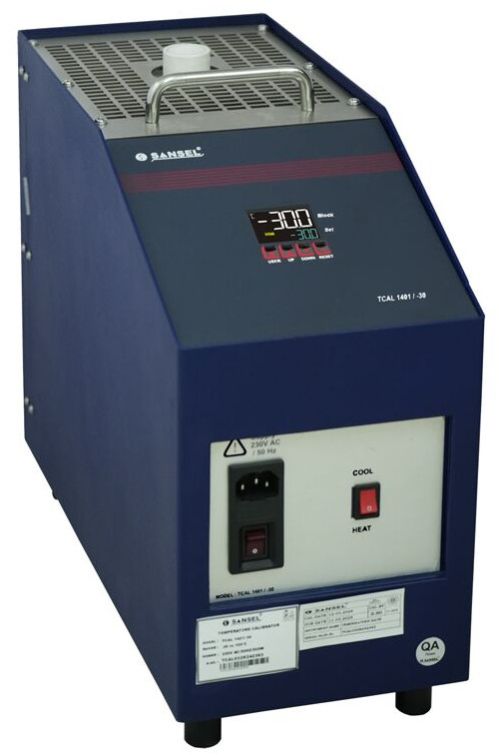

SANSEL Model TCAL 1401 / -30 Dry well Temperature calibrator are high performance for industrial atmosphere and covering temperature range from -30* to 100°C. Which are ideally suited onsite calibration of thermocouple, RTDs, Indicator with sensors & 4-20mA signal transmitter with indicator in Food, Pharmaceutical and all types of process industries. Having it's advantage of user friendly, light weight, portable, fast settling, better uniformity and accuracy over a wide temperature range. TCAL 1401 / -30 having interchangeable inserts to suit for calibration of different diameter of sensors (upto 22mm). Additional Inserts (optional) with special drillings are available to order.

Specifications:

• Model: TCAL 1401/ - 30
• Display: 0.58” (15mm)(Block) / 0.3”(7.8mm) (Set) 4 digit LCD Display with 4 keys
• Temperature Range: -30 to 100°C (*@Ambient 25°C)
• Radial Uniformity: Better than 0.15°C
• Resolution: 0.1°C
• Stability: ± 0.1°C
• Temperature readout: °C
• Heating time: 20 mins (Amb. To 100 °C)
• Cooling time: 25 mins (25 to -30 °C)
• Stabilization time: 10 minutes
• Well Dimension (dia. X height): 22 x 120 mm
• Standard well holes in mm: 5.2, 6.2 & 6.2
• Power supply: 230V AC ± 10% / 50Hz (Optional 110V AC)
• Power consumption: 500 VA
• Overall Dimension in mm: 490 x 178 x 357 (L x B x H)(Approx.)
• Instrument Weight: 12.5 kg (without well insert) (Approx.)

SANSEL Model TCAL 1501 series of Dry well Temperature calibrator range from - 30 to 1200C in four model (TCAL 1501 / -30, TCAL 1501 / 300, TCAL 1501 / 600 & TCAL 1501 / 1200) are high precision, better resolution, stability, fast in heating and cooling. More well dia and depth to calibrate more number of temperature sensor at a time with better uniformity.

These models can meet any calibration requirement in laboratories or in on site applications. This models are inbuilt measuring facility of the Thermocouples, RTD, Resistance, millivolt & milliamps to directly read the signals from most of the temperature sensors, indicator with sensor and Transmitter. Temperature range from 300 to 1200C with high resolution 0.1C up to 1200C. This model is mainly used in all industries, like metal moulding, glass, ceramic & calibration laboratories etc.,

These models are using 4.3 True colour TFT display with Touch screen, easy to read multi parameter at the same time like, Block temperature, set temperature, measure value, Real time clock with date & time, Control Output %, Stability time & status, Range of the equipment with necessary unit of measurement and three soft touch keys are used for measure configuration, settings, calibration etc., It has one more advantage of help menu for operating instruction of the equipment via the same screen , Hence no need of Hard copy of Instruction manual.

• Model: TCAL 1501 / 1200

• Display: 4.3 True TFT LCD Display with Touch screen

• Temperature Range: 300 to 1200C

• Resolution: 0.1C

• Stability: Better than 0.5C

• Radial uniformity: Better than 2C

• Stabilization Time: 30 minutes

• Temperature readout: C

• Heating time: 50 mins (Amb. to 1200C)

• Cooling time: 120 mins (1200 to 100C )

• Well Dimension: 39 x 180 x 140 mm (dia x height x depth)

• Standard well holes in mm: 5.2, 6.2, 6.2, 10.1 & 12.1

• Power supply: 230V AC 10% / 50Hz (Optional 110V AC)

• Power Consumption: 1900 VA

• Overall Dimension in mm: 340 x 175 x 425 (L x B x H) (Approx.)

• Weight: 18 kg (without well insert) (Approx.)

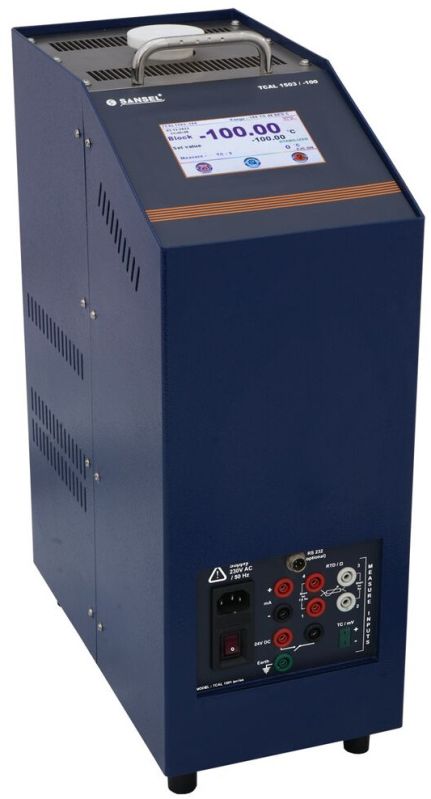

• Model : TCAL 1503 / -100
• Display : 4.3 True colour TFT display with touch screen
• Temperature Range : -100C to 40C @20C to 30C Ambient
• Resolution : 0.01 C
• Block Stability (30 mins) : Better than 0.03C at full range
• Block Radial Uniformity : 0.05 C at full range
• Temperature Read out : C / F (selectable)
• Heating time :

  25C to 40C : 30 min-100 to 25C : 80 min

• Cooling Time: 25C to -100C : 85 min40 to 25C : 12 min
• Stabilization time : 15 minutes
• Insert Dia. x Height: 30 x 120 mm
• Test sensor immersion depth: 115 mm
• Standard well holes in mm : Insert No. 1 : 5.1, 6.2, 6.2 & 8.1, Insert No. 2 : 6.2, 6.2 & 10.2
• Measure inputs: RTD PT 100, PT 1000, TC J, K, R, S, T, E, B, N , Analog mA, V, mV, Ohms
• Cold junction Accuracy: 0.3C
• Communication: RS 485 MODBUS
• Switch Test: Provided
• Sensor supply output: 24V DC 10% / 50mA max.Power supply: 230V AC 10% / 50Hz (Optional 110V AC)
• Power Consumption : 500 VA
• Overall Dimension in mm : 356 x 210 x 534 (L x B x H)(Approx.)
• Instrument Weight :15.9 kg(with well insert)(Approx.)
