Sansel Instruments And Controls

Maduravoyal, Chennai, Tamil Nadu

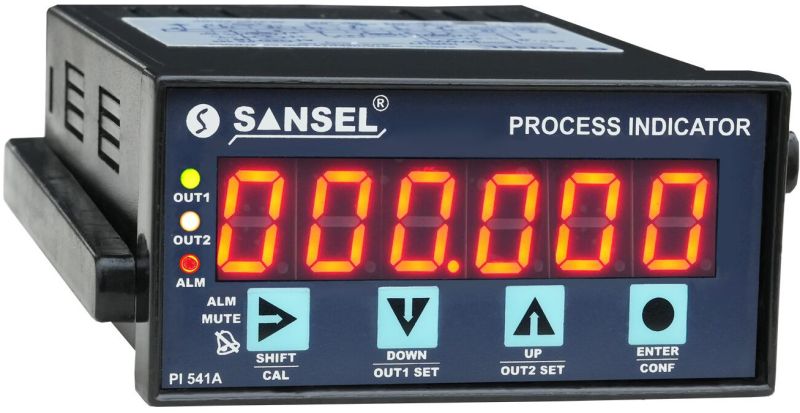

• Model: PI – 541A

• Display: 6 Digit 7 segment RED LED

• Inputs: 0 - 20 mA, 0 to 75 mV, -10 to 10 V DC, 0 – 4000 Ω (H & L Limit Programmable)RTD - PT 100, PT-1000, Thermocouple - J, K, R, S, T, B, N, E

• Cold junction Accuracy: ± 0.3°C

• Resolution: 0.0001 / 0.001 / 0.01 / 0.1 / 1°C Selectable for Analog0.01°C for RTD and 0.1°C for TC

• Unit selection: °C / °F (for RTD & TC inputs)

• Linearization: Programmable custom Linearization provided (1 - 21 points)

• Input signal filter: 1 – 100% user configurable

• Cold junction compensation: Automatic inbuilt ‘CJC’ is provided

• Relay Output* (optional): 2 Relay (5A rated) with 4 Relay Status Selection, Hysteresis, Cyclic Delay

• Alarm settings: Front key settable

• Alarm indication : Two LED on front panel

• Re Transmission* (optional): Opto Isolated Analog Output 4 - 20 mA or 0 - 10V DC for process variable

• PC communication* (optional): RS 485 (2 wire) MODBUS protocol

• PC Software* (optional): Monitoring, Data logging, Report & graph

• Sensor excitation Supply: 24 V DC ±10% @ 100 mA

• Power supply: 90 to 270 V AC / DC / 50/60 Hz

• Front panel : IP 65 protection

• Operating environment: 0 to 50°C / 5 to 95% RH non condensing

• Overall Dimensions: 48(H) X 96(W) X 110(D) mm

• Cut out Dimension: 44(H) x 90(W) mm

• Enclosure: ABS plastic

• Weight: 350 grams (Approx.)

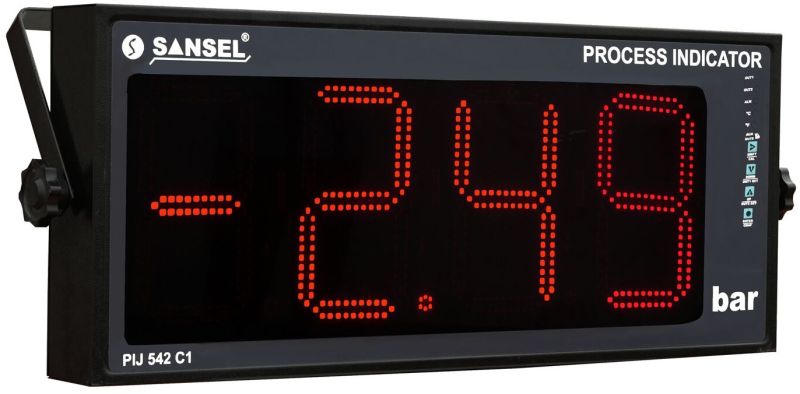

• Model: PIJ – 542 C1
• Display: 2” or 4” or 8” 4 Digit 7 segment RED LED*
• Accuracy: ± 0.1 % of FS
• Analog inputs: 4 – 20 mA, 0 - 20 mA, 0 to 70 mV, 0 to 10 V DC, 0 – 400 Ω (H & L Limit Programmable)
• Temperature inputs: RTD - PT 100, Thermocouple - J, K, R, S, T, B, N, E
• Analog display range: -1999 to 9999 (H & L Limit programmable)
• Temperature range (H & L Limit programmable):RTD - PT 100 (-199.9 to 850.0°C / -199.9 to 999.9 °F)TC - J (- 200 to 1200°C / -328 to 2192°F)TC - K (- 200 to 1372°C / -327 to 2501°F)TC - R (- 40 to 1768°C / -40 to 3214°F)TC - S (- 40 to 1768°C / -40 to 3214°F)TC - T (- 200 to 400°C / -328 to 752°F)TC - B (300 to 1820°C / 572 to 3308°F)TC - N (-200 to 1300°C / -327 to 2372°F)TC - E ( -200 to 999.9°C / -327 to 1832°F)
• Unit selection: °C / °F ( for RTD & TC inputs)
• Analog input display resolution: 0.001 / 0.01 / 0.1 / 1 (Selectable)
• Temperature resolution: 0.1 / 1 °C / °F (optional 0.01 for RTD - PT 100 I/P up to 99.99 °C Factory presetable)
• Filter constant: 1 – 100% (Adjustable)
• Display hold option: Peak, hold & average (any one selectable)
• Hold delay: 0 - 999 sec (selectable)
• Relay Output (optional): 2 Relay (5A rated) with 6 Relay Status Selection, Adjustable, Hysteresis, Cyclic Delay
• Re Transmission (optional): Opto Isolated Analog Output 4 - 20 mA or 0 - 10V DC
• PC communication (optional): RS 485 (2 wire) MODBUS RTU protocol
• PC interface software: Optional
• Sensor Supply (external): 24 V DC ±10% @ 100 mA
• Power supply: 230 V AC / 50 Hz
• Overall dimension: 760 x 320 x 85 (or) 1125 x 320 x 85 (L x H x D) in mm (Approx.)
• Housing : MS Powder coating
• Mounting: Wall or sealing with 360 º rotatable clamp
• Operating environment: 0 - 50°C / 5 to 95% RH Non condensing
• Weight (Approx.): 7.5 (or) 8.5 kg

Descriptions:

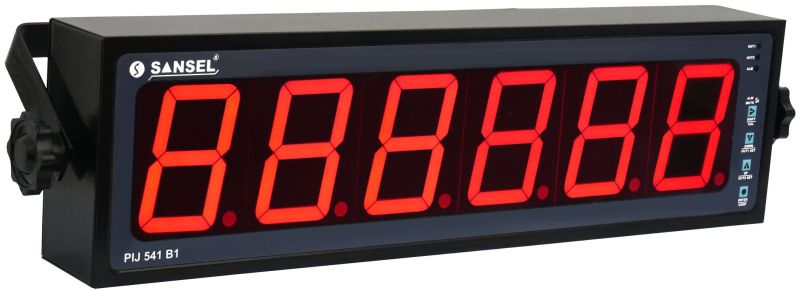

The PIJ 541 B1 Jumbo display universal input process indicator is incorporated with high accuracy 24bit ADC , 6-digit industrial display indicator accept any one input from Thermocouple, RTD, mV, mA and Resistance, with the capability of measuring and indicating temperature, pressure, flow, level and other process variables. The standard PIJ 541 B1 provides a retransmission output, alarm relay outputs and RS-485 MODBUS communications can be added to suit your applications. The input and output are easily configurable by front panel keys. The PIJ 541 B1 has been designed to provide reliable indications in the harshest environments.

• Model: PIJ – 541 B1
• Display: 2” or 4” or 8” 6 Digit 7 segment RED LED*
• Accuracy: ± 0.1 % of FS
• Analog inputs: 4 – 20 mA, 0 - 20 mA, 0 to 70 mV, 0 to 10 V DC, 0 – 400 Ω (H & L Limit Programmable)
• Temperature inputs: RTD - PT 100, PT 1000, Thermocouple - J, K, R, S, T, B, N, E
• Analog display range: -199999 to 199999 (H & L Limit programmable)
• Temperature range (H & L Limit programmable):RTD - PT 100 (-199.99 to 850.00°C / -327.5 to 1562.0 °F)  RTD - PT 1000 (-50.0 to 400.0°C / -58.0 to 752.0 °F)  TC - J (- 200 to 1200°C / -328 to 2192°F)

  TC - K (- 200 to 1372°C / -327 to 2501°F)TC - R (- 40 to 1768°C / -40 to 3214°F)TC - S (- 40 to 1768°C / -40 to 3214°F)TC - T (- 200 to 400°C / -328 to 752°F)TC - B (300 to 1820°C / 572 to 3308°F)TC - N (-200 to 1300°C / -327 to 2372°F)TC - E ( -200 to 1000°C / -327 to 1832°F)

• Unit selection: °C / °F ( for RTD & TC inputs)
• Analog input display resolution: 0.0001 / 0.001 / 0.01 / 0.1 / 1 (Selectable)
• Temperature resolution: 0.1 / 1 °C / °F (optional 0.01 for RTD - PT 100 I/P up to 99.99 °C Factory presetable)
• Filter constant: 1 – 100% (Adjustable)
• Display hold option: Peak, hold & average (any one selectable)
• Hold delay: 0 - 999 sec (selectable)
• Relay Output (option
• al): 2 Relay (5A rated) with 6 Relay Status Selection, Adjustable, Hysteresis, Cyclic Delay
• Re Transmission (optional): Opto Isolated Analog Output 4 - 20 mA or 0 - 10V DC
• PC communication (optional): RS 485 (2 wire) MODBUS RTU protocol
• PC interface software: Monitoring, Data logging, Report & Graph (Optional)
• Sensor Supply (external): 24 V DC ±10% @ 100 mA
• Power supply: 230 V AC / 50 Hz
• Overall dimension: 611 x 171 x 85 (L x H x D) mm (Approx.)
• Housing : MS Powder coating
• Mounting: Wall or sealing with 360 º rotatable clamp
• Operating environment: 0 - 50°C / 5 to 95% RH Non condensing
• Weight (Approx.): 5.5 (or) 8.5 kg

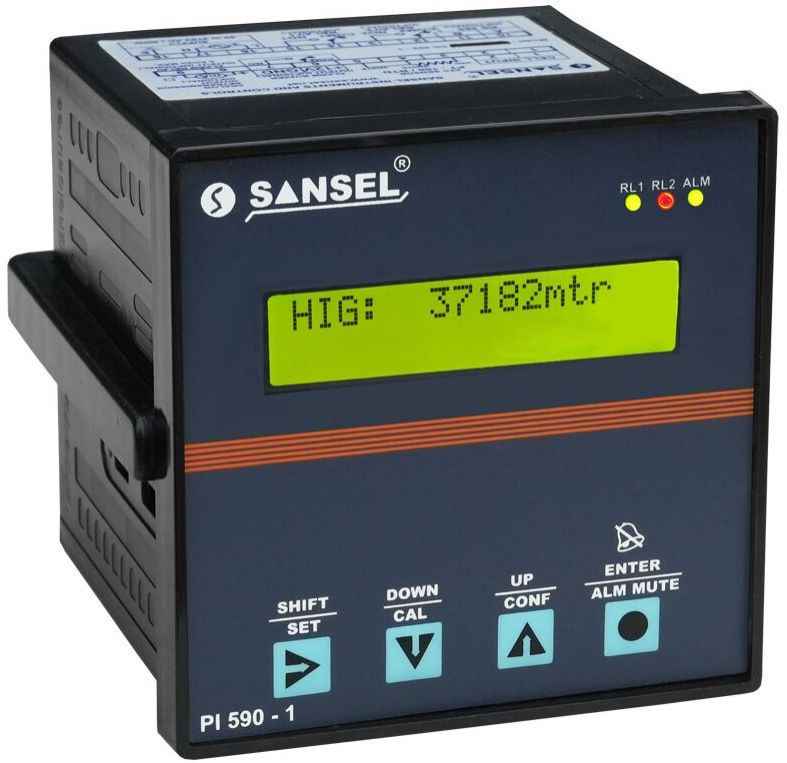

• Model : PI 590-1
• Display: 16 character x 2 line LCD
• Input: -75 to +75mV / 0 to +20mA / -10 to + 10V ( programmable Input Lo & Hi Limits)
• Range: -199999 to +199999 (programmable Range Lo & Hi Limits)
• Resolution: 0.00001 / 0.0001 / 0.001 / 0.01 / 0.1 / 1 (selectable)
• Accuracy : ± 0.1% of FS / ± 0.05 % of FS
• Sensor Supply Working : 24 V DC / 100 mA
• Relay Output (Optional): 2 NO , 2 COM 5 A Rated Relay with individual H / L set
• Re transmission Output (Optional) : 4 - 20 mA (or) 0 - 10V DC (Factory Selectable)
• Working temperature : 0 - 50 ºC
• Power Supply : 90 to 270V AC / DC 50Hz
• Dimension : 96 x 96 x 65 mm.
• Weight : 200 grams (Approx.)

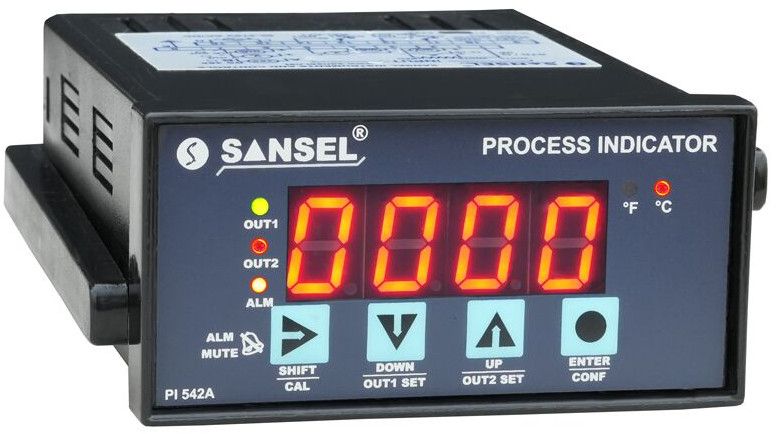

• Model: PI – 542A
• Display: 4 Digit, 0.5” 7 segment RED LED
• Analog inputs: 0 - 20 mA, 0 to 70 mV, 0 - 10 V DC, 0.0 – 400.0 Ω (H & L Limit Programmable)
• Temperature inputs: RTD - PT 100, Thermocouple - J, K, R, S, T, B, N, E
• Display Range: -1999 to 9999 counts (H & L Limit programmable)
• Temperature range (H & L Limit programmable):RTD - PT 100 (-199.9 to 800.0°C )TC - J (- 200 to 200°C )TC - K (- 200 to 1372°C )TC - R ( 0 to 1765°C )TC - S ( 0 to 1762°C )TC - T (- 199.9 to 400.0°C )TC - B ( 600 to 1800°C )TC - N (-200 to 1300°C )TC - E ( -199.9 to 916.0°C )
• Accuracy:0.05% FS ±1 counts (Except Thermocouple)0.05% FS ±2 counts (only for Thermocouple)
• Unit selection: °C / °F (for RTD & TC inputs)
• Analog input resolution mV, mA & V: 0.001 / 0.01 / 0.1 / 1 (Selectable)
• Temperature resolution: 0.01 (For RTD - PT 100 input (°C) only) /0.1 / 1 °C / °F
• Filter constant: 1 – 100% (adjustable)
• Relay Output* (optional): 2 Relay (5A rated) with 4 Relay Status Selection, Adjustable Hysteresis, Cyclic Delay
• Re Transmission* (optional): Opto Isolated Analog Output 4 - 20 mA or 0 - 10V DC
• PC communication* (optional): RS 485 (2 wire) MODBUS RTU protocol
• PC Software* (optional): Monitoring, Data logging, Report & graph
• Sensor Supply (external): 24 V DC ±10% @ 100 mA
• Operating environment: 0 to 50°C / 5 to 95% RH non condensing
• Power supply: 90 to 270 V AC / DC / 50/60 Hz
• Overall Dimensions: 48(H) X 96(W) X 110(D) mm
• Cut out Dimension: 44(H) x 90(W) mm
• Housing: Panel mountable ABS plastic
• Weight: 300 grams (Approx.)
