Calibrators

Our Complete range of products are GJX-6 Vibration Calibrator, GJX-3 Vibration Calibrator, BST-VIB Portable Calibrator and GJX-5i Vibration Calibrator.

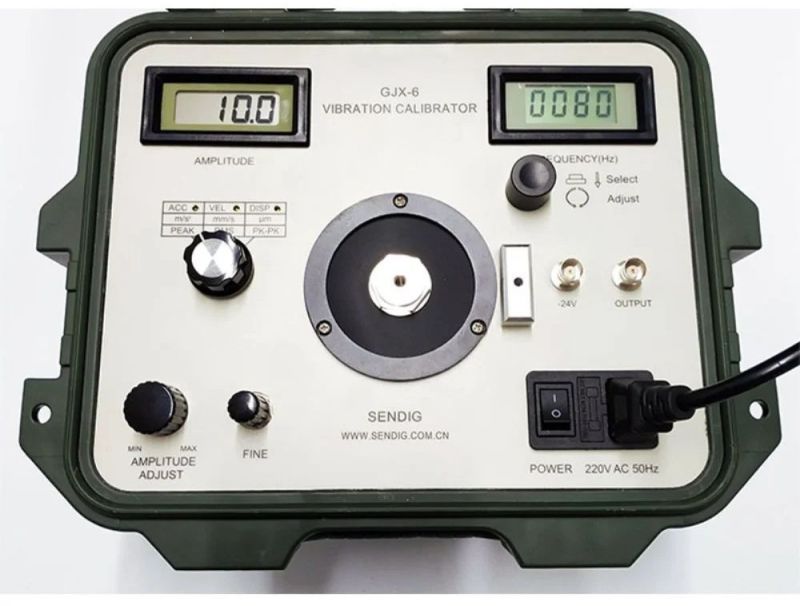

GJX-6 Vibration Calibrator

Min. Order (MOQ) 1 Piece
Weight 5.5kg
Accuracy ±5%
Usage Calibrating Vibration Sensors
Material Aluminum Alloy
Type Vibration Calibrator
Power Source 9V Battery
Frequency Range 10 Hz To 159.2 Hz
Operating Temperature 0°C To 50°C
Dimensions 300 x 250 x 210mm

We offer the GJX-6 Vibration Calibrator, a precision instrument designed for calibrating vibration sensors. Made of durable aluminum alloy, this Vibration Calibrator weighs 5.5kg and boasts an accuracy of 5%. Powered by a 9V battery, it operates within a temperature range of 0C to 50C. With a frequency range of 10 Hz to 159.2 Hz, this calibrator ensures reliable performance. Its compact dimensions of 300 x 250 x 210mm make it portable and easy to use. Ideal for exporters, suppliers, and importers seeking high-quality calibration equipment.

Gjx-6-vibration-calibrator

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

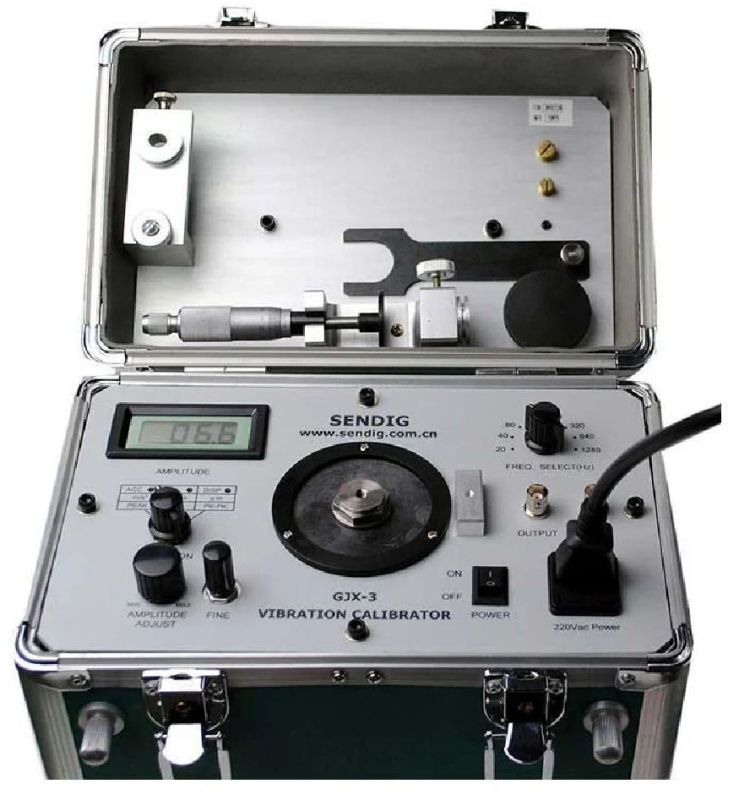

GJX-3 Vibration Calibrator

Min. Order (MOQ) 1 Piece
Certification ISO 9001:2008 Certified
Type Vibration Calibrator
Accuracy 0.01%
Display Type Digital
Voltage 220 Volt
Power Source Electrical

The GJX-3 Vibration Calibrator combines a sine signal generator, power amplifier, standard transducer, and shaker in a single compact unit. It offers high accuracy, small size, and easy operation suitable for both laboratory and on-site use.

Portable-calibrator-gjx-3-vibration-calibrator

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

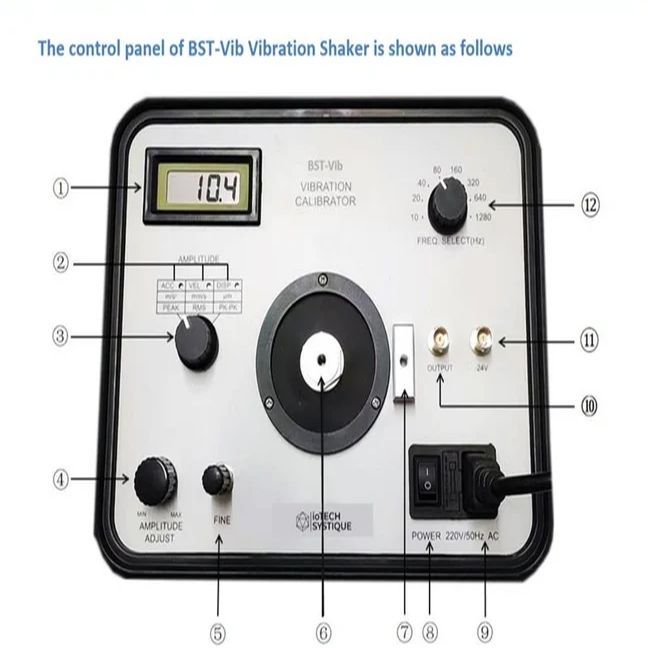

BST-VIB Portable Calibrator

Min. Order (MOQ) 1 Piece
Usage Calibration Of Vibration Transducers
Type Portable Vibration Calibrator
Warranty 1 Year
Certification ISO 9001:2008 Certified
Driven Type Battery
Display Vibration Amplitude Output Display
PowerSwitch 120 VAC (optional 220 VAC)

We offer the BST-VIB Portable Calibrator, a Battery-driven device that is ISO 9001:2008 Certified with a 1-year Warranty. This Portable Vibration Calibrator is ideal for calibrating Vibration Transducers, featuring a Vibration Amplitude Output Display for accurate readings. The PowerSwitch supports 120 VAC (optional 220 VAC) for versatile use. Perfect for Exporters, Suppliers, and Importers in need of reliable calibration equipment.

BST-VIB

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

GJX-5i Vibration Calibrator

Min. Order (MOQ) 1 Piece
Type Vibration Sensor Calibrator
Warranty 1 Year
Certification ISO 9001:2008 Certified
Size 280*180*250mm
Gross Weight 10 kg
Storage -20 C to 70 C

The GJX-5i Vibration Sensor Calibrator can calibrate various types of vibration sensors, including piezoelectric accelerometers, magnetoelectric speed sensors, and eddy current sensors. It is also suitable for calibrating vibration test instruments, vibration monitoring systems, and data acquisition systems composed of these sensors.The calibrator can internally generate standard sinusoidal signals at eight frequencies: 10, 20, 40, 80, 160, 320, 640, and 1280 Hz. Additionally, it supports a variety of signals from an external signal generator, including sine waves and swept signals with continuously adjustable frequency.The amplitude of the generated vibrations can be adjusted using a potentiometer and is displayed digitally. The GJX-5i can operate in both **vertical and horizontal directions.

Calibration-equipment-gjx-5i-vibration-calibrator

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details
