Full Body Scanner

We are leaders in the market for providing best range of Terasense Full Body Security Scanner, Symcad III CX16 (Non Security) Compact 3D Body Scanner and Symcad III PX20 Human Body Scanner

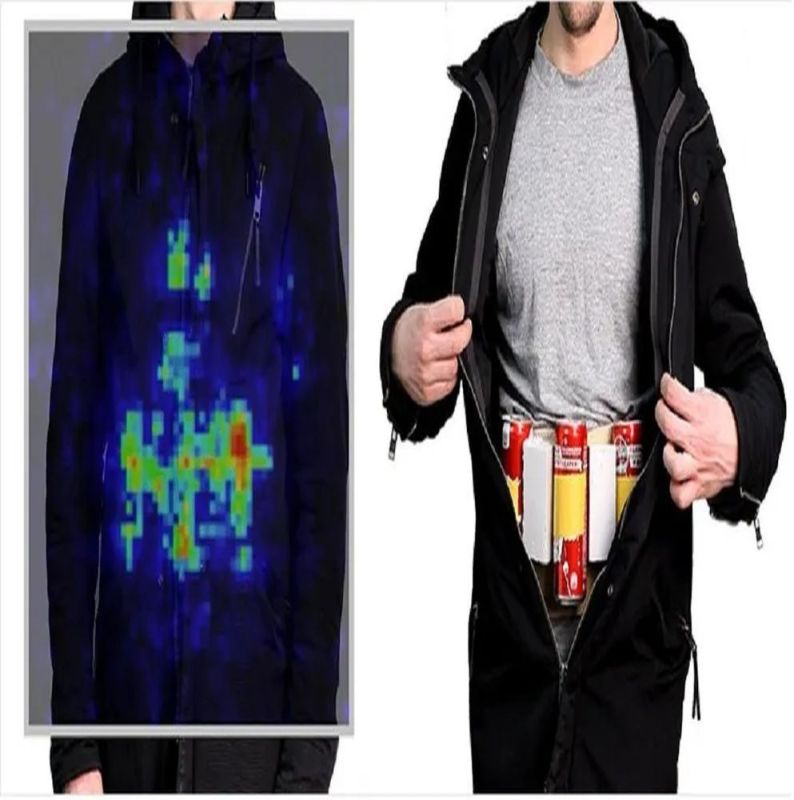

Terasense Full Body Security Scanner

Min. Order (MOQ) 1 Piece
Voltage 220-400 Volt
Application Security Screening For Concealed Objects
Type Security Screening System
Certification ISO 9001:2008
Alarm Mode Terahertz Imaging
Power Source Electrical
Battery Charging Type Plugged in Charging, Rechargable Batteries

With the rising levels of violence and terrorism worldwide, TeraSense is now receiving numerous inquiries for security screening systems similar to those used at airports, but based on terahertz (THz) imaging technology. Terahertz waves are completely harmless to humans and do not produce ionizing radiation, unlike X-ray machines. These properties of terahertz and sub-terahertz spectral ranges make T-ray–based screening solutions ideal for applications where human health and safety are paramount.The TeraSense team has taken these challenges seriously and is now ready to offer our own active terahertz–based stand-off security screening system (“body scanner”). The concept of a body scanner designed for detecting objects concealed under clothing is briefly described on our web page dedicated to HOMELAND SECURITY applications.

Terasense-security- Full -Body- Scanner

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

Symcad III CX16 (Non Security) Compact 3D Body Scanner

Min. Order (MOQ) 1 Piece
Voltage 320 V
Certification ISO 9001:2008
Country of Origin India
Power Source Electric
Dimension 1900 x 1730 x 2100 mm
Freuqency 50 Hz
Phase Single Phase

Compact 3D body scanner SYMCAD III model CX16

Digital Data Capture PC Workstation (including Microsoft Windows 8.1 Pro - English version)
Reduced-size booth (dimensions L x W x H: 1.90 x 1.73 x 2.10 m)
with two curtains (one at the entrance and one at the exit)
Automatic calibration device with removable electronic object
White LED lighting (4 LED ramps)
16 depth sensors, calibrated in factory, with their electronics and wiring technology (patented by TELMAT) for electronic and optical infrared noise reduction
Unlimited license of the SYMCAD and MORPHOBASE software programs:
High Speed 3D Capture (< 1.3 sec.)
Automatic body measurement extraction, export and printing
Body shape analysis (extraction of body figuration indicators)
Management of measurement surveys
Automatic garment size recommendation
Interactive control of body measurement extraction
Local MORPHO™ Relational Database Management System
Parameterization of the MORPHO™ database (garment size conversion tables, user-defined measurements, …)
One-year warranty + hardware maintenance 'return to factory' + software maintenance + hotline support

SPECIFICATIONS

Download Detail File : Click Here

View Complete Details

Ask Latest Price & Details

Symcad III PX20 Human Body Scanner

Min. Order (MOQ) 1 Piece
Material ABS+PC
Application 3D Body Scanning, Body Measurement Extraction, Body Shape Analysis, Garment Size Recommendation
Type Body Scanner
Wideangle 140 deg
Power Source Electric
Optical Zoom > 40x
Mega Pixel < 5.0MP
Lighting White LED (4 LED Ramps)
Sensors 20 Depth Sensors With Electronic And Optical Infrared Noise Reduction
Speed High-speed 3D Capture (< 1.5 Sec)

Specifications / Features:

Digital Data Capture PC Workstation (Microsoft Windows 8.1 Pro – English version)
Automatic calibration device with removable electronic object
White LED lighting (4 LED ramps)
20 depth sensors, factory-calibrated, integrated in prewired stands with electronics and wiring, designed for integration into a customized shop layout (patented by TELMAT) for electronic and optical infrared noise reduction
Unlimited license of SYMCAD and MORPHOBASE software programs:
High-speed 3D capture (< 1.5 sec)
Automatic body measurement extraction, export, and printing
Body shape analysis (extraction of body figure indicators)
Management of measurement surveys
Automatic garment size recommendation
Interactive control of body measurement extraction
Local MORPHO™ relational database management system
Parameterization of the MORPHO™ database (garment size conversion tables, user-defined measurements, etc.)
One-year warranty including hardware maintenance (‘return to factory’), software maintenance, and hotline support
