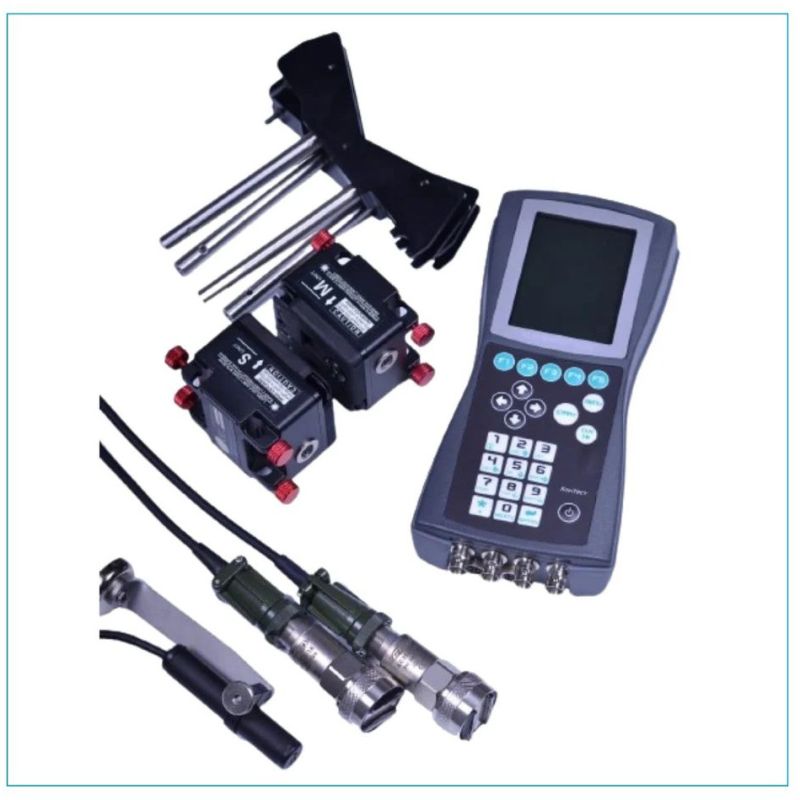

We are a trusted exporter, supplier, and importer offering the Laser Align with Software Vibanalyst Four Channel Vibration Analyzer. This ISO 9001:2008 certified product originates from India, weighing only 350 grams. With four channels, this vibration analyzer is ideal for vibration analysis and alignment applications. Packaged in a box, it provides accurate and reliable results for your industrial needs.

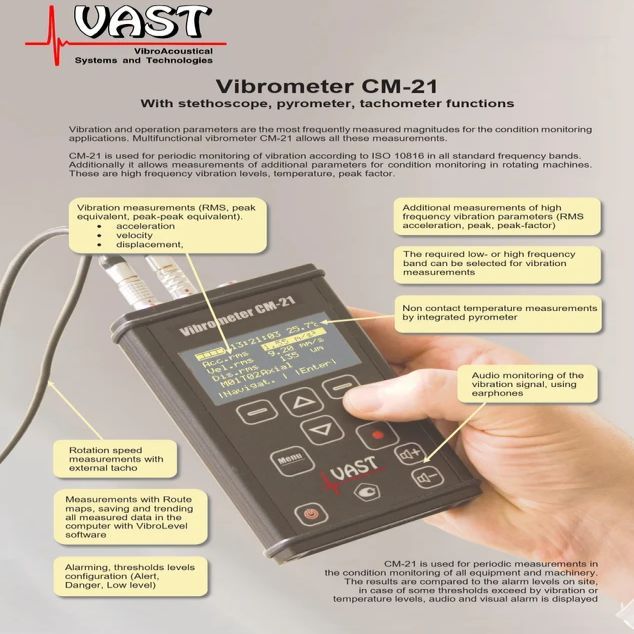

We provide the CM-21 Vibration Analyzer, a high-quality product originating from India. This Vibration Analyzer, weighing 300g, is ideal for industrial machinery maintenance with a sensitivity of 100mV/g +-10% nominal @ 80Hz. It comes in a convenient carrying case packaging and operates on a rechargeable battery. The data exchange is facilitated through USB connectivity. As an Exporter, Supplier, and Trader, we offer this advanced tool for efficient vibration analysis in various industrial applications.

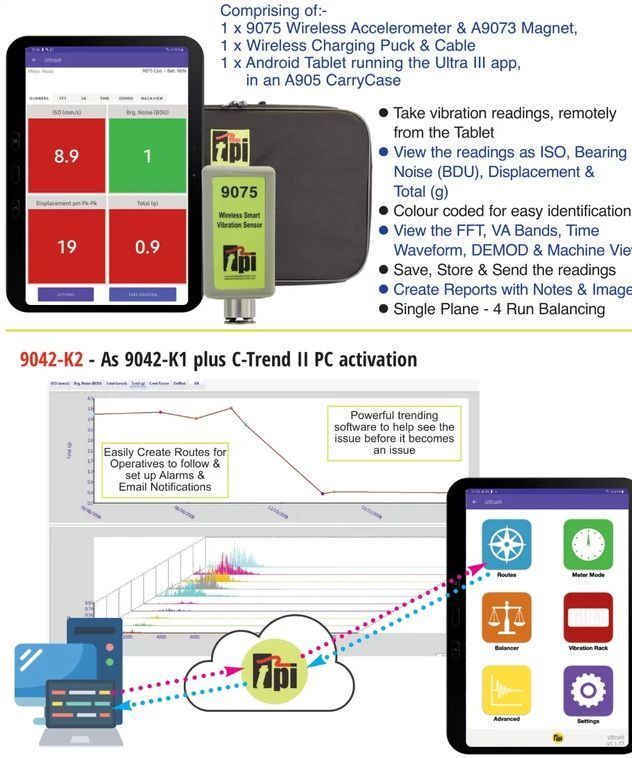

We offer the Tpi 9042 Vibration Analyzer, a versatile tool for industrial machinery maintenance. This lightweight device, weighing only 1.5 lbs, features a wide frequency range of 2Hz to 10kHz and a low RPM of 120. Packed in a convenient carrying case, it boasts an LCD display, rechargeable battery, and USB connectivity. With compact dimensions of 6 x 3 x 1 inches, this analyzer is a must-have for exporters, suppliers, and traders in the industrial sector seeking reliable performance and portability.

The analyzer automatically performs vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment, and looseness.The system is designed to enable a user to take vibration measurements from assets (e.g., pumps, motors, fans, and bearings). The unit displays vibration frequency plots and allows vibration severity and bearing condition to be monitored.The 9080 Vibration Analyzer & Smart Trend Meter also has an optional strobe attachment for determining machine speed and optional Bluetooth-connected headphones for listening to bearing noise.



•  Find machine faults before they stop your machine
• Increase productivity and lower maintenance costs
•  Industry-approved ear defenders with built-in Bluetooth headphones are also available to let you listen to bearing noise – or even listen to your phone!



Vibration analysis at the touch of a button. Analyze and interpret readings; incredible performance at an unbelievably low price. Overall machine and bearing conditions: vibration values are displayed with color-coded alarm levels for ISO values and Bearing Damage Units (BDU).



Benefits:

•  ISO built-in alarms
•  Easily identify bearing problems with BDU reading
• 800-line FFT spectrum
•  Ruggedized IP67 case



The 9070 is a simple-to-use vibration monitoring and analysis tool that allows easy display of vibration signals. The meter automatically performs vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment, and looseness.



Features:

Full-color OLED display

Easily identify problems with built-in band filters:

 1X (unbalance)

  2X (misalignment)

   3X (looseness)

 Built-in accelerometer with stinger; optional long stinger and magnetic mount available

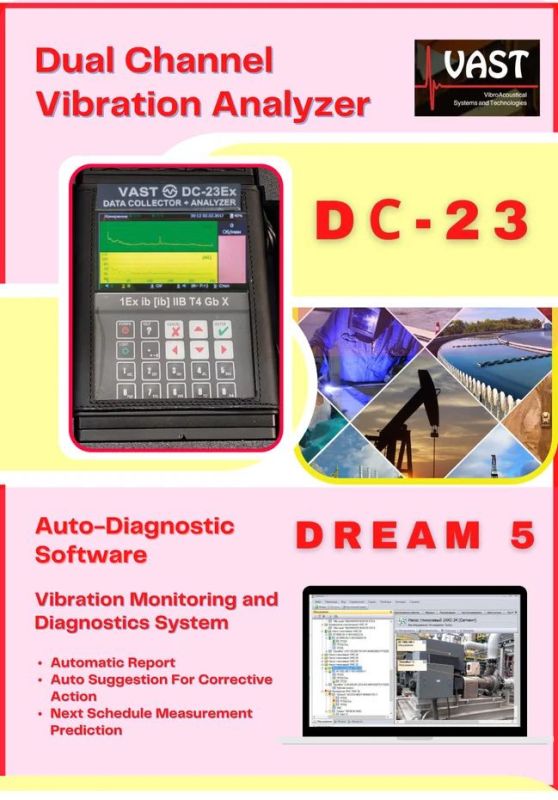

5th generation of vibration analyzers!

DC-23 is a dual-channel vibration analyzer of the new generation.

Main device feature – two-channel simultaneous and synchronized data collection. All measurement results are acquired from a single time signal.

This approach allows cutting down the measurement time by 3–6 times in comparison with previous-generation vibration analyzers.



New Features:

•  Increase of max frequency up to 51, 200 Hz
•  Increase of frequency resolution up to 51, 200 lines
•  New types of measurements added



STD-510 Data Collector is used for monitoring and analysis of rotary machine conditions. Thanks to its pocket size, lightweight, functional, and easy-to-operate design, STD-510 is an ideal tool for daily vibration monitoring of industrial equipment.



Highlights:

•  Using external sensor with magnetic holder enables you to collect broadband data more accurately and reliably
•  Data acquisition and storage: up to 500 waveforms
•  USB port to transfer data to computer, upload routes, and download data for in-depth analysis with the Vibrodesigner Analysis Software
•  On-site FFT analysis
•  Tacho input
•  Explosion proof – Ex ib II BT3



On-site Analysis:

•  Cursor and coordinates
• In-band values
•  Various measurement modes
•  Zooming

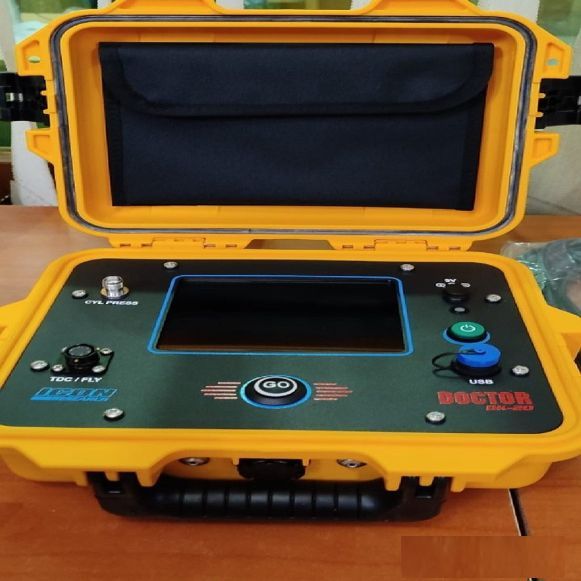

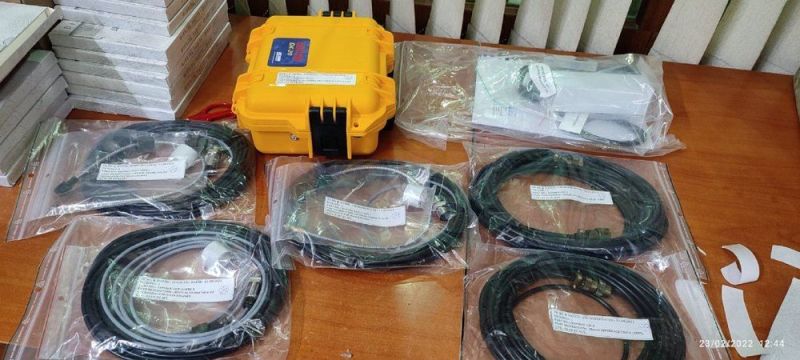

As one of the leading entities of this domain, we are engrossed in providing supreme quality DK-20 Marine Diesel Engine Analyzer. This system is equipped with a diesel detector. It is made compatible with various software packages available with an integrated PC for mobile usage. The offered system is manufactured by our ingenious professionals using the finest quality aluminum with the aid of pioneering techniques at our vendor’s end. Also, this system is extensively demanded for use in several industrial operations.



Features:

• High durability
• Weather resistance
• Easy to operate



Specifications:

•  DK-20: Single-channel compact portable system for full cylinder pressure analysis and automatic diagnostic
• DK-20/FV: Dual simultaneous channel compact portable system for cylinder pressure plus fuel pressure analysis and automatic diagnostic
• DK-100: Multichannel portable system for simultaneous data collection and real-time analysis, diagnostic, and observation of corrective actions
• DK-200: On-line systems provide continuous monitoring of engines up to 30 cylinders
• Up to eight engines can be monitored on one vessel and linked to an onboard PC running the online software



Application:

• This equipment can provide exact health details of the engine
• Faults, if any, including non-synchronous behavior of the cylinders, will also be indicated
•  Details of power developed by each cylinder and also by all the cylinders together are calculated and displayed
•  The unit is portable and can be taken to any location or ship to carry out the realistic assessment of engine health in the field whenever doubt arises about the same
•  Many more as explained in the literature attached



Benefits:

•  Saves fuel
•  Minimizes harmful SOx and NOx emissions
• Cuts downtime
•  Pinpoints problems that are starting to develop
•  Provides detailed and accurate information on engine health
• Optimizes engine efficiency
•  Advantageous for old vessels using obsolete offline engine monitoring technology
• Designed for real marine users
• Comprehensive analysis, trending, and reporting software
• Proven reliability, accuracy, ease of use, and durability — more than 9, 000 units in use

 The software enables fleet-wide engine comparisons to be carried out at the click of a button. Features such as shop & sea trial comparisons, standard or customized engine reports, and the comprehensive analysis features for which the Doctor software is renowned have combined to make it the first choice for thousands of diesel engine operators.

 The software can be downloaded or provided on a USB key along with a guide to enable the operator to quickly familiarize himself with the application. The intuitive nature of the functions makes the learning process even easier.

 The software is supplied with a suite of sample engine measurements to experiment with.

 There is no restriction on the number of computers that the software can be used on, so engine measurements can be freely passed between operators, analysts, and managers.Any standard desktop or laptop PC with Windows™ 7 or 10 can be used.

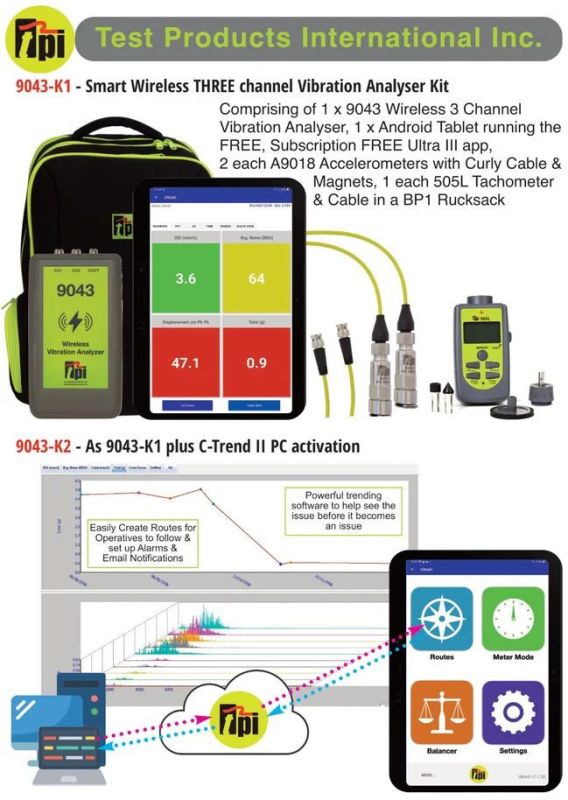

We offer a cutting-edge Triaxial Wireless Vibration Analyzer in sleek black color, certified with ISO 9001:2008 for top-notch quality. This lightweight analyzer is perfect for vibration analysis and monitoring, featuring wireless connectivity and a rechargeable battery for convenience. The LCD screen provides clear readings, while the IP-rated design ensures durability. With a battery life of up to 15 hours, this analyzer is ideal for on-the-go use. Suitable for exporters, suppliers, and importers looking for reliable vibration analysis tools.

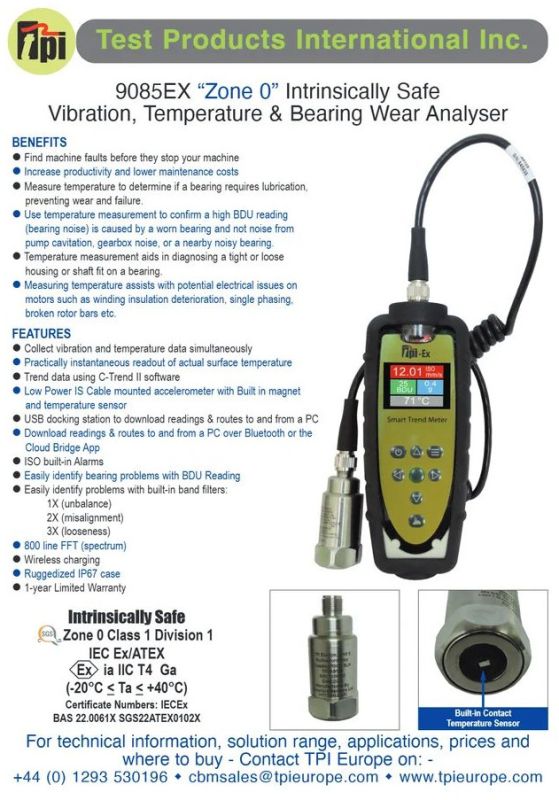

The Vib Meter 9085-Ex is an intrinsically safe, simple-to-use vibration monitoring and analysis tool that allows easy display of vibration signals.

The meter automatically performs vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment, and looseness, as well as indicating the degree of bearing wear.



The Vib Meter 9085-Ex unit is designed to enable a user to collect vibration and temperature measurements from assets (e.g., pumps, motors, fans, and bearings). The unit displays vibration frequency plots and allows vibration severity and bearing condition to be monitored, analyzed, and trended with the included C-Trend II PC analysis software.



C-Trend II software gives greater ease of use and flexibility.

• Store, analyze, and report on all your vibration parameters in one place
•  All information is just a click away
• Color-coded alarms highlight problems
•  Trend lines show problems before they happen

Overall machine and bearing conditions:** Vibration values are displayed with color-coded alarm levels for ISO values and Bearing Damage Units (BDU).



9085-Ex Smart Vibration Meter:

Identify complex issues: 800-line spectrum with zoom and cursor

The Vib Meter 9085-Ex and C-Trend II is the latest easy-to-use, high-specification maintenance tool, offering high-level functionality and capability at an extremely low cost.

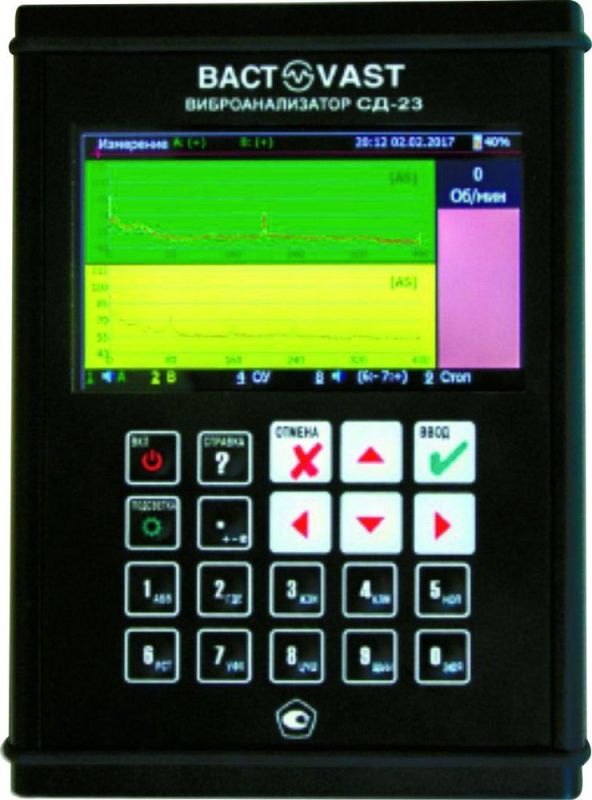

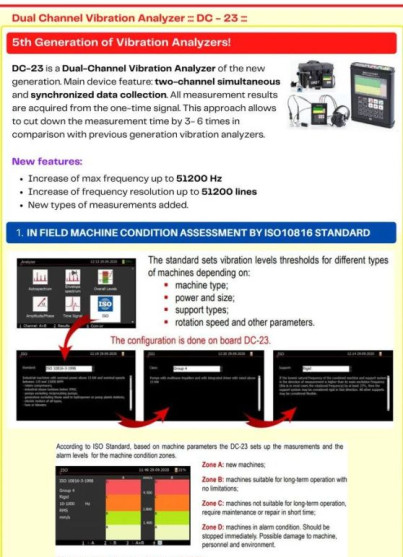

5th generation of vibration analyzers!

DC-23 is a dual-channel vibration analyzer of the new generation.Main device feature – two-channel simultaneous and synchronized data collection. All measurement results are acquired from a single time signal.This approach allows cutting down the measurement time by 3–6 times in comparison with previous-generation vibration analyzers.



New Features:

• Increase of max frequency up to 51, 200 Hz
•  Increase of frequency resolution up to 51, 200 lines
• New types of measurements added



Technical Specifications

Input

• Channels: 2 analog channels, 1 synchronization channel
• Converter types: Accelerometer, current clamp, tacho, microphone
• Frequency range: 0.5 – 51, 200 Hz
• Non-linearity of AFR: ±5% (0.5 dB)
• Channel interference: –100 dB



Vibration Parameters

•  Measured parameters: Displacement, velocity, acceleration
•  Detector: RMS, peak, peak-to-peak, peak factor
• Measurement of vibration broadbands according to GOST:
•  2–1000, 10–1000, 10–2000 Hz
•   2–200, 3–300, 5–500, 10–5000, 500–2500 Hz
•   625–2500, 1200–2500, 2500–5000, 5000–10000 Hz
•   Additional: 10000–25000, 17000–25000 Hz



General Info

• Protection: IP65 (dust- and moisture-proof)
•  Operating temperature range: –20 to +50 °C
• Device weight without sensors: 1 kg
•  Dimensions: 143 × 194 × 39 mm
•  Operating time: ≥8 hrs.
•  Charging time: ≤4.5 hrs.

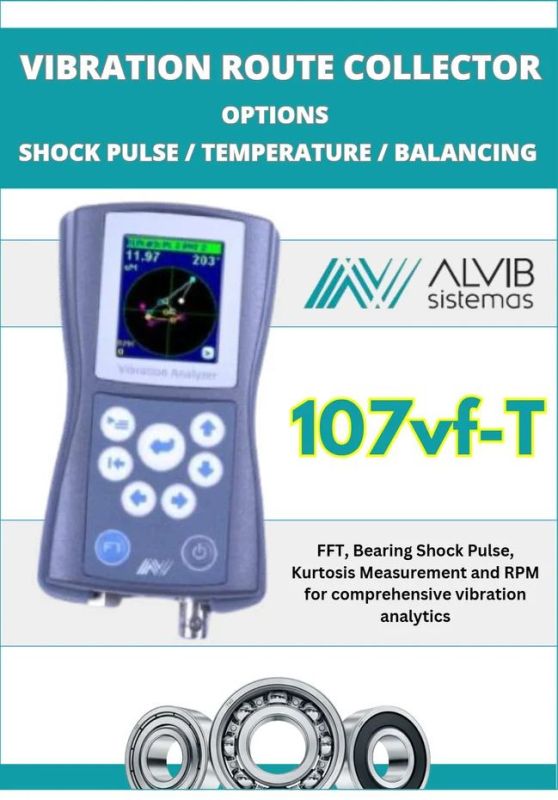

We provide a top-quality Vibration Measurement Equipment Data Collector certified with ISO 9001:2008 standards. This equipment is designed for measuring acceleration with RMS detection and a frequency range of 0.5 Hz to 50 KHz. With an accuracy of +/-2% of reading, it ensures precise results. The data collector can store up to 500-1000 waveforms for analysis, including time waveform and FFT support. Connectivity options include USB/Ethernet for easy PC data transfer. Ideal for exporters, suppliers, and importers seeking reliable vibration measurement solutions.

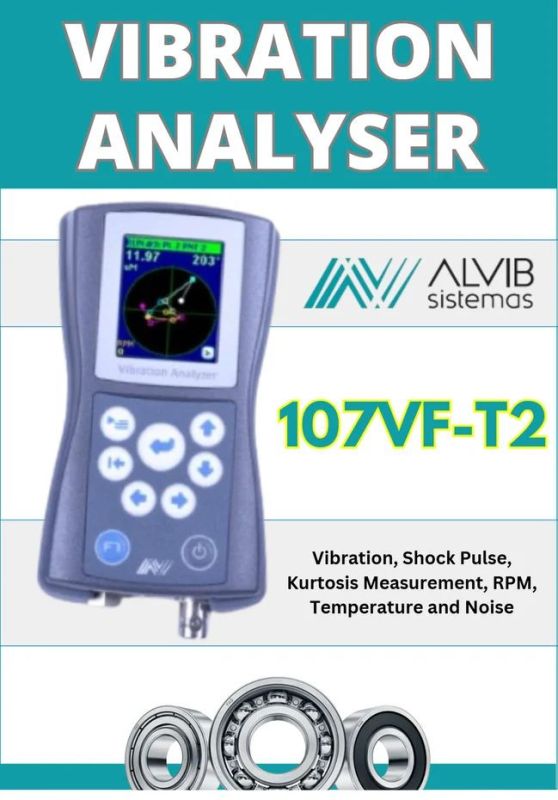

The 107VF-T2 Vibration Analyzer (Device, Analyzer) is a compact yet powerful vibration analyzer designed to measure overall vibration parameters, FFT spectrum analysis of rotating machinery, immediate evaluation against ISO 10816 standard, balancing of rotating machinery, and condition monitoring by route-based measurements and data collection. Route files and data files exchange via email make it ideal for data collection at remote sites. Simple to use, with free firmware upgrades, and comes with data management and reporting software.



Features

• Possibility to obtain trends of vibration variation with the help of "ConSpect" software
•  Time waveform analysis
• Display of peak-to-peak, RMS, and peak vibration values
• Non-contact infrared tachometer for measuring rotational speed
•  Built-in rechargeable battery
•  Fast, easy, and reliable diagnosis of rolling element bearing condition
•  Easy-to-understand condition evaluation in green-yellow-red scales
• -Precision analysis of oil film condition in the interface between the outer and inner races
•  Spectrum analysis to verify the source of high shock pulse
•  Optional temperature measurement and advanced route management software VibAnalyst
•  Optional noise measurement

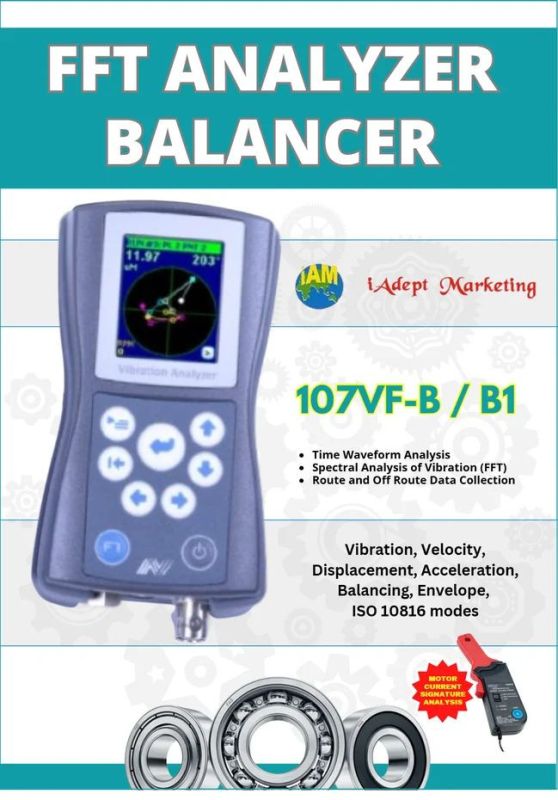

The 107VF-B / B1 / FFT Analyzer / Balancer (Device, Analyzer) is a compact yet powerful vibration analyzer designed to measure overall vibration parameters, FFT spectrum analysis of rotating machinery, immediate evaluation against ISO 10816 standard, balancing of rotating machinery, and condition monitoring by route-based measurements and data collection. Route files and data files exchange via email make it ideal for data collection at remote sites. Simple to use, with remote firmware upgrades, and comes with data management and reporting software.



Features:



• Possibility to obtain trends of vibration variation with the help of "ConSpect" software
• Time waveform analysis
• Display of peak-to-peak, RMS, and peak vibration values
•  Non-contact infrared tachometer for measuring rotational speed
• Built-in rechargeable battery
• Envelope spectrum for bearing fault detection
• Spectrum analysis to verify the source of high shock pulse
•  Single- or 4-plane balancing
• Optional temperature measurement and advanced route management software VibAnalyst FFTGraph2™

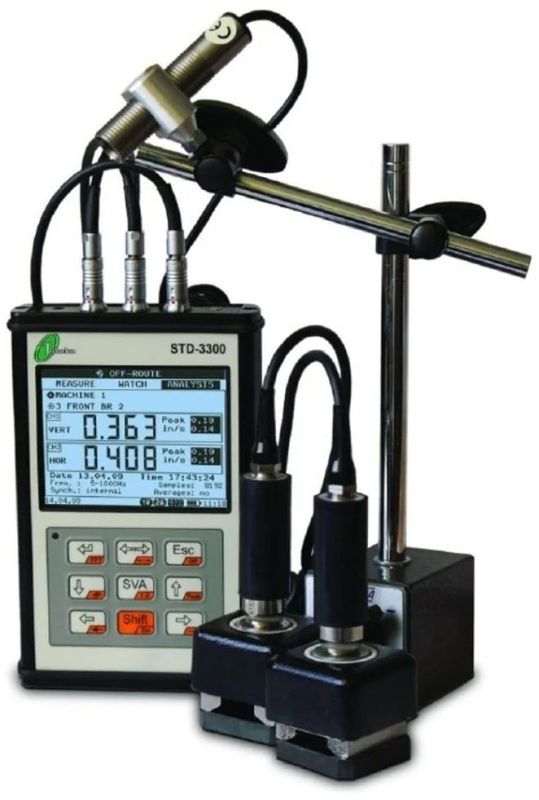

STD-3300 is a powerful two-channel vibration analyzer that makes it possible to collect and analyze synchronous two-channel data. Impressive diagnostic features and a balancing function make this analyzer a key tool for detecting machinery faults.



Highlights:

• Auto-detection of sensor type and parameters; works with any ICP sensors, proximitors, etc.
•  Warning and alarm thresholds
•  Complete data analysis on-site (waveforms, spectrum, filtration, orbits, etc.)
•  Long signals collection and further analysis
• Run-up/Coast-down
• Real-time analysis
•  1- or 2-plane balancing
•  Free firmware updating
• Fully compatible with the Vibrodesigner-Standard analysis software
•  STD-3300 can be connected to online condition monitoring systems





The 107VF Vibration Analyzer (Device, Analyzer) is a compact yet powerful vibration analyzer designed to measure overall vibration parameters, FFT spectrum analysis of rotating machinery, immediate evaluation against ISO 10816 standard, and condition monitoring by route-based measurements and data collection. Route files and data files exchange via email make it ideal for data collection at remote sites. Simple to use, with free firmware updates, and comes with data management and reporting software.

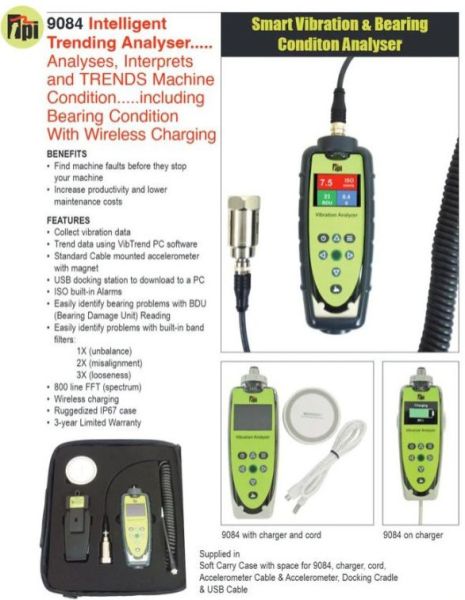

^{The Vib Meter 9084 is a simple to use vibration monitoring and analysis tool that allows easy display of vibration signals.}

The meter automatically performs vibration analysis functions based on machine running speed to help diagnose faults such as unbalance, misalignment and looseness, as well as indicating the degree of bearing wear.

The Vib Meter 9084 unit is designed to enable a user to collect vibration measurements from assets (e.g. pumps, motors, fans and bearings). The unit displays vibration frequency plots and allows vibration severity and bearing condition to be monitored, analysed and trended with the included VibTrend PC analysis software.

VibTrend software gives you greater ease of use and flexibility.

• Store analyse and report on all your vibration parameters in one place.
• All information is just a click away. Colour coded alarms highlight problems. Trend lines show problems before they happen.

Overall machine and bearing conditions: vibration values are displayed with colour coded alarm levels for ISO values and Bearing Damage Units (BDU).

9084 Smart Vibration Meter

Identify complex issues: 800-line spectrum with zoom and cursor.

The Vib Meter 9084 and VibTrend is the latest easy to use high specification maintenance tool offering high level functionality and capability at extremely low cost.

VibAnalystTM is essentially a Vibration Data Management and Analys is stands UNIQUE in many ways and excels through a versatility of application anddata management. It is designed to be a utility reducing planned and unplannedstoppages in any plant.
