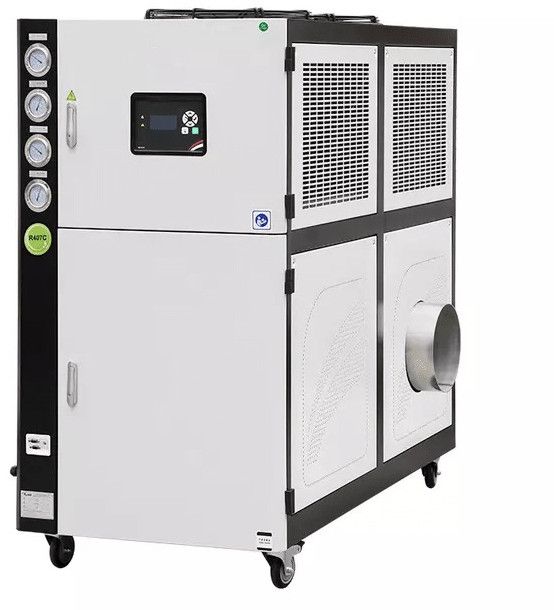

Our product range contains a wide range of 12 TR Air Cooled Air Chiller/ Air Chiller
2. Technical Specifications
| Parameter | Specification |
| Model | FMACA 12 |
| Nominal Cooling Capacity | 43 kW (12.6 TR) |
| At Air outlet temperature | 15 C |
| Design Air Flow Rate | 3000 m/hr |
| Ambient Temperature | 40C |
| Control Range | +5 to +20 C |
| Cooling Circuit | 1 No. |
| Cooling Agent | R22 |
| No. of Compressor | 2 Nos. |
| No. of Gas Circuit | 2 No. |
| No. of Fan / Fan Power | 2 Nos. / 2.63 kW each |
| Compressor Power | 6.32 kW 2 |
| Maximum Air Flow Rate | 3000 m/hr |
| Minimum Air Flow Rate | 1200 m/hr |
| Pressure Drop of Air Through Evaporator | 150 Pa |
| Air Connection IN / OUT | 200 mm |
| Air Temperature IN / OUT | 40C / 15C |
| Relative Humidity |
|
| Electrical Power Supply | 415V, 50 Hz, 3 phase |
| Control Voltage | 24V DC |
| Condenser And Evaporator MOC | Copper And Aluminum |
| Copper tube | Silver Coted |
| Fines | Anticorrosion Coting |
| Total Connected Load | 15.27 kW |
| Main Dimensions (W D H) | 2350 2550 2350 mm |
| Weight | 1300 kg |
| Color | Gray and Off White |

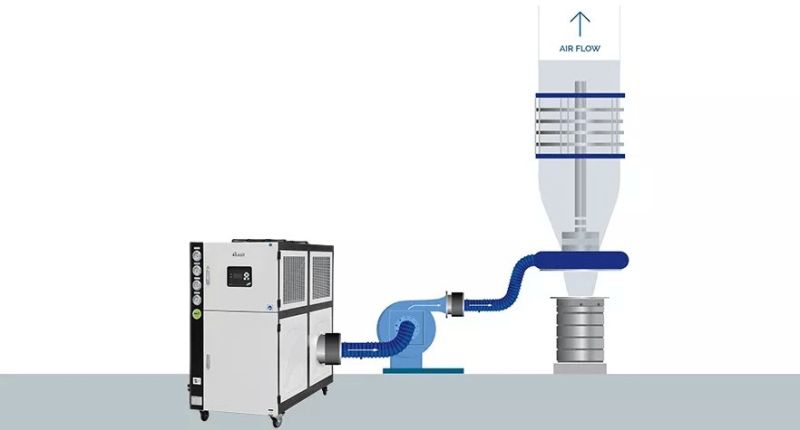

| Air Cooled Air Chiller Require Fresh Air Suction on Condenser side and hot exhaust on top of the chiller | |
3. Make of Components
| Component | Make |
| Compressor | Emerson / Danfoss |
| Evaporator | Aquatech Plus |
| Condenser | Aquatech Plus |
| VFD (Optional) | Frecon |
| Expansion Valve | Danfoss |
| Control Panel | Aquatech Plus |
| Filter | Aquatech Plus |
| Solenoid Valve | Danfoss |
| Flow Switch | Castle |
| Pressure Switch | Danfoss |
4. Key Features
5. Commercial Terms & Conditions
Additional Information:
Payment Terms : D/P
Packaging Details : STANDARD PACKAGING
Delivery Time : 15 days
