Aquatechplus Pvt. Ltd.

Kuvadva Road, Rajkot, Gujarat

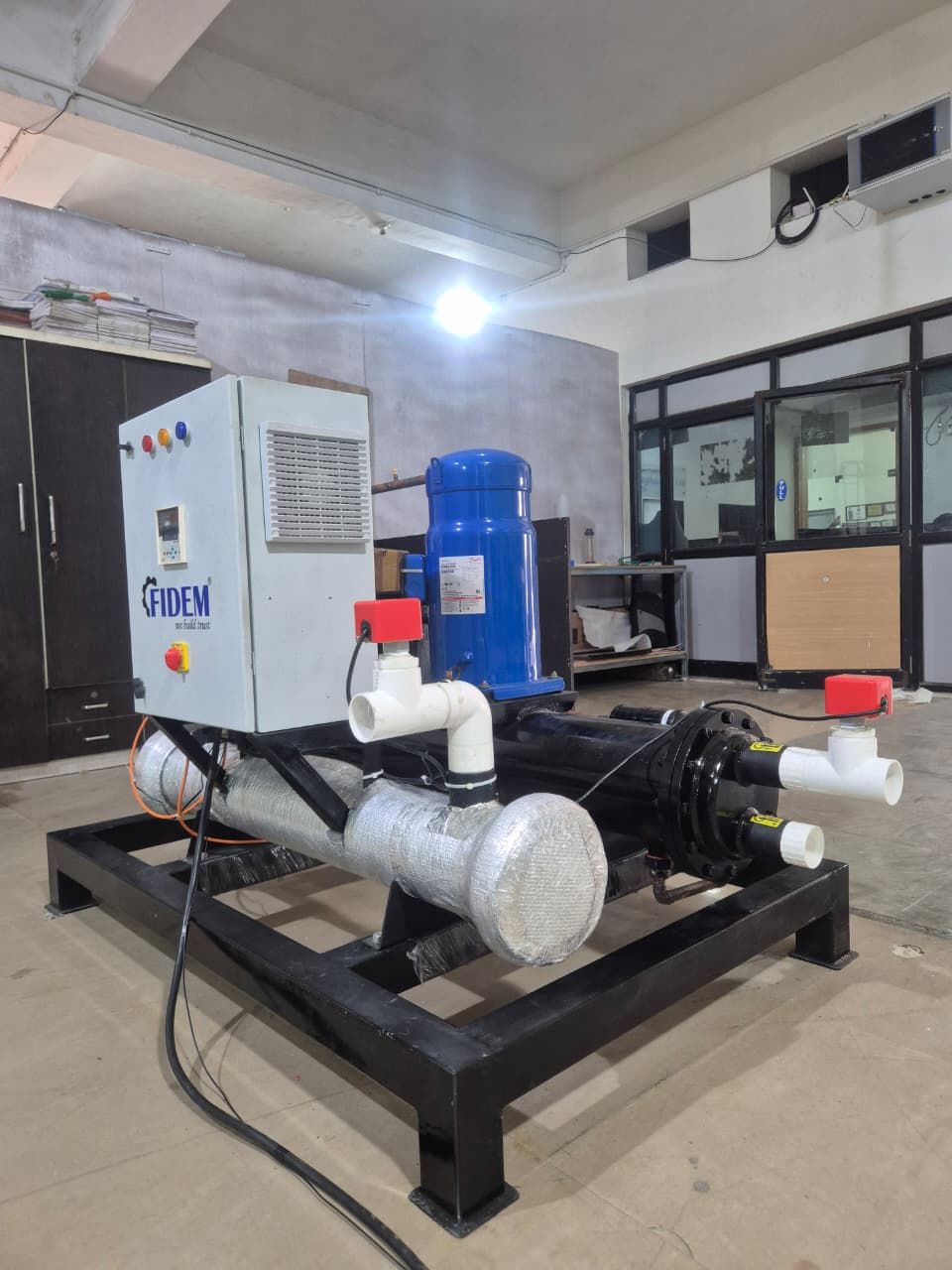

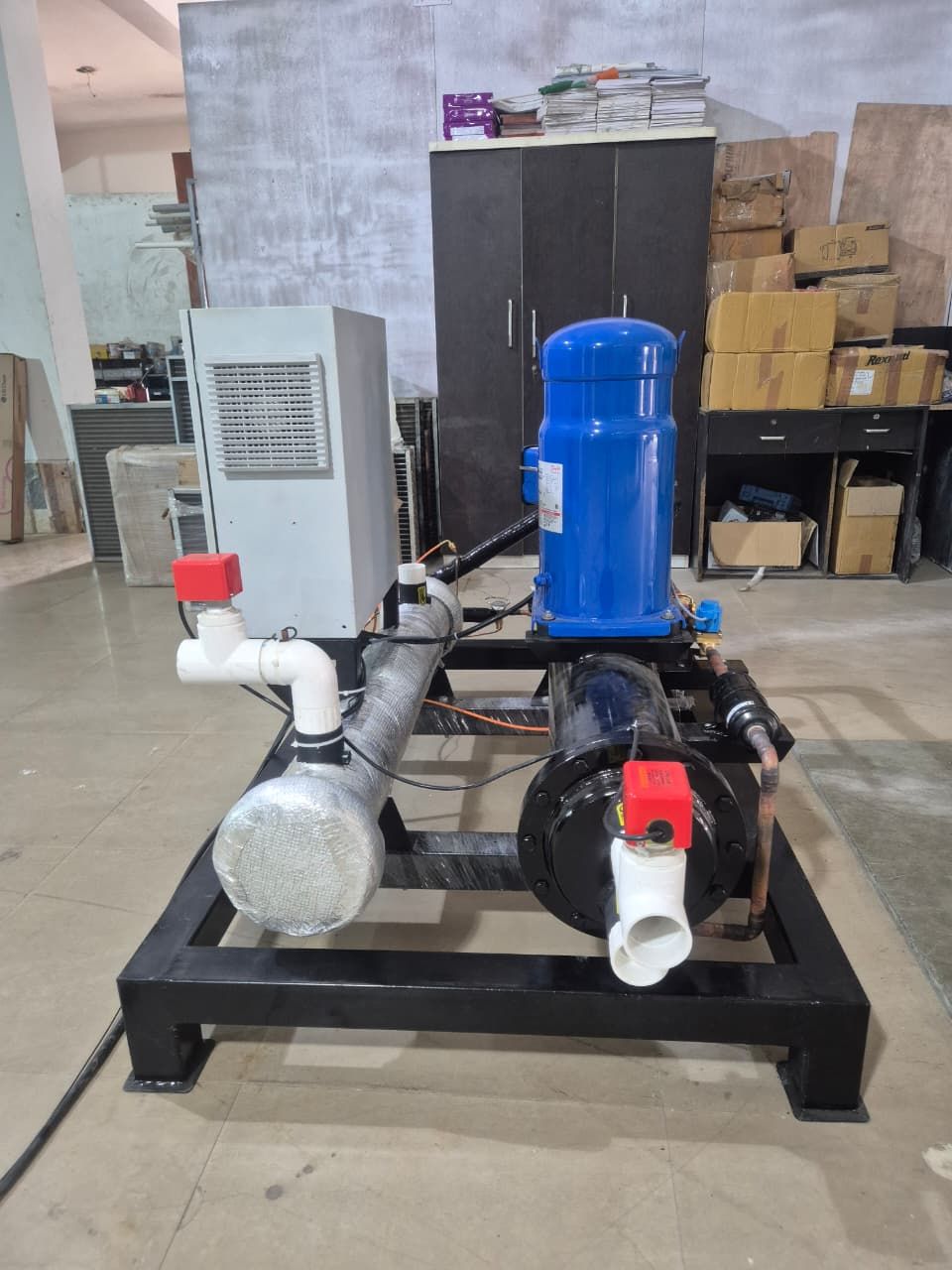

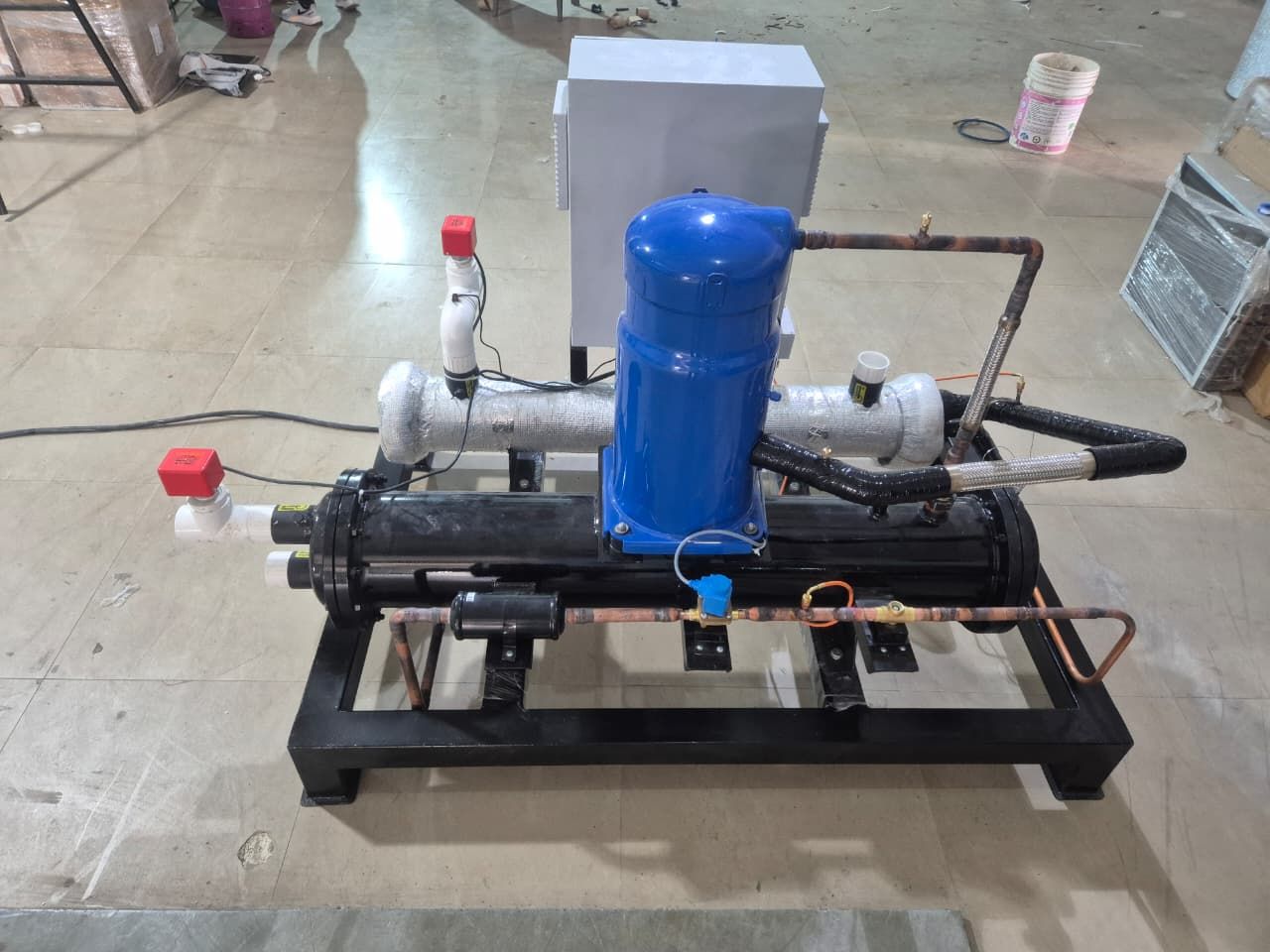

2. CONDENSER DETAILS (WATER COOLED SHELL & TUBE)

2. CONDENSER DETAILS (WATER COOLED SHELL & TUBE)

2. CONDENSER DETAILS (WATER COOLED SHELL & TUBE)

2. CONDENSER DETAILS (WATER COOLED SHELL & TUBE)

TECHNICAL SPECIFICATION

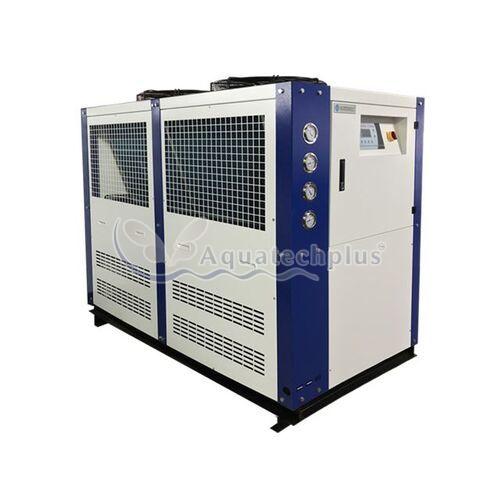

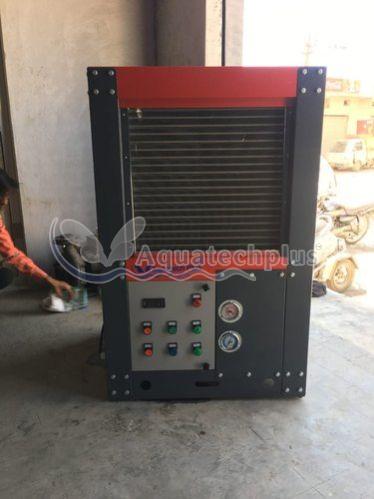

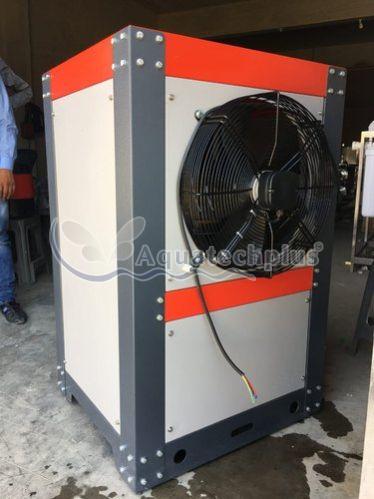

20 TR AIR COOLED SCROLL TYPE WATER CHILLER

20 TR AIR COOLED SCROLL TYPE WATER CHILLER

20 TR AIR COOLED SCROLL TYPE WATER CHILLER

20 TR AIR COOLED SCROLL TYPE WATER CHILLER

20 TR AIR COOLED SCROLL TYPE WATER CHILLER

20 TR AIR COOLED SCROLL TYPE WATER CHILLER

The FM2-275X57XH air-cooled chiller is developed to provide a nominal cooling capacity of 274.0 TR (approximately 962 kW) and is built with two independent refrigeration circuits, ensuring reliable, continuous, and stable operation under varying load conditions. The unit is suitable for operation on a three-phase, 415 V, 50 Hz electrical supply, with a total connected electrical load of 304.0 kW and a full-load current of approximately 490 A. The refrigeration system utilizes R134a refrigerant, with accurate refrigerant flow and capacity regulation achieved through an expansion valve operating in a flooded system arrangement, resulting in smooth system operation and enhanced energy efficiency. The chiller is designed to operate at an evaporating saturated suction temperature (SST) of +5.6 C, corresponding to a leaving chilled water temperature (LWT) of 6.07 C. The heat rejection system is rated for a condensing temperature of +45 C SDT under a maximum ambient temperature of +46 C. The unit supports a chilled water operating temperature range of 5 C to 20 C, with a chilled water flow requirement of 415.3 L/s (approximately 1495 m/h), corresponding to an effective temperature difference of approximately 5.6 C. The system is fitted with a flooded shell-and-tube evaporator, designed to deliver efficient heat transfer and consistent thermal performance. The evaporator shell is constructed from powder-coated carbon steel, while the heat exchange tubes are made of copper, supported by carbon steel baffles and headers. The evaporator is designed for a water-side design pressure of 15.0 kg/cm and is hydrostatically tested at approximately 22 bar. Chilled water connections are provided via DN150 (approximately 6 NB) flanged nozzles, suitable for the specified flow conditions. To minimize heat gain and prevent surface condensation, the evaporator is insulated with 40 mm thick PUF insulation. The refrigeration package includes two semi-hermetic flooded screw compressors, equipped with a star-delta starting arrangement to reduce starting current and mechanical stress during startup. Cooling capacity modulation is achieved through step or slide valve control, enabling efficient operation during partial-load conditions and improved IPLV performance. The total installed compressor power is 264 kW, ensuring dependable and robust cooling performance across a wide range of operating conditions. Heat rejection is achieved through an air-cooled condenser comprising copper tubes with aluminum fins, mounted on a galvanized steel structural frame for enhanced durability and corrosion resistance. The condenser is designed for a total airflow capacity of 394, 168 CMH, generated by 16 axial-type, low-noise fans, each having a 910 mm diameter, in line with standard design practices for a 275 TR capacity unit. The total installed fan power is 40.0 kW, with each fan driven by a 2.5 kW motor, ensuring effective heat dissipation even under high ambient conditions. The chiller is supplied without an integral chilled water pump, and therefore external pumps are to be provided by the client, with pump head and selection to be finalized based on site-specific requirements. The unit is equipped with comprehensive safety and protection systems, including compressor over-temperature protection, high- and low-pressure safety switches, over-current and over-temperature protection, flow switch, phase sequence and phase failure protection, and oil safety devices, ensuring safe and reliable system operation. The electrical control system is housed in a factory-assembled and pre-wired electrical control panel, incorporating a PLC and HMI for monitoring and control, along with MCCBs, contactors, overload relays, timers, and auxiliary relays, enabling user-friendly operation, system protection, and advanced fault diagnostics. The overall dimensions of the chiller are 9610 mm (Length) 2825 mm (Width) 2547 mm (Height), with an approximate running weight of 9860

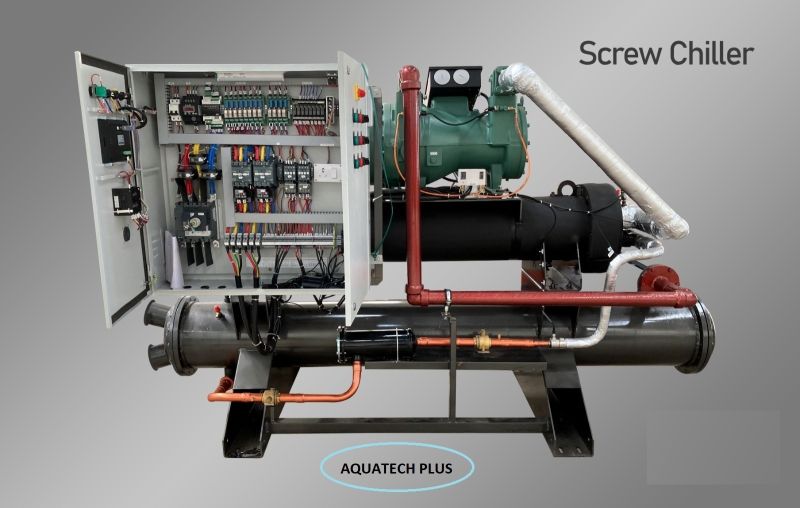

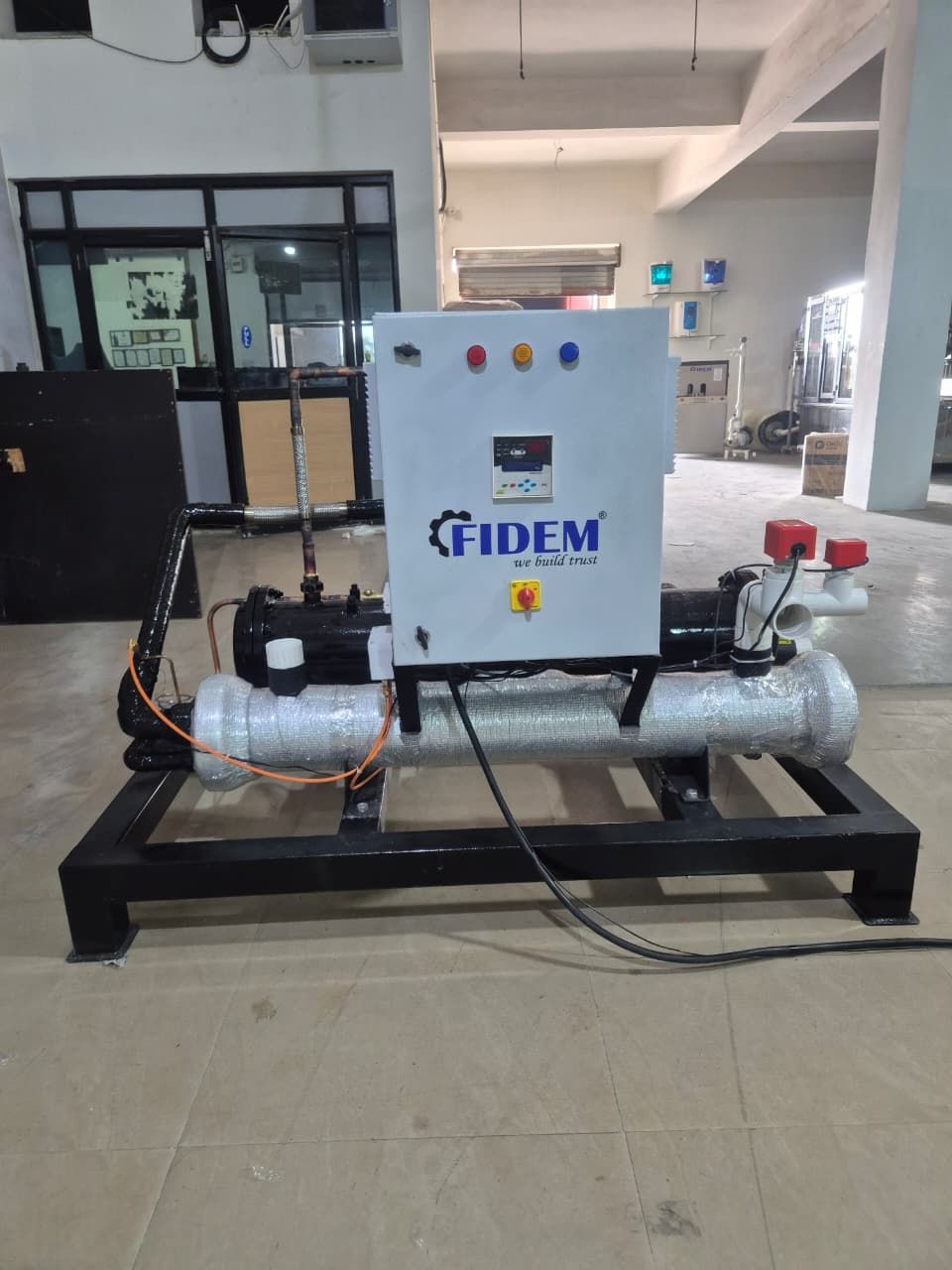

The FIDEM water-cooled glycol screw chiller, specified as model FM-GWCS-170-407C, is designed to provide a rated cooling capacity of 170 TR (approximately 599 kW) and operates using R407C refrigerant, ensuring efficient, uniform, and dependable heat transfer. The unit is equipped with two completely independent refrigeration circuits, offering a high level of operational reliability, inherent redundancy, and stable cooling performance over a wide range of load conditions. It is suitable for operation on a three-phase, 415 V, 50 Hz electrical supply, with an estimated connected power requirement of 140 kW and a full-load operating current of approximately 230 A. Precise refrigerant metering and effective capacity control are achieved through an electronic expansion valve, allowing fast system response and improved energy efficiency during part-load operation.

The chiller incorporates a shell-and-tube type evaporator specifically developed for chilled glycol applications and operates at a saturated suction temperature (SST) of +5 C. The evaporator is designed for a glycol temperature range of 0 C at inlet to 15 C at outlet, delivering a glycol flow rate of 100, 000 LPH, corresponding to an effective temperature difference of approximately 5 C. The evaporator assembly consists of two circuits and provides a net cooling output of approximately 600 kW. The evaporator shell is constructed from 10 mm thick seamless carbon steel, while heat transfer is achieved through internally grooved copper tubes arranged in a U-bundle configuration to enhance thermal efficiency. The evaporator is provided with DN150 flanged connections and is designed for a maximum water-side pressure drop of 0.4 bar, a water-side design pressure of 10 bar, and a refrigerant-side design pressure of 25 bar.

Chilled glycol circulation is ensured by a centrifugal monoblock pump supplied as part of the chiller package. The pump is rated for a flow capacity of 90, 000 LPH at a total developed head of 15 meters and is driven by a 7 kW electric motor, ensuring continuous and reliable glycol circulation through the evaporator and the connected process piping network.

The water-cooled condenser, also of shell-and-tube construction, is designed to operate at a saturated discharge temperature (SDT) of +35 C. The condenser is capable of rejecting a total heat load of 720 kW and features a carbon steel shell with epoxy coating to improve corrosion resistance and extend service life. The condenser heat transfer surface comprises plain copper tubes assembled in a removable bundle, allowing easy access for inspection and routine maintenance. The condenser is designed for a cooling water flow rate of 100, 000 LPH, fitted with DN200 flanged inlet and outlet connections, and maintains a water-side pressure drop not exceeding 0.4 bar. The design pressure limits are 10 bar on the water side and 30 bar on the refrigerant side.

Cooling water circulation through the condenser is provided by a centrifugal monoblock pump rated for 100, 000 LPH at a head of 10 meters. The pump is driven by a 7.5 kW motor, suitable for operation on a 380415 V, 50 Hz electrical supply, ensuring efficient and stable condenser water circulation.

The refrigeration system is fitted with compact screw compressors designed for continuous-duty operation, heavy-load service, and long service life. Compressor capacity control is achieved through step modulation, with unloading stages of 25%, 50%, 75%, and 100%, enabling efficient performance under partial-load conditions. Compressor starting is carried out using a star-delta starting arrangement. The compressor package delivers a rated cooling capacity of 599 kW, with a power input of approximately 121 kW, operating at a full-load current of around 201 A at 400 V, and is suitable for a voltage operating range of 380415 V.

The FIDEM water-cooled glycol screw chiller, designated as model FM-GWCS-170-407C, is engineered to deliver a rated refrigeration capacity of 170 TR (approximately 599 kW) and operates on R407C refrigerant, ensuring efficient, stable, and uniform heat transfer performance. The unit is configured with two fully independent refrigeration circuits, providing high operational dependability, built-in redundancy, and consistent cooling output across a wide range of load conditions. The chiller is designed for connection to a three-phase, 415 V, 50 Hz electrical supply, with an estimated connected power demand of 140 kW and a full-load current of approximately 230 A. Accurate refrigerant flow management and capacity regulation are achieved through an electronic expansion valve, enabling rapid response to load variations and improved efficiency during part-load operation.

The system incorporates a shell-and-tube evaporator purpose-built for chilled glycol service and operates at a saturated suction temperature (SST) of +5 C. The evaporator is designed to accommodate a glycol temperature range from 0 C at inlet to 15 C at outlet, delivering a glycol circulation rate of 100, 000 LPH, corresponding to an effective temperature differential of approximately 5 C. The evaporator assembly consists of two circuits and provides a net cooling output of approximately 600 kW. The evaporator shell is fabricated from 10 mm thick seamless carbon steel, while heat exchange is achieved through internally grooved copper tubes arranged in a U-bundle configuration to enhance thermal performance. The evaporator is provided with DN150 flanged connections and is designed for a maximum water-side pressure drop of 0.4 bar, a water-side design pressure of 10 bar, and a refrigerant-side design pressure of 25 bar.

Reliable circulation of chilled glycol is ensured by a centrifugal monoblock pump supplied as part of the chiller package. The pump is rated for a flow capacity of 90, 000 LPH at a total developed head of 15 meters and is driven by a 7 kW electric motor, ensuring continuous and dependable glycol circulation through the evaporator and the associated process piping network.

The water-cooled condenser, also of shell-and-tube construction, is designed to operate at a saturated discharge temperature (SDT) of +35 C. The condenser is capable of rejecting a total thermal load of 720 kW and features a carbon steel shell with epoxy coating to enhance corrosion resistance and extend service life. The condenser heat transfer surface comprises plain copper tubes assembled in a removable bundle, allowing convenient access for inspection and routine maintenance. The condenser is designed for a cooling water flow rate of 100, 000 LPH, fitted with DN200 flanged inlet and outlet connections, and maintains a water-side pressure drop not exceeding 0.4 bar. The design pressure ratings are 10 bar on the water side and 30 bar on the refrigerant side.

Cooling water circulation through the condenser is provided by a centrifugal monoblock pump rated for 100, 000 LPH at a head of 10 meters. The pump is driven by a 7.5 kW motor, suitable for operation on a 380415 V, 50 Hz electrical supply, ensuring stable and efficient condenser water circulation.

The refrigeration system incorporates compact screw compressors designed for continuous-duty operation, heavy-load service, and long-term reliability. Compressor capacity regulation is achieved through step modulation, with unloading stages of 25%, 50%, 75%, and 100%, enabling efficient system operation under partial-load conditions. Compressor starting is accomplished using a star-delta starting arrangement. The compressor package delivers a rated cooling capacity of 599 kW, with a power input of approximately 121 kW, operating at a full-load current of around 201 A at 400 V, and is suitable for a voltage operating range of 380415 V.

The FIDEM water-cooled glycol screw chiller, specified as model FM-GWCS-170-407C, is designed to provide a rated cooling capacity of 170 TR (approximately 599 kW) and operates using R407C refrigerant, ensuring efficient, uniform, and dependable heat transfer. The unit is equipped with two completely independent refrigeration circuits, offering a high level of operational reliability, inherent redundancy, and stable cooling performance over a wide range of load conditions. It is suitable for operation on a three-phase, 415 V, 50 Hz electrical supply, with an estimated connected power requirement of 140 kW and a full-load operating current of approximately 230 A. Precise refrigerant metering and effective capacity control are achieved through an electronic expansion valve, allowing fast system response and improved energy efficiency during part-load operation.

The chiller incorporates a shell-and-tube type evaporator specifically developed for chilled glycol applications and operates at a saturated suction temperature (SST) of +5 C. The evaporator is designed for a glycol temperature range of 0 C at inlet to 15 C at outlet, delivering a glycol flow rate of 100, 000 LPH, corresponding to an effective temperature difference of approximately 5 C. The evaporator assembly consists of two circuits and provides a net cooling output of approximately 600 kW. The evaporator shell is constructed from 10 mm thick seamless carbon steel, while heat transfer is achieved through internally grooved copper tubes arranged in a U-bundle configuration to enhance thermal efficiency. The evaporator is provided with DN150 flanged connections and is designed for a maximum water-side pressure drop of 0.4 bar, a water-side design pressure of 10 bar, and a refrigerant-side design pressure of 25 bar.

Chilled glycol circulation is ensured by a centrifugal monoblock pump supplied as part of the chiller package. The pump is rated for a flow capacity of 90, 000 LPH at a total developed head of 15 meters and is driven by a 7 kW electric motor, ensuring continuous and reliable glycol circulation through the evaporator and the connected process piping network.

The water-cooled condenser, also of shell-and-tube construction, is designed to operate at a saturated discharge temperature (SDT) of +35 C. The condenser is capable of rejecting a total heat load of 720 kW and features a carbon steel shell with epoxy coating to improve corrosion resistance and extend service life. The condenser heat transfer surface comprises plain copper tubes assembled in a removable bundle, allowing easy access for inspection and routine maintenance. The condenser is designed for a cooling water flow rate of 100, 000 LPH, fitted with DN200 flanged inlet and outlet connections, and maintains a water-side pressure drop not exceeding 0.4 bar. The design pressure limits are 10 bar on the water side and 30 bar on the refrigerant side.

Cooling water circulation through the condenser is provided by a centrifugal monoblock pump rated for 100, 000 LPH at a head of 10 meters. The pump is driven by a 7.5 kW motor, suitable for operation on a 380415 V, 50 Hz electrical supply, ensuring efficient and stable condenser water circulation.

The refrigeration system is fitted with compact screw compressors designed for continuous-duty operation, heavy-load service, and long service life. Compressor capacity control is achieved through step modulation, with unloading stages of 25%, 50%, 75%, and 100%, enabling efficient performance under partial-load conditions. Compressor starting is carried out using a star-delta starting arrangement. The compressor package delivers a rated cooling capacity of 599 kW, with a power input of approximately 121 kW, operating at a full-load current of around 201 A at 400 V, and is suitable for a voltage operating range of 380415 V.

The FIDEM water-cooled screw chiller, identified by model FM-WCS-200-407C, is designed to deliver a nominal refrigeration capacity of 200 TR (approximately 703 kW) and operates using R407C refrigerant across two separate refrigeration circuits, ensuring consistent and reliable system performance. The unit is configured for three-phase electrical power supply at 415 V and 50 Hz, with an overall connected electrical demand of nearly 150 kW, corresponding to a full-load current of about 243 A. Cooling capacity regulation is achieved through the use of electronic expansion valves, in combination with step or stepless unloading control, enabling modulation at 25%, 50%, 75%, and 100% capacity levels for enhanced efficiency during partial-load operation. The chiller functions at a saturated suction temperature of 10 C and is suitable for delivering chilled water within an operating temperature band of 15 C to 20 C.

The evaporator section comprises a shell-and-tube type heat exchanger with two independent circuits, designed to handle a chilled water flow of roughly 26, 500 LPH at an approximate temperature difference of 23 C, providing a refrigeration output of 703 kW. The evaporator shell is manufactured from 10 mm thick seamless carbon steel, while the heat exchange tubes are made from internally grooved copper, arranged in a U-bundle configuration to enhance heat transfer efficiency. The evaporator is furnished with 6-inch water connections and is designed for a maximum water-side pressure drop of 0.4 bar, a water-side design pressure of 10 bar, and a refrigerant-side design pressure of 25 bar. Chilled water circulation is ensured by a centrifugal monoblock pump rated for 120, 000 LPH at a head of 16.3 m, driven by an 11 kW motor.

The condenser is also of shell-and-tube construction, suitable for water-cooled duty at a saturated discharge temperature of +35 C, and is capable of rejecting approximately 718 kW of heat. The condenser shell is fabricated from carbon steel with an epoxy protective coating, and the tube bundle consists of plain copper tubes. It is equipped with 6-inch cooling water connections and is designed to accommodate a cooling water flow rate of 140, 000 LPH, with a maximum water-side pressure loss of 0.4 bar. The condenser is rated for a water-side design pressure of 10 bar and a refrigerant-side design pressure of 30 bar. Cooling water circulation is provided by a centrifugal monoblock pump with a capacity of 140, 000 LPH at 15.7 m head, powered by an 11 kW motor, suitable for operation on 380415 V, 50 Hz power supply.

The chiller is fitted with a compact screw-type compressor, engineered for reliable continuous operation, and supplied with star-delta starting as a standard feature. Variable frequency drive (VFD) operation can be offered as an option to further improve energy efficiency and provide smoother capacity modulation. The compressor is rated to deliver a cooling capacity of approximately 718 kW, with power consumption as per the manufacturers certified technical data.

The FIDEM water-cooled screw chiller, designated as model FM-WCS-200-407C, is engineered to deliver a nominal cooling capacity of 200 TR (approximately 703 kW) and operates on R407C refrigerant through two separate refrigerant circuits, ensuring consistent, stable, and reliable system operation. The unit is designed for three-phase power supply at 415 V and 50 Hz, with a total connected electrical load of around 150 kW, corresponding to a full-load current of approximately 243 A. Cooling capacity modulation is achieved by means of electronic expansion valves in conjunction with step or stepless unloading control, allowing precise capacity regulation at 25%, 50%, 75%, and 100% load conditions, thereby maintaining optimum efficiency during part-load operation. The chiller operates at a saturated suction temperature of 10 C and is capable of supplying chilled water in the temperature range of 15 C to 20 C.

The evaporator is a shell-and-tube type heat exchanger with two independent circuits, designed to handle a chilled water flow rate of approximately 26, 500 LPH at a temperature difference of about 23 C, delivering a refrigeration output of 703 kW. The evaporator shell is fabricated from seamless carbon steel with a wall thickness of 10 mm, while the heat transfer tubes are constructed from internally grooved copper tubes, arranged in a U-tube bundle configuration to enhance heat transfer performance. The evaporator is provided with 6-inch water inlet and outlet connections and is designed for a maximum water-side pressure drop of 0.4 bar, a water-side design pressure of 10 bar, and a refrigerant-side design pressure of 25 bar. Chilled water circulation is ensured by a centrifugal monoblock pump rated for 120, 000 LPH at a head of 16.3 m, driven by an 11 kW electric motor.

The condenser is also of shell-and-tube construction, suitable for water-cooled operation at a saturated discharge temperature of +35 C, with a heat rejection capacity of approximately 718 kW. The condenser shell is manufactured from carbon steel with epoxy coating for corrosion resistance, while the tube bundle consists of plain copper tubes. The condenser is fitted with 6-inch cooling water connections and is designed to accommodate a cooling water flow rate of 140, 000 LPH, with a maximum allowable water-side pressure drop of 0.4 bar. The condenser is rated for a water-side design pressure of 10 bar and a refrigerant-side design pressure of 30 bar. Cooling water circulation is provided by a centrifugal monoblock pump having a capacity of 140, 000 LPH at 15.7 m head, powered by an 11 kW motor, suitable for operation on 380415 V, 50 Hz power supply.

The chiller is fitted with a compact screw-type compressor, designed for continuous and dependable operation, and supplied with star-delta starting as a standard feature. Variable frequency drive (VFD) operation can be offered as an option to improve energy efficiency and provide smoother capacity control. The compressor is rated to deliver a cooling capacity of approximately 718 kW, with power input in accordance with the manufacturers certified performance data.

The FIDEM water-cooled screw chiller, model FM-WCS-200-407C, is designed to deliver a nominal cooling capacity of 200 TR (approximately 703 kW) and operates on R407C refrigerant. The unit is configured with two independent refrigeration circuits, ensuring reliable and stable performance under varying load conditions. It is suitable for operation on a three-phase, 415 V, 50 Hz power supply, with an approximate total connected electrical load of 150 kW and a full-load current of 243 A. Refrigerant flow is regulated through an electronic expansion valve, enabling precise capacity control and improved part-load efficiency.

The chiller is equipped with a shell-and-tube type evaporator designed for chilled water applications, operating at a saturated suction temperature (SST) of +10 C. The system is designed for a chilled water temperature range of 15 C inlet to 20 C outlet, with a total chilled water flow rate of 26, 500 LPH, corresponding to a temperature differential of approximately 23 C. The evaporator consists of two circuits and provides a cooling capacity of 703 kW. The shell is constructed from 10 mm thick seamless carbon steel, while the heat transfer tubes are made of internally grooved copper tubes arranged in a U-bundle configuration. The evaporator is provided with 6-inch flanged water connections, a maximum water-side pressure drop of 0.4 bar, a water-side design pressure of 10 bar, and a refrigerant-side design pressure of 25 bar.

A centrifugal monoblock chilled water pump is supplied with the system, rated for a flow capacity of 120, 000 LPH at a head of 16.3 meters. The pump is driven by an 11 kW electric motor, ensuring adequate circulation of chilled water through the evaporator and downstream process or air-conditioning equipment.

The water-cooled condenser is also of shell-and-tube construction and is designed to operate at a saturated discharge temperature (SDT) of +35 C. The condenser has a heat rejection capacity of 718 kW and features a carbon steel shell with epoxy coating for enhanced corrosion resistance. The condenser tubes are manufactured from plain copper tubes arranged in a removable bundle, allowing ease of maintenance. Cooling water flow through the condenser is 140, 000 LPH, with 6-inch flanged connections and a water-side pressure drop limited to 0.4 bar. The condenser is designed for a water-side pressure of 10 bar and a refrigerant-side pressure of 30 bar.

The condenser water circulation is maintained by a centrifugal monoblock pump with a rated capacity of 140, 000 LPH at a head of 15.7 meters. The pump is powered by an 11 kW motor, suitable for operation on 380415 V, 50 Hz electrical supply.

The refrigeration system incorporates compact screw compressors designed for continuous and reliable operation. Capacity control is achieved through step or stepless modulation, with control steps of 25%, 50%, 75%, and 100%, allowing efficient operation under partial load conditions. The compressors are started using a star-delta starter, while VFD operation is available as an optional feature for enhanced energy efficiency and smoother load variation. The compressor section is capable of delivering a cooling capacity of up to 718 kW, with power input dependent on operating and ambient conditions.

The FIDEM water-cooled screw chiller, designated as model FM-WCS-200-407C, is engineered to provide a rated refrigeration capacity of 200 TR, equivalent to approximately 703 kW, and operates with R407C refrigerant to deliver efficient, stable, and reliable heat transfer performance. The unit is configured with two fully independent refrigeration circuits, ensuring a high degree of operational reliability, built-in redundancy, and consistent output across a broad range of operating loads. It is suitable for operation on a three-phase, 415 V, 50 Hz electrical supply, with an estimated connected power requirement of approximately 150 kW and a full-load running current of around 243 A. Precise refrigerant flow regulation and capacity control are achieved through an electronic expansion valve, allowing rapid system response and enhanced energy efficiency during part-load operation.

The chiller is furnished with a shell-and-tube evaporator designed for chilled water service and operates at a saturated suction temperature (SST) of +10 C. The evaporator is designed to handle a chilled water temperature range from 15 C at inlet to 20 C at outlet, delivering a chilled water flow rate of 26, 500 LPH, which corresponds to an effective temperature difference of approximately 23 C. The evaporator assembly is arranged in two circuits and delivers a net cooling capacity of 703 kW. The evaporator shell is fabricated from 10 mm thick seamless carbon steel, while heat exchange is accomplished using internally grooved copper tubes configured in a U-bundle arrangement to enhance thermal efficiency. The evaporator is provided with 6-inch flanged water connections and is designed for a maximum water-side pressure drop of 0.4 bar, a water-side design pressure of 10 bar, and a refrigerant-side design pressure of 25 bar.

Circulation of chilled water is ensured by a centrifugal monoblock pump supplied as part of the chiller package. The pump is rated for a flow capacity of 120, 000 LPH at a total developed head of 16.3 meters and is driven by an 11 kW electric motor, providing stable and continuous chilled water flow through the evaporator and the connected HVAC or process piping network.

The water-cooled condenser, also of shell-and-tube design, is engineered to operate at a saturated discharge temperature (SDT) of +35 C. The condenser is capable of rejecting a total heat load of 718 kW and features a carbon steel shell with epoxy coating to improve corrosion resistance and prolong service life. The condenser heat transfer surface consists of plain copper tubes assembled in a removable bundle, facilitating ease of cleaning and routine maintenance. The condenser is designed for a cooling water flow rate of 140, 000 LPH, is fitted with 6-inch flanged inlet and outlet connections, and maintains a water-side pressure drop not exceeding 0.4 bar. The design pressure limits are 10 bar on the water side and 30 bar on the refrigerant side.

Cooling water circulation through the condenser is maintained by a centrifugal monoblock pump rated for 140, 000 LPH at a head of 15.7 meters. The pump is equipped with an 11 kW motor, suitable for operation on a 380415 V, 50 Hz power supply, ensuring efficient and reliable condenser water flow.

The refrigeration system incorporates compact screw compressors designed for continuous-duty operation, heavy-load service, and long operational life. Compressor capacity control is achieved through step or stepless modulation, with unloading stages of 25%, 50%, 75%, and 100%, enabling efficient system performance during partial-load conditions. Compressor starting is carried out using a star-delta starting arrangement, while VFD operation is available as an optional feature to further enhance energy efficiency and provide smoother capacity variation. The compressor package is capable of delivering a maximum cooling capacity of 718 kW, with actual power consumption dependent on operating conditions and site-specific requirements.

30 TR AIR COOLED SCROLL TYPE GLYCOL / WATER CHILLER

FMACSC-85TR-R407C air-cooled industrial chiller cooling duty 85 TR (302 kW) refrigeration topology single closed loop
Electrical feed 400 V / 3 / 50 Hz power draw 73.0 kW nominal current 122 A
Refrigerant R407C expansion device TXV thermal points 7C evap / 40C cond design ambient 48C
Chilled water operating span +7C to +20C

Hydronic capacity 50, 000 LPH @ T 5C
Heat dissipation system air-cooled condenser module (copper tubealuminum fin core) ventilation by four axial suction fans, 630 mm
Fan input 1.5 kW each aggregate airflow 70, 000 CFM support chassis galvanized steel

Compression package single semi-hermetic screw compressor supplied by Bitzer drive power 67.0 kW running current 102 A @ 50 Hz
Motor initiation stardelta load control progressive step unloading 0100%

Evaporator unit shell-and-tube heat exchanger pressure body powder-coated carbon steel tube bundle inner-grooved copper flow control SS-304 TIG-welded baffles and headers
Pressure rating 10 bar hydro test 15 bar water interface 3-inch BSP
Thermal insulation 40 mm closed-cell PUF

Circulation arrangement 2 SS-304 centrifugal pumps, 5.5 kW each, configuration 1 operating + 1 standby
Condenser refrigerant line 3/8 inch
Protective systems HP/LP safeties overload protection phase sequence check flow verification freeze prevention logic discharge temperature limiter internal thermostat low-water cut-off

ParameterTypical Value / RangeNotes

Technical Specification Sr.No. Parameter 1 Model Details FMWCSGLY-30-407 2 Cooling Capacity 102KW / 30 TR 3 Power Supply 400V-50Hz 4 Refrigerant R410A 5 Refrigerant Control Thermostatic Expansion 6 Evaporating SST -7C 7 Condensing SDT 38C 8 Glycol Working Temperature Range Glycol Temperature -10 TO +10 -3 C 9 3000 LPH Glycol Chilled Flow Milk Flow Milk Temperature 2000 LPH 2C 10 Condenser Water Flow 15 M3/hr PLOT-74, SHREE KHODIYAR PARK , SHAAT HANUMAN TEMPLE, RUDA TRANSPORT NAGAR , KUVADVA HIGHWAY, RAJKOT (GUJ) INDIA. Cell +919924172504 Email : chillers@ Cell +917211100451 PLOT-74, SHREE KHODIYAR PARK , SHAAT HANUMAN TEMPLE, RUDA TRANSPORT NAGAR , KUVADVA HIGHWAY, RAJKOT (GUJ) INDIA. Cell +919924172504 Email : chillers@ Cell +917211100451 11 Compressor Types Scroll 12 Compressor power 32 KW 13 Start mode Star Delta 14 Capacity control -- 15 Evaporator Types BPHE 16 Evaporator pipe connection 2 17 Evaporator MOC SS + Copper 19 Condenser types Shell and tube 20 Condenser Pipe Connection 2 21 Condenser Shell Moc MS. Powder Coted 22 Condenser tube Copper (IGT) 23 Safety Protection Inner Thermostat for compressor motor, unit overload relay, high and low pressure switch , reverse phase protection relay, discharge gas thermostat, flow switch , Antic Freeze protection 24 Electric control panel HMI, PLC, protection relay, contactor, MCB, preventer, pressure transmeter, timer. 24 Dimension(length/width/height) 2000 mm 1200 mm 1600 mm 25 Running weight 1100 kg 26 Glycol Tank Component Specification Volume 300 Litres Material SS-304, 2 mm thick Insulation 25 mm PUF Fittings Inlet, outlet, drain, level gauge, overflow vent Mounting Floor mounted 27 Gasket PHE Stage Duty Stage 1 Pre-cooling using chilled water Stage 2 Final chilling with glycol (-2C) Component Specification Type Gasketed Plate Heat Exchanger Plates SS-316, EPDM/NBR Gaskets Surface Area 8 m Flow Capacity 2000 LPH Temperature Drop 40C 2C Ports Dairy fittings Component Specification Flow 4.0 m/h 28 Glycol Circulation Pump Head Type 2.5 bar SS-304 Centrifugal Pump Motor 2.2 kW Product 1. Make compressor 2. Bitzer Evaporator 3. Fidem condenser 4. Fidem Electric panel 5. Fidem Flow switch 6. Castle Pressure Switch 7. Danfoss Expansion valve 8. Danfoss Filter 9. Dryall Solenoid valve 10. Danfoss Electronic components 11. Schneider Glycol tank 12. Fidem BPHE 13. Fidem Glycol Pump Shimge

The FMACSC-80TR-R407C air-cooled chiller provides 80 TR (280 kW) of cooling capacity through a single refrigeration circuit. Electrical supply requirement is 400 V, 3-phase, 50 Hz, with an installed load of 70.25 kW and a rated current of 114.8 A. Refrigeration is based on R407C, controlled by a thermostatic expansion valve, operating at 7C evaporation and 50C condensation, and suitable for ambient temperatures up to 45C. Chilled water temperature is regulated within +10C to +20C.

Chilled water flow is 6000 LPH at a 35C temperature differential. Heat rejection is performed by an air-cooled condenser with copper tubes and aluminum fins, supported by four axial suction fans of 28-inch diameter. Each fan is rated at 0.65 kW, producing a combined airflow of 30, 720 CFM, mounted on a galvanized steel structure.

Compression duty is handled by one semi-hermetic screw compressor manufactured by Bitzer, rated at 63.9 kW with a current draw of 105.4 A at 50 Hz. Motor starting is via stardelta, while step capacity regulation from 0% to 100% ensures stable performance under varying load conditions.

Cooling exchange is achieved through a shell-and-tube evaporator featuring a powder-coated carbon steel shell, inner-grooved copper tubes, and SS-304 TIG-welded baffles and headers. The assembly is designed for 10 bar working pressure and hydrostatically tested at 15 bar, with 3-inch BSP chilled water connections. Heat ingress is limited using 40 mm closed-cell PUF insulation.

A factory-integrated circulation pump rated at 3.75 kW (5 HP) delivers 50, 000 LPH against a head of 2.33 kg/cm. Condenser-side refrigerant piping is 3/8 inch. Safety coverage includes high/low pressure protection, motor overload, phase reversal monitoring, flow interlock, anti-freeze logic, discharge temperature cut-out, internal thermostat, and low water level protection.

Control and monitoring are provided through a factory-assembled electrical panel comprising MCBs, contactors, overload relays, timers, PLC, and HMI, fully wired and tested prior to dispatch. Overall dimensions and GA drawings shall be submitted after order confirmation.

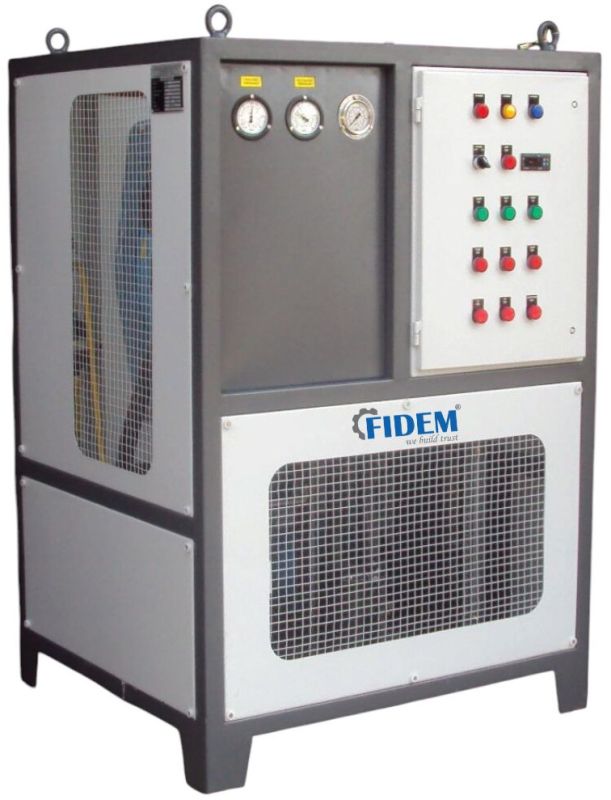

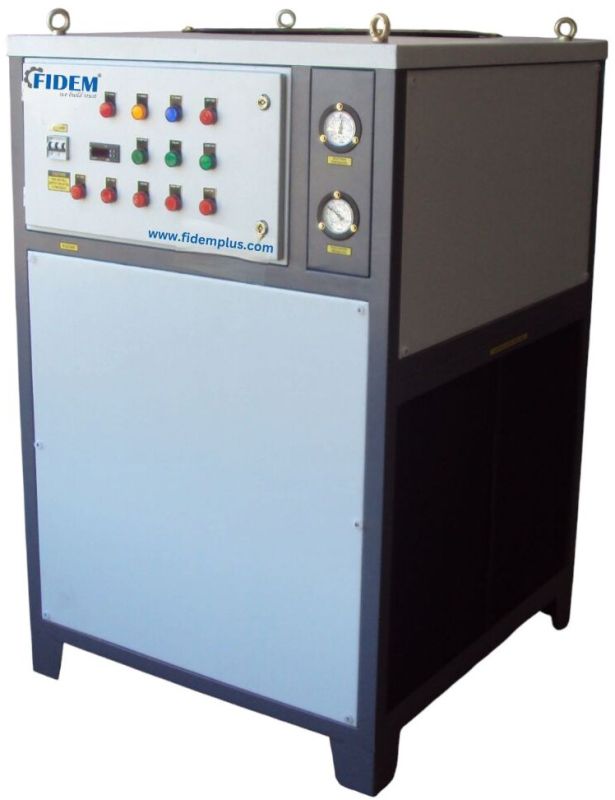

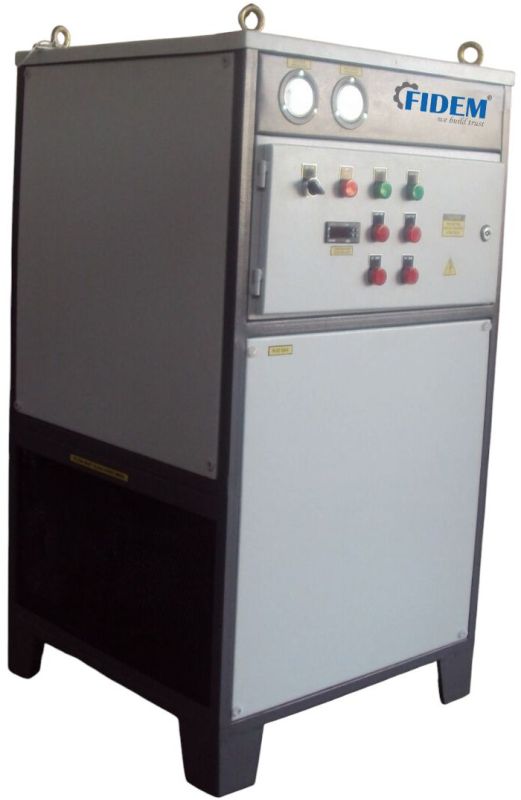

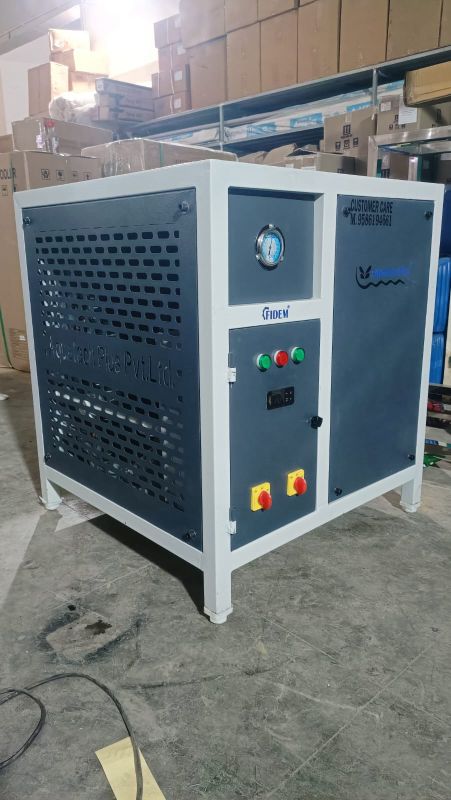

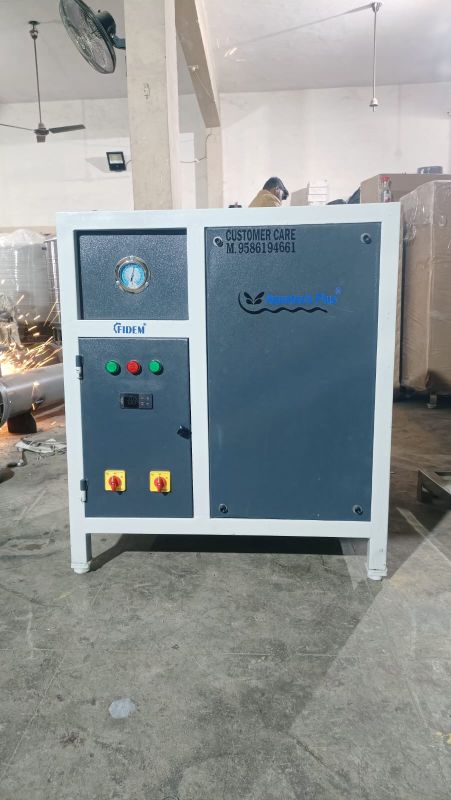

Model: FMACOIL-2TR

Capacity: 6000 Kcal/hr (2 TR)

Oil Type: VG 68

Cooling Type: Air Cooled

Refrigerant: R22

Temperature Range: 3035C

Ambient Temperature: 3540C

Flow Rate: 40 LPM@2Bar

Power Supply: 415V, 3 Ph, 50 Hz

Power Input: Max. 4.0 kW

Color: Pepsi Blue & RAL 7035 Powder Coated

Controller: Programmable Digital Temperature Controller

Size: L 700 x W 600 x H 1100 mm

Evaporator: SWEP B10THx20 BPHE

Compressor: Scroll Type Danfoss/Emerson

Panel: Siemens/Schneider with full protections

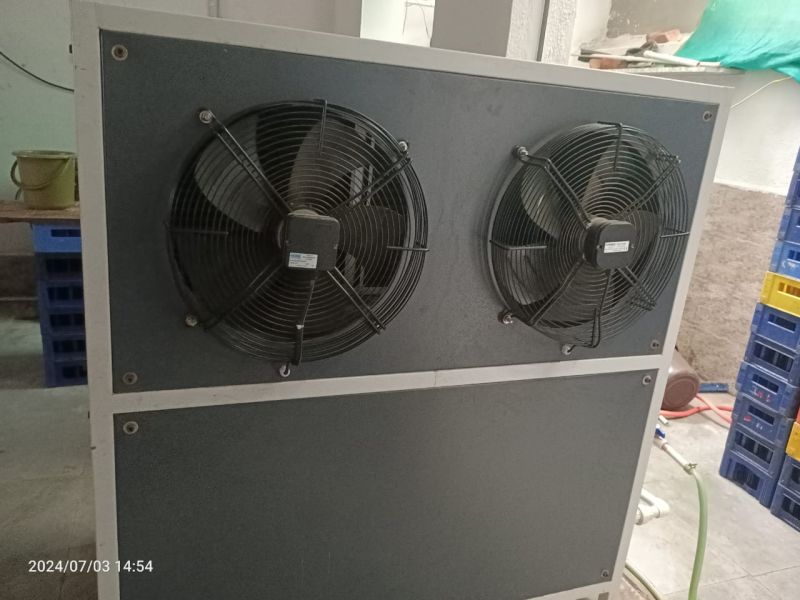

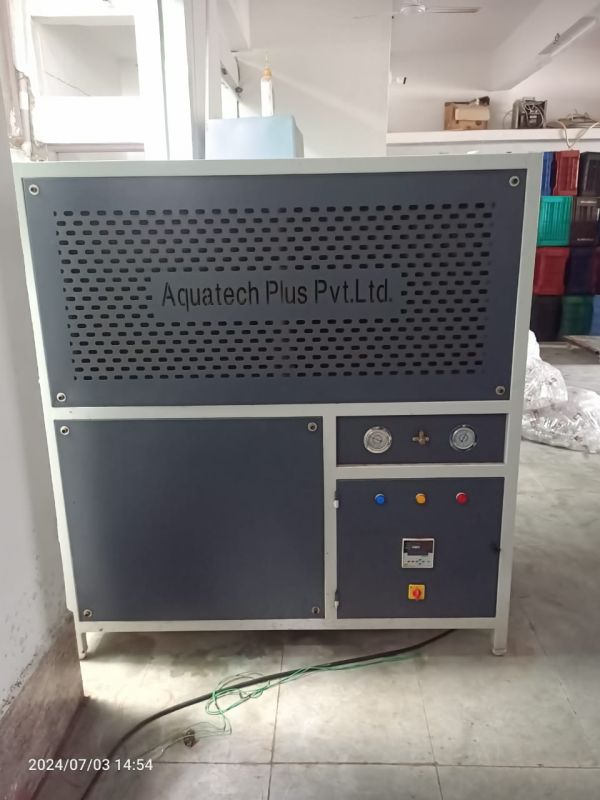

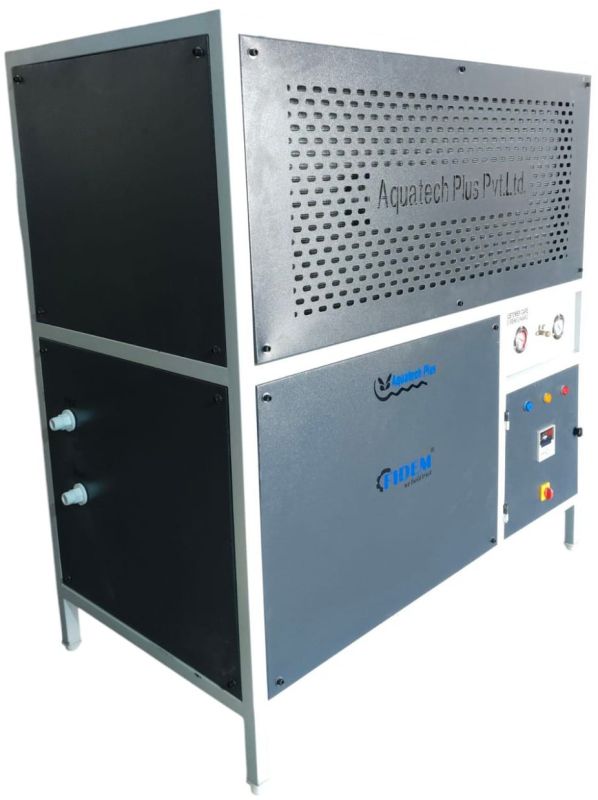

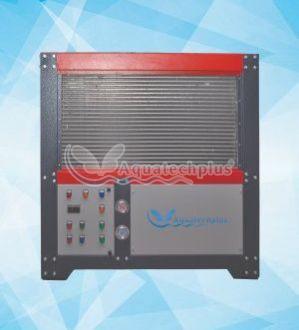

Model: FMACOIL-5TR

Capacity: 15000 Kcal/hr (5 TR) or 17.5 kW

Oil Type: VG 32 / VG 46 / VG 68

Cooling Type: Air Cooled

Refrigerant: R22

Temperature Range: 3035C

Flow Rate: 50 LPM @ 2 bar

Power Supply: 415V, 3 Ph, 50 Hz

Power Input: 8.0 kW

Installation: Indoor

Air Flow: Top Throw

Noise Level: < 85 dBA

Connection: 1 BSP Female

Size: W 900 x D 900 x H 1500 mm

Evaporator: SWEP B35Tx30 BPHE

Compressor: Scroll Type Danfoss/Emerson

Panel: Siemens/Schneider

Controller: Programmable Digital Temperature Controller

Technical Offer

ParameterTypical Value / RangeNotes

Technical Specifications:

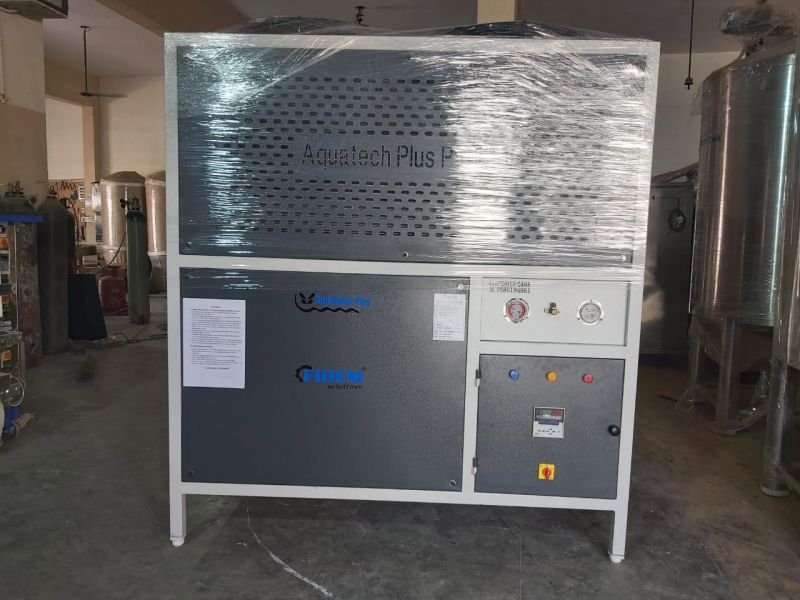

Model: FMACOIL-3TR

Capacity: 9000 Kcal/hr (3 TR)

Oil Type: VG 68

Cooling Type: Air Cooled

Refrigerant: R22

Temperature Range: 35C

Flow Rate: 40 LPM@2Bar

Power Supply: 415V, 3 Ph, 50 Hz

Power Input: Max. 6.0 kW

Color: Siemens Gray Powder Coated

Controller: Programmable Digital Temperature Controller

Size: W 850 x D 800 x H 1300 mm

Evaporator: SWEP B25Tx25 BPHE

Compressor: Scroll Type Danfoss/Emerson

Panel: Siemens/Schneider with protection features

HSN Code: 84181010

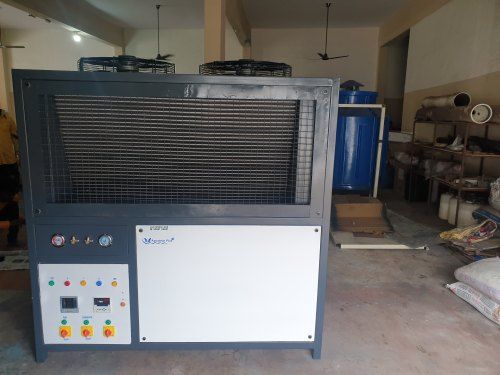

A glycol chiller is a refrigeration system that uses a glycol-water mixture (usually propylene glycol or ethylene glycol) to remove heat from a process or equipment. It's commonly used in industries like:

• Breweries and wineries (to control fermentation temperature)

• HVAC systems (as part of cooling loops)

• Food and beverage processing

• Medical and pharmaceutical manufacturing

• Plastics and laser systems

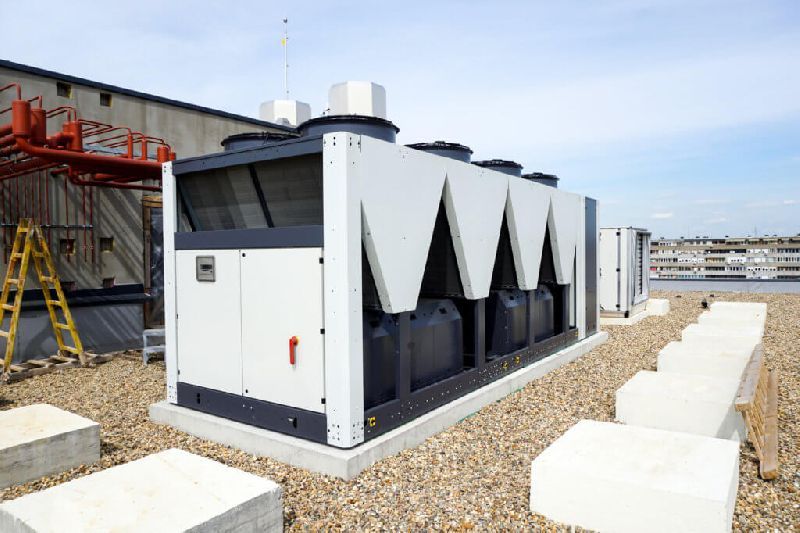

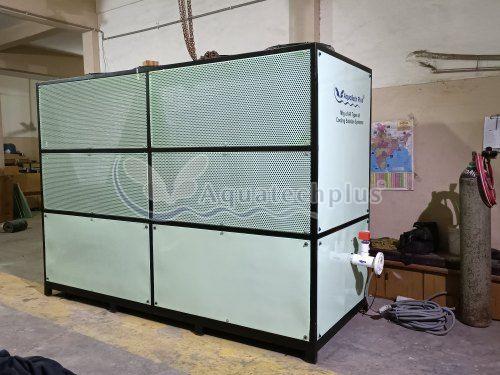

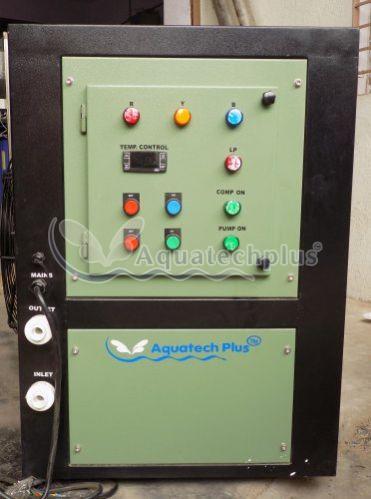

A Commercial Chiller System is a type of HVAC (Heating, Ventilation, and Air Conditioning) equipment used in large buildings and industrial facilities to provide cooling by removing heat from a liquid, typically water or a water-glycol mix. This cooled liquid is then circulated through a network of pipes to air handlers or fan coil units to cool air in the building.

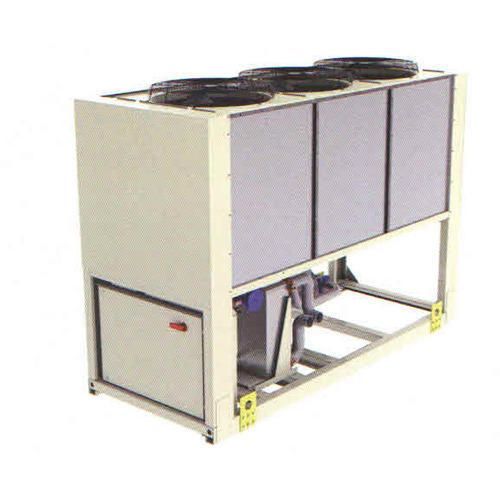

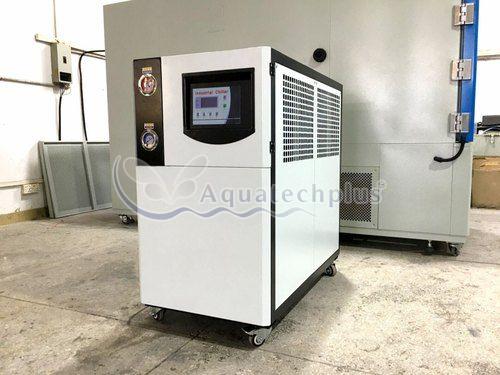

A blow moulding chiller is a specialized industrial chiller used to cool molds and plastic parts in the blow moulding process—a method commonly used for making hollow plastic containers like bottles, tanks, and drums.blow moulding chiller:

• Provides precise and consistent cooling during the moulding cycle.

• Removes excess heat from:

  • Moulds (to maintain shape and dimensional stability)

  • Hydraulic oil (to prevent overheating of machines)

• Increases cycle speed, product quality, and energy efficiency.

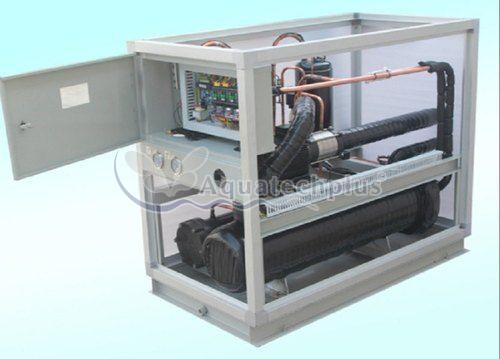

An acid chiller is a specialized type of chiller designed to cool corrosive acids or acid-based process fluids in industrial applications. These systems must be built to withstand highly corrosive environments, making them very different from standard chillers.

Acid chillers are typically used in:

• Chemical processing plants

• Pharmaceutical manufacturing

• Metal finishing and etching (e.g., for semiconductors or PCBs)

• Battery manufacturing

• Pickling lines in steel production

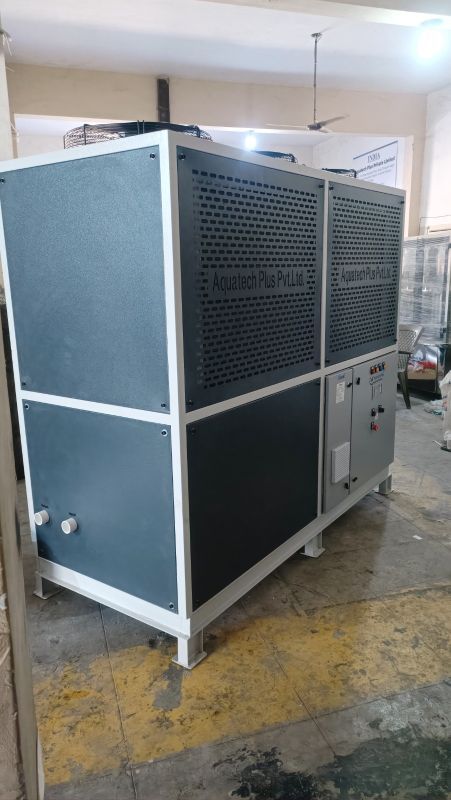

Technical Specification (Per Unit 15 TR Air-Cooled Chiller) Sr. No. Parameter Details 1 Model FMACA-15-407 2 Cooling Capacity 51 kW / 15 TR 3 Power Supply 400V, 3Ph, 50 Hz 4 Refrigerant R410A 5 Refrigerant Control Thermostatic Expansion Valve (TXV) 6 Evaporating SST -7 C 7 Condensing SDT 38 C (air-cooled design) 8 Glycol Working Range -10 C to +10 C Glycol Outlet Temp -3 C 9 Glycol Chilled Flow 1500 LPH (per unit) Milk Flow 1000 LPH (per unit) Milk Temp 2 C 10 Condenser Type Air-cooled fin & tube coil with axial fans 11 Compressor Type Scroll 12 Compressor Power 16 kW (per unit) 13 Start Mode StarDkW (per unit) 13 Start Mode StarDelta 14 Evaporator Type BPHE 15 Evaporator Connection 1.5 / 2 16 Evaporator MOC SS + Copper 17 Safety Protection Compressor thermostat, overload relay, HP/LP switch, reverse phase relay, discharge gas thermostat, flow switch, anti-freeze 18 Electric Control Panel PLC/HMI, protection relay, contactor, MCB, pressure transmitters 19 Dimensions (per unit) 2000 1200 1600 mm

Features

• Dimensional accuracy
• Long lasting performances
• International quality
• Reasonable price
• Removes all types of impurities
• Compact designA Commercial Chiller System is a type of HVAC (Heating, Ventilation, and Air Conditioning) equipment used in large buildings and industrial facilities to provide cooling by removing heat from a liquid, typically water or a water-glycol mix. This cooled liquid is then circulated through a network of pipes to air handlers or fan coil units to cool air in the building.

• 3phase, 415 V, 50 Hz

• Scroll compressor from a wellknown brand (Copeland / Danfoss / Emerson)

• Refrigerant that is permitted and efficient (if R410A or R407C is available, better than old R22)

• Good condenser fan system: durable metal, good air flow, serviceable

• Plate or shellandtube evaporator depending on fluid; ensure sufficient flow rate (say 5060 L/min or as per process)

• Digital controller with safety cutouts (HP, LP, flow, overload)

• Body work with anticorrosion coating if unit exposed outdoors

If you tell me your application (what fluid, desired chilled water temperat

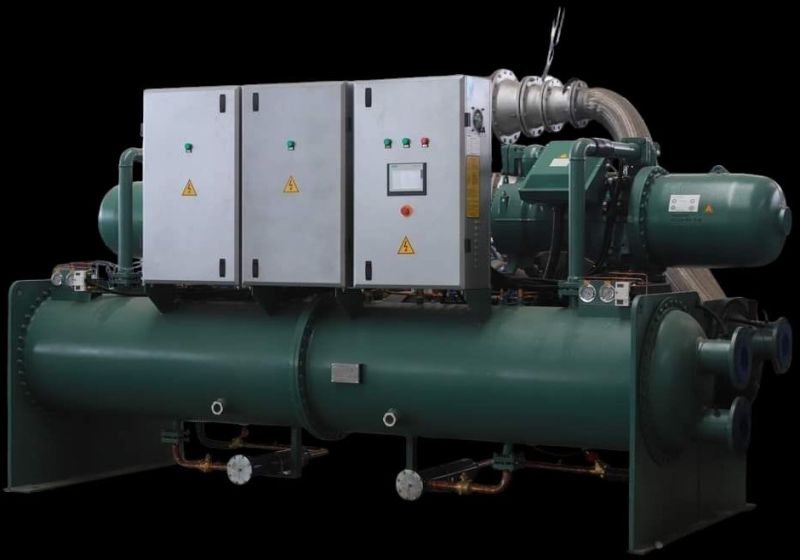

FIDEM WATER COOLED SCREW TYPE CHILLER (150 TR)

The supplied equipment consists of a FIDEM-manufactured water-cooled screw type chiller, identified by model FM-WCS-150-407C, and designed to deliver a nominal refrigeration capacity of 150 TR, equivalent to approximately 527 kW of useful cooling output. The chiller unit is arranged with two (2) completely independent refrigerant circuits, ensuring reliable operation, redundancy during part-load conditions, and even distribution of compressor loading. The unit is suitable for operation on a three-phase, 415 V, 50 Hz AC electrical supply, with a maximum connected power demand of 112.1 kW and a full-load operating current of 204.8 amperes. The refrigeration system utilizes R-407C refrigerant, and precise regulation of refrigerant flow is achieved by means of an Electronic Expansion Valve (EEV), ensuring stable, efficient, and responsive system performance under all operating conditions.

The chiller is equipped with a water-cooled shell and tube type evaporator, engineered for an evaporating saturation temperature (SST) of 10 C. The system is intended for applications requiring a chilled water operating temperature range of 15 C to 20 C. The evaporator assembly incorporates two (2) refrigerant circuits and is designed to handle a chilled water flow rate of 19, 700 LPH, corresponding to a temperature differential of approximately 23 C, thereby providing a net cooling capacity of 527 kW.

The evaporator shell is constructed from carbon steel with a minimum wall thickness of 10 mm using seamless fabrication, ensuring high mechanical strength and extended service life. Heat transfer is achieved through internally grooved copper tubes arranged in a U-bundle configuration, which enhances overall thermal efficiency. The evaporator is provided with 6-inch water inlet and outlet connections and is designed for a water-side pressure loss of 0.4 bar. The maximum allowable working pressure on the water side is 10 bar, while the refrigerant-side design pressure is rated at 25 bar.

Chilled water circulation through the evaporator is ensured by a centrifugal mono-block pump, rated for 90, 000 LPH at a total dynamic head of 15 meters, driven by a 5.5 kW electric motor.

The condenser is a water-cooled shell and tube type heat exchanger, designed to operate at a condensing saturation temperature (SDT) of +35 C. The condenser is capable of rejecting a total heat load of 718 kW. The shell is fabricated from carbon steel and finished with an epoxy protective coating to provide enhanced corrosion resistance, while the heat transfer surface consists of plain copper tubes assembled in a tube bundle configuration.

The condenser is provided with 6-inch cooling water inlet and outlet connections and is designed for a cooling water flow requirement of 140, 000 LPH. The water-side pressure drop is limited to 0.4 bar, with a water-side design pressure of 10 bar. The refrigerant-side design pressure is rated at 30 bar.

Cooling water circulation for the condenser is provided by a centrifugal mono-block pump, rated for 110, 000 LPH at a head of 10 meters, driven by a 5.5 kW motor suitable for operation on 380415 V, 50 Hz power supply.

The chiller is fitted with a compact screw type compressor, designed to deliver a cooling output of approximately 550 kW. The compressor is suitable for continuous full-load operation (100%) and supports step or stepless capacity regulation at 25%, 50%, 75%, and 100%, allowing efficient matching of system capacity with varying cooling demand. The compressor is provided with a star-delta starting arrangement, with Variable Frequency Drive (VFD) operation available as an optional provision. The compressor electrical power input shall be as per system design and actual operating conditions.

FIDEM WATER COOLED SCREW TYPE CHILLER (150 TR)

The offered equipment is a FIDEM manufactured Water Cooled Screw Type Chiller, bearing model number FM-WCS-150-407C, and is designed to deliver a rated cooling capacity of 150 TR, equivalent to approximately 527 kW of refrigeration performance. The chiller assembly consists of two (2) completely independent refrigeration circuits, ensuring high system reliability, operational redundancy, and uniform load sharing. The unit is suitable for operation on a three-phase, 415 V, 50 Hz AC power supply, with a maximum connected electrical load of 112.1 kW and a full-load operating current of 204.8 amperes. The refrigeration cycle utilizes R-407C refrigerant, with precise and responsive refrigerant flow modulation achieved through an Electronic Expansion Valve (EEV).

The chiller is provided with a water-cooled shell and tube type evaporator, engineered for an evaporating saturation temperature (SST) of 10 C. The system is designed to operate within a chilled water temperature range of 15 C to 20 C. The evaporator is configured with two (2) refrigerant circuits and is designed to handle a chilled water flow rate of 19, 700 LPH, corresponding to a temperature differential of approximately 23 C, thereby delivering a cooling duty of 527 kW.

The evaporator shell is fabricated from carbon steel with a minimum wall thickness of 10 mm using seamless construction, ensuring structural integrity and long service life. Heat transfer is facilitated through internally grooved copper tubes arranged in a U-bundle configuration, which enhances thermal efficiency. The evaporator is equipped with 6-inch water inlet and outlet connections and is designed for a water-side pressure drop of 0.4 bar. The maximum allowable working pressure on the water side is 10 bar, while the refrigerant side is designed for a pressure of 25 bar.

Chilled water circulation through the evaporator is ensured by a centrifugal mono-block pump, rated for 90, 000 LPH at a total dynamic head of 15 meters, driven by a 5.5 kW electric motor.

The condenser is a water-cooled shell and tube type heat exchanger, designed to operate at a condensing saturation temperature (SDT) of +35 C. It is capable of rejecting a total heat load of 718 kW. The condenser shell is manufactured from carbon steel and protected with an epoxy coating to resist corrosion, while the heat exchange tubes are plain copper tubes assembled in a bundle arrangement.

The condenser is provided with 6-inch cooling water connections and is designed for a cooling water flow requirement of 140, 000 LPH. The pressure drop on the water side is limited to 0.4 bar, with a water-side design pressure of 10 bar. The refrigerant-side design pressure is rated at 30 bar.

Cooling water circulation for the condenser is achieved using a centrifugal mono-block pump, rated for 110, 000 LPH at a head of 10 meters, driven by a 5.5 kW motor suitable for operation at 380415 V, 50 Hz.

The chiller is equipped with a compact screw type compressor, designed to provide a cooling output of approximately 550 kW. The compressor is capable of full-load operation (100%) and supports step or stepless capacity modulation at 25%, 50%, 75%, and 100%, allowing efficient matching of cooling demand under varying operating conditions. The compressor is fitted with a star-delta starting system, with Variable Frequency Drive (VFD) operation available as an optional feature. The compressor power consumption shall be as per system design and actual operating conditions.

FIDEM WATER COOLED SCREW TYPE CHILLER (150 TR)

The proposed system comprises a FIDEM-manufactured water-cooled screw type chiller, identified as model FM-WCS-150-407C, and engineered to deliver a rated refrigeration capacity of 150 TR, corresponding to approximately 527 kW of effective cooling output. The chiller package is configured with two (2) separate and fully independent refrigerant circuits, ensuring reliable operation, operational redundancy during part-load conditions, and uniform distribution of compressor loading. The unit is designed for operation on a three-phase, 415 V, 50 Hz AC electrical power supply, with a maximum connected electrical load of 112.1 kW and a full-load current requirement of 204.8 amperes. The refrigeration system utilizes R-407C refrigerant, and precise refrigerant flow control is achieved through an Electronic Expansion Valve (EEV), ensuring consistent, efficient, and stable system performance.

The chiller is equipped with a water-cooled shell and tube type evaporator, designed to operate at an evaporating saturation temperature (SST) of 10 C. The system is suitable for applications requiring a chilled water operating temperature range of 15 C to 20 C. The evaporator assembly consists of two (2) refrigerant circuits and is designed to accommodate a chilled water flow rate of 19, 700 LPH, corresponding to a temperature differential of approximately 23 C, thereby delivering a net cooling capacity of 527 kW.

The evaporator shell is manufactured from carbon steel with a minimum wall thickness of 10 mm using seamless construction, providing excellent mechanical strength and extended service life. Heat transfer is facilitated through internally grooved copper tubes arranged in a U-bundle configuration, enhancing overall thermal efficiency. The evaporator is provided with 6-inch water inlet and outlet connections and is designed for a water-side pressure drop of 0.4 bar. The maximum allowable working pressure on the water side is 10 bar, while the refrigerant-side design pressure is rated at 25 bar.

Chilled water circulation through the evaporator is ensured by a centrifugal mono-block pump, rated for 90, 000 LPH at a total dynamic head of 15 meters, driven by a 5.5 kW electric motor.

The condenser is a water-cooled shell and tube type heat exchanger, designed to operate at a condensing saturation temperature (SDT) of +35 C. The condenser is capable of rejecting a total heat load of 718 kW. The shell is fabricated from carbon steel and coated with epoxy paint to provide enhanced corrosion resistance, while the heat transfer surface comprises plain copper tubes assembled in a tube bundle configuration.

The condenser is provided with 6-inch cooling water inlet and outlet connections and is designed for a cooling water flow requirement of 140, 000 LPH. The water-side pressure drop is limited to 0.4 bar, with a water-side design pressure of 10 bar. The refrigerant-side design pressure is rated at 30 bar.

Cooling water circulation for the condenser is achieved by a centrifugal mono-block pump, rated for 110, 000 LPH at a head of 10 meters, driven by a 5.5 kW motor suitable for operation on 380415 V, 50 Hz power supply.

The chiller is fitted with a compact screw type compressor, designed to deliver a cooling output of approximately 550 kW. The compressor is suitable for continuous full-load operation (100%) and supports step or stepless capacity modulation at 25%, 50%, 75%, and 100%, allowing efficient matching of system capacity with varying cooling demand. The compressor is provided with a star-delta starting arrangement, with Variable Frequency Drive (VFD) operation available as an optional provision. The compressor electrical power input shall be as per system design and actual operating conditions.
