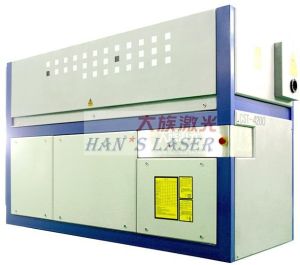

We are offering Co2 Laser Generator. 1Jointly R&D by Han’s laser, Germany and Switzerland, its photoelectric transformation rate could reach as rapid as 25% 2, Its control system is independently R&D by Han’s .It could render PC to operate and control generator directly or insert itself into the machine tool for joint control with CNC. 3 As for high voltage power supply, its outputs could be categorized into, continuous wave, gate pulse, high power pulse and ultra-high power pulse, which could quickly response to the exterior control and perform perfect process around the corner. 4 The pneumatic system is adjusted by high precision apparatus, which could adjust the air release according to the features of turbine, greatly reduce air consumption. 5 Beam expanding equipment is added outside the cavity resonator, which greatly better its focus ability. Carbon steel Stainless Steel Aluminum: Maximum Cutting Thickness(mm) 22 10 6 Maximum Cutting Speed (m/min) 9 9 6.5 Maximum Cutting Thickness(mm) Carbon steel Stainless Steel Aluminum: CST 2200 16 6 3 CST3300 20 8 5 CST4200 22 10 6 Maximum Cutting Thickness Maximum Cutting Speed (m/min) Carbon steel Stainless Steel Aluminum: CST 2200 8 9 4.5 CST3300 8 9 6 CST4200 9 9 6.5

• MOQ 1 Set(s)

We are offering Laser Machine. Brief Introduction : High efficiency sheet cutting specialist Low running cost, maintenance free for optic path. The 3rd generation laser cutting, leading the revolution of laser cutter technology and creating a new era of sheet metal processing. Full description Fiber series occupies 90% of domestic market Cutting speed could reach as rapid as 90m/min The biggest manufacturer in Asian area Technical Specification： (For 3015 Size, pls visit www.hanslaser.com for other types ) Type Key Specification Processing Area（L×W） 3000mm×1500mm X Axis Stroke 3050mm Y Axis Stroke 1525mm Z Axis Stroke 120mm X/Y Axis Location Accuracy ±0.03mm/m X/Y Axis Repeated Location Accuracy ±0.02mm X/Y Axis Max. Acceleration 1.5G X/Y Single Max. Location Speed 169m/min CNC System PA8000 Worktable Max.Load 900Kg Machine Tool Weight 10000Kg Dimension（L×W×H） 9050mm×3000mm×2000mm Why we are your best choice 1 We provide more than product! Our technical offices scatter around the world, and always at your thoughtful service before sales, in sales as well as after sales. 2 We are more than the integrator of world branded components; we optimize every component in our machines to perfectly customize them to your exact demand. 3 Our product enjoys unique prestigious reputation home and abroad for the superior quality, high cost performance as well as complete after sales service.

• MOQ 1 Set(s)

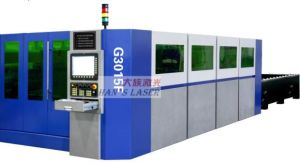

We are offering fiber laser machine. brief introduction high efficiency sheet cutting specialist low running cost, maintenance free for optic path the 3rd generation laser cutting, leading the revolution of laser cutter technology and creating a new era of sheet metal processing full description fiber series occupies 90% of domestic market cutting speed could reach as rapid as 90m/min the biggest manufacturer in asian area technical specification： (for 3015 size, pls visit www.hanslaser.com for other types ) type key specification processing area（l×w） 3000mm×1500mm x axis stroke 3050mm y axis stroke 1525mm z axis stroke 120mm x/y axis location accuracy ±0.03mm/m x/y axis repeated location accuracy ±0.02mm x/y axis max. Acceleration 1.5g x/y single max. Location speed 169m/min cnc system pa8000 worktable max.load 900kg machine tool weight 10000kg dimension（l×w×h） 9050mm×3000mm×2000mm why we are your best choice 1 we provide more than product! our technical offices scatter around the world, and always at your thoughtful service before sales, in sales as well as after sales. 2 we are more than the integrator of world branded components; we optimize every component in our machines to perfectly customize them to your exact demand. 3 our product enjoys unique prestigious reputation home and abroad for the superior quality, high cost performance as well as complete after sales service.

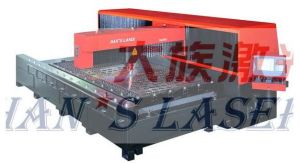

We are offering co2 laser machine - cantilever structure. brief introduction b6015 laser cutter is a precision cnc laser cutter equipped with the fast axial flow co2 laser with international advanced technology such as high precision gear rack (gudel switzerland), servo motor (siemens, germany), digital control system assembly pa8000(germany), capacitive vertical tracking system assembly (precitec, germany), pneumatic system assembly(smc japan ), electrical system assembly(schneider), etc. feature 1 cantilever structure 2 perfect openness and easy to load and unload 3 both sheet metal and pipe cutting are available 4 customized is available technical parameter (for b3015) performance indicator parameter processing surface (l × w) 3000 mm × 1500 mm x axle stroke 3040 mm y axle stroke 1530 mm z axle stroke 120 mm positioning accuracy of x, y and z axles ±0.03 mm repeated positioning accuracy of x, y and z axles ±0.02 mm maximum positioning speed of x and y axles 85 m/min cnc system pa8000 maximum load of workbench 900 kg phases 3 parameter of rotary workable processing diameter scope 20-380mm processing length 3m maximum length 180mm*12m maximum rotary speed 39.5r.p.m location precision 0.15 repeating location precision 0.03 processing pipe thickness 0.5-16mm

• MOQ 1 Set(s)

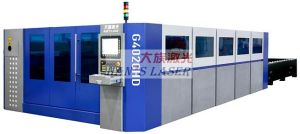

We are offering co2 laser machine - gantry structure. brief introduction cst series co2 laser machine-developed by han’ laser exclusively – is the only one which adopts the incentive technology of independent voltage switch power supply and the axial rapid flow technology in china. Cst series laser machine is in the lead of photoelectric conversion rate, gas consumption, and quality of light beam and processing ability in china. full description cutting speed could reach as rapid as 9 m/min (for our own brand laser generator) and 18m/min (for rofin dc laser generator) the largest manufacturer in asian area. maximum cutting thickness carbon steel: 22mm (our own brand 4200w series) 25mm (rofin dc050) stainless steel: 10mm (our own brand 4200w series) 16mm (rofin dc050) aluminum : 6mm (our own brand 4200w series) 12mm (rofin dc050) type key specification (for 4020 size, pls visit www.hanslaser.com for other types ) processing area（l×w） 3000mm×1500mm x axis stroke 4050mm y axis stroke 2020mm z axis stroke 120mm x/y axis location accuracy ±0.03mm/m x/y axis repeated location accuracy ±0.02mm x/y single max. Location speed 140m/min cnc system pa8000 x/y axis max. Acceleration 1.2g worktable max. Load 1300kg machine tool weigh 10000kg dimension （l×w×h） 11400mm×3400mm×2000mm why we are your best choice? 1 we provide more than product! our technical offices scatter around the world, and always at your thoughtful service before sales, in sales as well as after sales. 2 we are more than the integrator of world branded components we optimize every component in our machines to perfectly customize them to your exact demand. 3 our product enjoys unique prestigious reputation home and abroad for the superior quality, high cost performance as well as complete after sales service.

• MOQ 1 Set(s)

We are offering laser pipe cutter. brief introduction p6012t or p9012 laser pipe cutter, is your first choice of equipping pipes industry. P6012t forms serialization, which could meet the need of cutting various lengths and pipe diameters materials, featured by easy controlling, high automation, high speed, high precise, fit for large scale industry manufacture. full description 1 formation by only one-shot cutting without further burring elimination 2 flexible process, automatic loading and unloading. 3 basically maintenance-free. 4 able to work around the clock with high cutting precision but low operation cost. 5 customized is available accessible material: 1round pipe 2 square pipe 3 oblate pipe 4 elliptical pipe maximum process range: 1 maximum pipe length :6000mm 2 permissible diameter(for round type ):20-160mm permissible diameter(for square type ):20-120mm 3 permissible thickness of pipe wall carbon steel:0.2mm-16mm stainless steel: 0.2mm-8mm aluminum : 0.2mm-6mm ________________________________________ technical specification: type key specification processing pipe（d×l） φ20-φ180mm×6000mm x axis stroke 6050mm y axis stroke 200mm u axis stroke 3000mm a, b, c axis stroke unlimited rotation z axis stroke 150mm x/y/u axis location accuracy ±0.05mm/n x/y/u axis repeated location accuracy ±0.03mm x/y axis max. Acceleration 0.5g x/y single axis max.location speed 50m/min cnc system pa8000 worktable max.load 100kg machine tool weight 7000kg dimension（l×w×h） 12000mm×5000mm×2500mm why we are your best choice 1 we provide more than product! our technical offices scatter around the world, and always at your thoughtful service before sales, in sales as well as after sales. 2 we are more than the integrator of world branded components; we optimize every component in our machines to perfectly customize them to your exact demand. 3 our product enjoys unique prestigious reputation home and abroad for the superior quality, high cost performance as well as complete after sales service.
