Our Product / Services
Series DX Wet Differential Pressure Switch Wholesaler. Series DX Wet Differential Pressure Switch. Dwyer DXW-11-153-1 Differential Pressure Switch. Dwyer DXW-11-153-2 Differential Pressure Switch. Dwyer DXW-11-153-3 Differential Pressure Switch. Dwyer DXW-11-153-4 Differential Pressure Switch.
dwyer usa dxw-11-153-4 differential pressure switches
dxw-11-153-4 - dwyer wet/wet differential pressure switch, 50 - 75 psi, spdt, 1/4" npt female
dxw-11-153-4-dwyer
description
theseries dx is a differential pressure switchthat makes a contact output based on the differential between two pressure sources. wetted materials of brass and flouroelastomer are suitable for use with most gases and water based solutions. the switch can be used for low differential pressure indication with set point on a decrease of pressure as low as 1 psid (0.07 bar). differential set point ranges are available from 2.5 to 75 psid (0.17 to 5.17 bar) on increasing differential pressure and 1.0 to 67 psid (0.07 to 4.62 bar) on decreasing differential pressure. unit features a high static pressure rating of 200 psig (13.8 bar). weatherproof, ul type 4x, enclosure for dust laden, outdoor, or wash-down installation environments. externally adjustable set point, integral mounting flange and a removable electrical terminal block for quick and easy installation.
weatherproof housing provides protection in the harsh, wet or dirty environments insuring switch's long-service liferemovable terminal block reduces installation time
Additional Information:
Payment Terms : T/T,
Packaging Details : www.envirotechindia.net
Delivery Time : 4 - 6 week

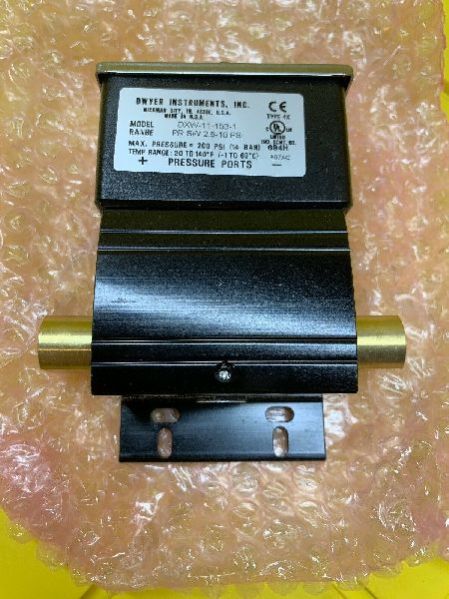

dwyer usa dxw-11-153-1 differential pressure switches
dxw-11-153-1 - dwyer wet/wet differential pressure switch, 2.5 - 10 psi, spdt, 1/4" npt female
dxw-11-153-1-dwyer
description
theseries dxis adifferential pressure switchthat makes a contact output based on the differential between two pressure sources. Wetted materials of brass and flouroelastomer are suitable for use with most gases and water based solutions. The switch can be used for low differential pressure indication with set point on a decrease of pressure as low as 1 psid (0.07 bar). Differential set point ranges are available from 2.5 to 75 psid (0.17 to 5.17 bar) on increasing differential pressure and 1.0 to 67 psid (0.07 to 4.62 bar) on decreasing differential pressure. Unit features a high static pressure rating of 200 psig (13.8 bar). Weatherproof, ul type 4x, enclosure for dust laden, outdoor, or wash-down installation environments. Externally adjustable set point, integral mounting flange and a removable electrical terminal block for quick and easy installation.
weather proof housing provides protection in the harsh, wet or dirty environments insuring switch's long-service liferemovable terminal block reduces installation time
Additional Information:
Payment Terms : L/C,
Packaging Details : www.envirotechdelhi.co.in
Delivery Time : 4-6 WEEK
dwyer usa dxw-11-153-3 differential pressure switches
dxw-11-153-3 - dwyer wet/wet differential pressure switch, 25 - 50 psi, spdt, 1/4" npt female
dxw-11-153-3-dwyer
description
theseries dx is a differential pressure switchthat makes a contact output based on the differential between two pressure sources. Wetted materials of brass and flouroelastomer are suitable for use with most gases and water based solutions. The switch can be used for low differential pressure indication with set point on a decrease of pressure as low as 1 psid (0.07 bar). Differential set point ranges are available from 2.5 to 75 psid (0.17 to 5.17 bar) on increasing differential pressure and 1.0 to 67 psid (0.07 to 4.62 bar) on decreasing differential pressure. Unit features a high static pressure rating of 200 psig (13.8 bar). Weatherproof, ul type 4x, enclosure for dust laden, outdoor, or wash-down installation environments. Externally adjustable set point, integral mounting flange and a removable electrical terminal block for quick and easy installation.
weatherproof housing provides protection in the harsh, wet or dirty environments insuring switch's long-service liferemovable terminal block reduces installation time
Additional Information:
Payment Terms : T/T,
Packaging Details : http://www.envirotechdelhi.info
Delivery Time : 4 - 6 week
dwyer usa dxw-11-153-2 differential pressure switches
dxw-11-153-2 - dwyer wet/wet differential pressure switch, 10 - 25 psi, spdt, 1/4" npt female
dxw-11-153-2-dwyer
description
theseries dx is a differential pressure switchthat makes a contact output based on the differential between two pressure sources. Wetted materials of brass and flouroelastomer are suitable for use with most gases and water based solutions. The switch can be used for low differential pressure indication with set point on a decrease of pressure as low as 1 psid (0.07 bar). Differential set point ranges are available from 2.5 to 75 psid (0.17 to 5.17 bar) on increasing differential pressure and 1.0 to 67 psid (0.07 to 4.62 bar) on decreasing differential pressure. Unit features a high static pressure rating of 200 psig (13.8 bar). Weatherproof, ul type 4x, enclosure for dust laden, outdoor, or wash-down installation environments. Externally adjustable set point, integral mounting flange and a removable electrical terminal block for quick and easy installation.
weatherproof housing provides protection in the harsh, wet or dirty environments insuring switch's long-service liferemovable terminal block reduces installation time
Additional Information:
Payment Terms : L/C,
Packaging Details : www.envirotechindia.info
Delivery Time : 4 - 6 WEEK

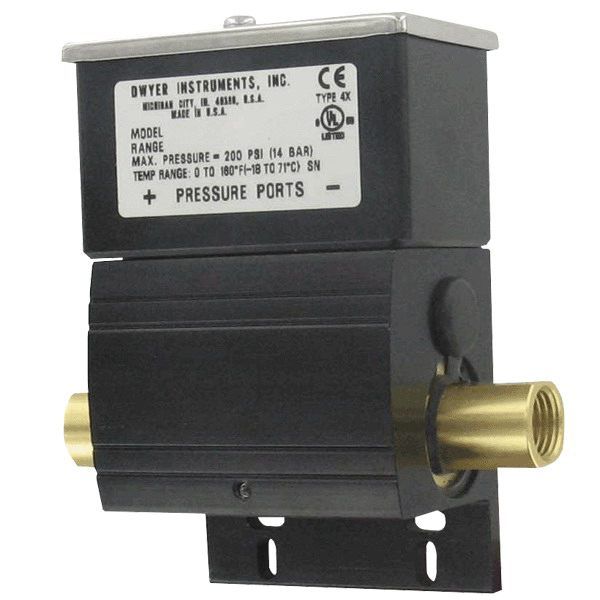

Series DX Wet Differential Pressure Switch
TheSeries DXis aDifferential Pressure Switchthat makes a contact output based on the differential between two pressure sources. Wetted Materials of Brass and Fluoroelastomer are suitable for use with most Gases and Water-based solutions. Standard is a Weatherproof, UL type 4X, an enclosure for dust-laden, outdoor, or wash-down installation environments.Series DXincorporates an externally adjustable set point, integral mounting flange and a removable electrical terminal block for quick and easy installation. The DX uses opposing diaphragms to sense the high and low pressure with a pivot mechanism that transfers the difference of the two pressures to theSPDT Switch.
Product Applications:
Indicating Filter Differential Pressure. For example initiating Water Filter backwash as the filter becomes clogged on increasing Differential Pressure.Proof of flow indicator monitoring differential pressure from a sensing device. For example sensing the pressure across an orifice plate to prove water flow.Proving flow through a pump by sensing the pressure across the pump to make sure the pump does not run dry.Proving flow through a chiller. Often called evaporator water pressure drop.Proving flow through a heat pump or AC unit. Often called a condenser water lock-out switch.
Additional Information:
Payment Terms : L/C, T/T,
Packaging Details : www.envirotechdelhi.net
Delivery Time : 4-5 WEEK
