Our Products

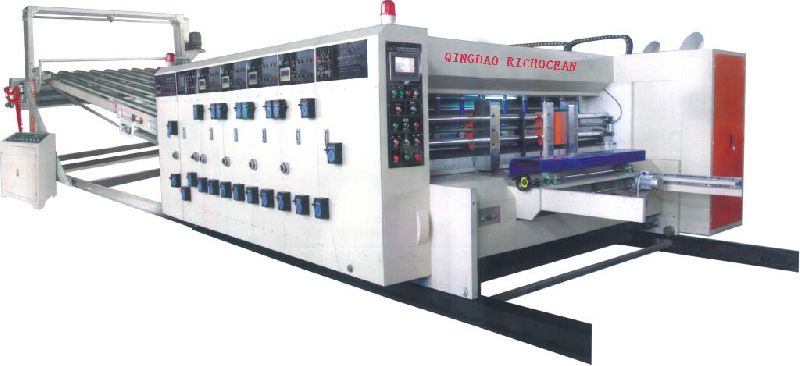

We offer the best product range of Printing Slotting Die Cutting Machine, Board Cutting Machines, Four Bar Rotary Cutting & Creasing Machine, Automatic Rotary Die Cutting Machine and Chain Feeding Rotary Die Cutting Machine.
We are offering Board Cutter Machine with complete usual accessories. Our machine comes with genuine sharp edge blades that ensure the optimum performance and is manufactured using good quality steel & other materials.

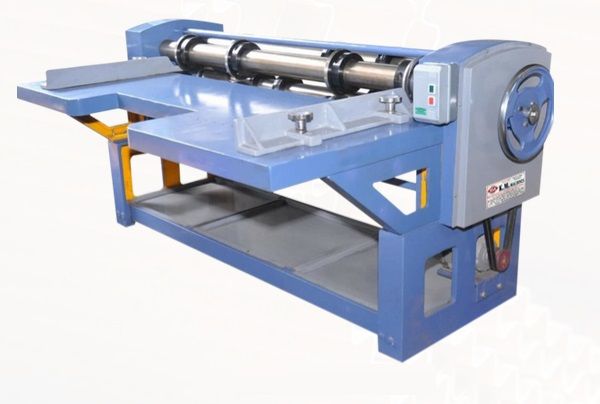

At K. M. Machines India we manufacture 4-bar rotary cutting & creasing machine which is the initial process carried in the manufacture of a corrugated box. It is simultaneously carried-over this machine. The 4-Bar Rotary Cutting & Creasing Machine consists of two pairs of shafts. The pair directly adjacent to the feed table carries the cutting dies & the second pair carries the creasing dies.
Both cutting & creasing dies are made in two halves bolted together, for easy removal from the shafts. The two lower shafts can be raised or lowered by means of a hand-wheel provided on the back side depending upon the thickness of the board (3ply. 5ply, 7ply, or 9ply boards) separate gauge of creasers can be used.
The sheets are piled on the feed table & fed through the machine by hand. Two guides are provided on the table to support the sheet for straight feeding.
Technical Data
| Size | Motor (H.P. | Wt Approx. (MT.) | Floor Space |
|---|---|---|---|
| 65" | 2.0 | 1.7 | 7' x 4' |
| 75" | 2.0 | 2.0 | 8' x 4' |
| 85" | 2.0 | 2.2 | 9' x 4' |
| 95" | 3.0 | 2.8 | 10' x 4' |

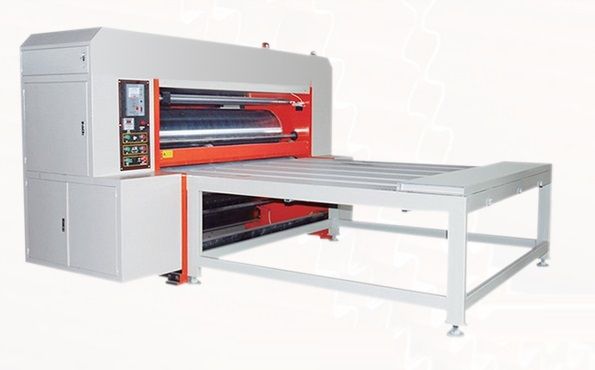

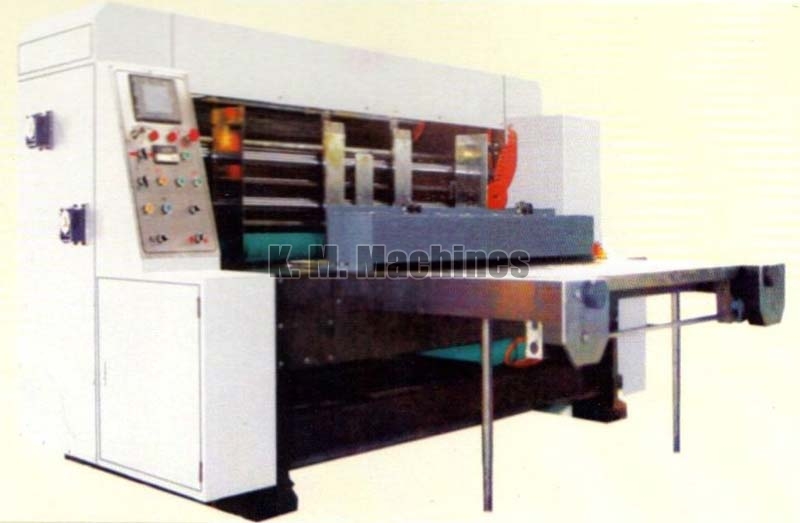

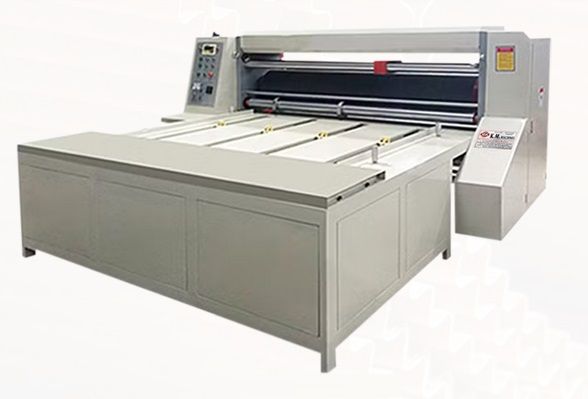

Automatic Rotary Die Cutting Machine comes with a slotting attachment and can be used to slot, crease, die cut and optionally print paper corrugated boards in one shot. Slotting attachment helps save changeover time and die costs for regular slotted (master or shipper) cartons. Rotary Die technology is more robust in handling corrugated boards from manual or semi automatic plants due to better ability to convert boards with higher moisture content.
Hence they are universally preferred in Indian subcontinent, African, Middle Eastern, Vietnam and other markets where manual, semi automatic and automatic plants are found in equal proportion
Technical Data
| NAME | UNIT | MODEL | |||
|---|---|---|---|---|---|
| Max. Coverage size | mm | 1500 x 2400 | 1500 x 2400 | 1270 x 2400 | 1270 x 2000 |
| Max. die-cutter area | mm | 1400 x 2200 | 1400 x 1800 | 1200 x 2200 | 1200 x 1800 |
| Max. mechanical speed | pieces / min | 60 | 60 | 115 | 115 |
| Hight of die-cutter | mm | 25.4 | 25.4 | 25.4 | 25.4 |
| Power of main motor | kw | 5.0 | 5.0 | 7.5 | 7.5 |

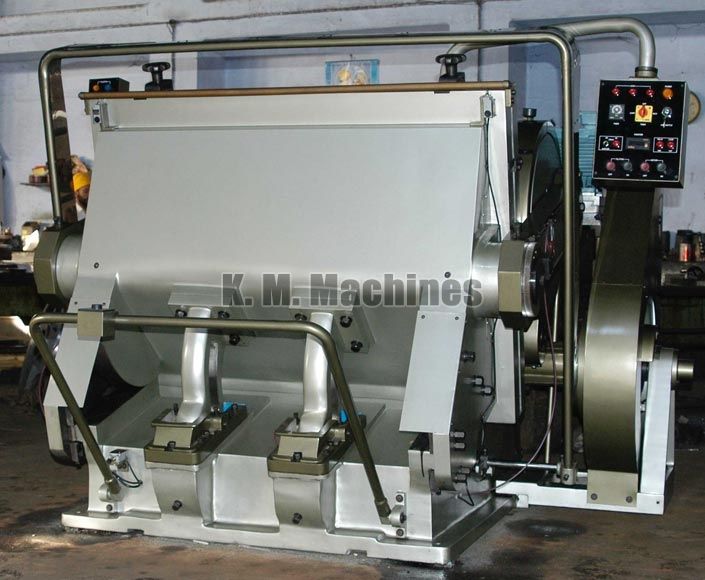

This heavy duty platen punching, creasing and embossing machine is particularly designed for heavy jobs of cutting, creasing and embossing of paper, linolium, cardboard, corrugated board, plastic and PVC material etc. The main Gears Shaft and Connecting Arms are mounted on Phosphorus Bronze Bushes.
Ball/Roller Bearing Mounted Crank Shaft drives the Platen through a Pair of high-speed Double Helical Gears (for increased strength) and two Pairs of reduction Spiral Gears being lubricated by Grease/Oil
Our constant strives for better machines & enormous experience gained over the years in the field of quality Die Cutting & Creasing Platens. We at S.R use quality materials suitable for every part of the machine, such as – Shafts, Cam and Roller, Sliding/Guiding Plates for the Moving Platen, Connecting Arms are mounted on Phosphorus Bronze Bushes. The Reduction Gear is made of Hardened Quality Alloy Steel/Cast Nylon.
Technical Specifications
| Platen Size (in) | 22×28 | 25×35 | 28×40 | 32×43 | 36×46 | 40×54 | 43x57 | 46×66 | 48x68 | 56×76 | 55×85 | 55×95 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inside Chase (in) | 20×26 | 22×32 | 25×37 | 29×40 | 33×43 | 37×51 | 40x54 | 43×63 | 45x65 | 53×73 | 52×82 | 52×92 |
| Platen Size (cm) | 56×71 | 63×88 | 71×101 | 81×109 | 91×116 | 101.6×137 | 109x145 | 116×167 | 122x173 | 142×193 | 140×216 | 140×241 |
| Inside Chase (cm) | 51×66 | 56×81 | 64×94 | 73×101.5 | 83×109 | 94×130 | 102x137 | 109×160 | 114x165 | 134×185 | 132×208 | 132×233 |
| H.P. Reqd. | 3 | 3 | 5 | 5 | 7.5 | 7.5 | 10 | 10 | 15 | 15 | 15 | 20 |
| Impr/hr | 1800 | 1700 | 1500 | 1400 | 1300 | 1100 | 1000 | 950 | 900 | 800 | 750 | 700 |
| Wt. approx. (Tons) | 2.75 | 3.75 | 4.25 | 4.75 | 5.5 | 6.5 | 7.5 | 9.5 | 10.5 | 13.5 | 15.5 | 18 |
| Area reqd. (cm) | 188×150×157 | 188×167×147 | 198×188×152 | 196×188×160 | 233×198×167 | 228x208x180 | 235×223×195 | 241×241×203 | 245x245x207 | 267×267×218 | 267×292×218 | 267×317×278 |
| Area reqd. (in) | 74×59×62 | 74×66×58 | 78×74×60 | 77×74×63 | 92×78×66 | 90×82×71 | 93×88×77 | 95×95×80 | 97x102x88 | 105×105×86 | 105×115×86 | 105×125×110 |

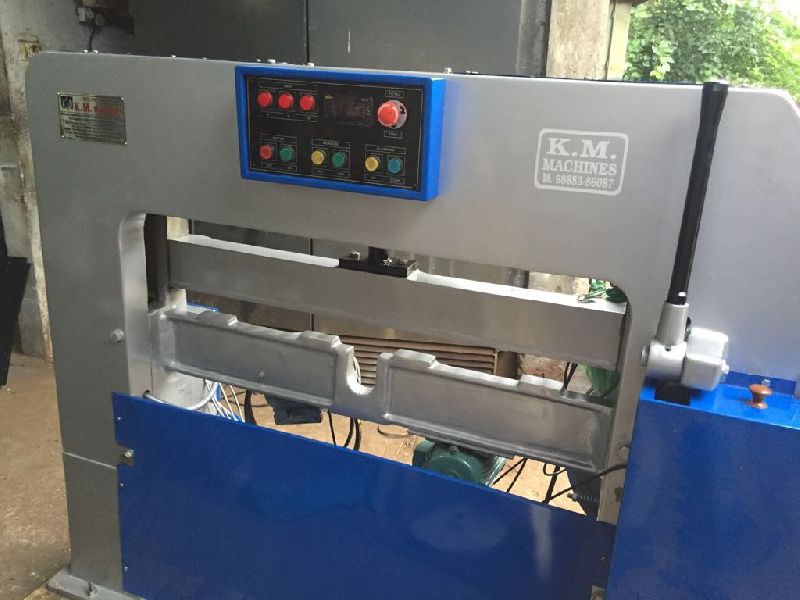

Friction clutch system for maximum efficiency and minimum maintenance. Hand clamp and Foot Clamp for smooth and easy operation Easy replacement of knife. Fine adjustment of knife height by eccentric levers. Adjustable back gauge for accurate parallelism with knife edge. Device provided with locking arrangement to avoid shift in the position of back gauge during operation. Safety and saving of space. Centralised lubrication of moving parts.
In the interest of product upgradation/improvement, the manufacturer reserves the right to change the specifications and features without notice.
Technical Data
| Machine Size | 33" (84 cm) | 36" (91 cm) | 43" (109 cm) |
|---|---|---|---|
| Length of Cut | 33" (84 cm) | 36" (91 cm) | 43" (109 cm) |
| Width of cut | 33" (84 cm) | 36" (91 cm) | 43" (109 cm) |
| Pile Cut | 4" | 4.5" | 5" |
| Cuts per Minute | 30 | 28 | 25 |
| Power Required | 2 H.P. | 3 H.P. | 3 H.P. |
| Space Reqd. | 5.5'×5.5'×6' | 6.5'×6.5'×6' | 7'×7'×6' |
| Gross Weight | 1600 Kgs. | 1800 Kgs. | 2000 Kgs. |

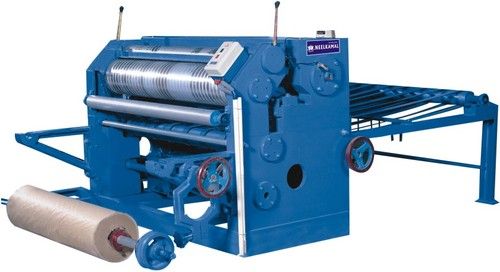

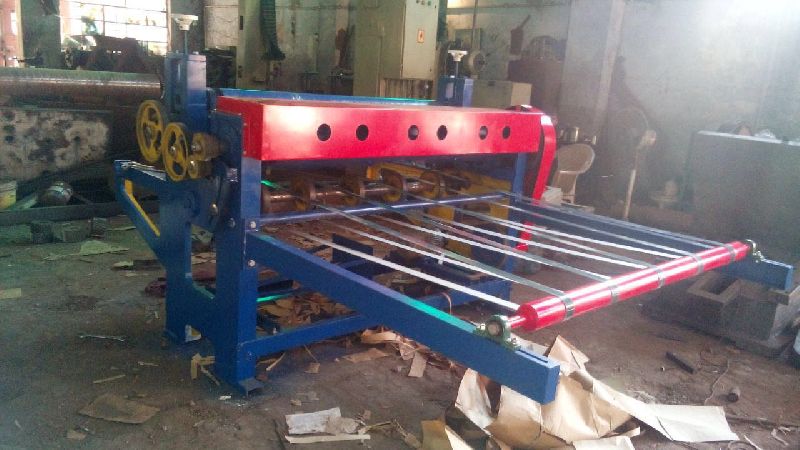

We are a renowned Paper Reel To Sheet Cutting Machine Manufacturer, Exporter and Supplier based in Punjab, India. Our Paper Reel To Sheet Cutting Machine is designed for straight cutting of sheet or two ply corrugated board without damaging flutes & linear paper. It is highly efficient machine that can be synchronized directly with corrugation machine as per the requirements. Our Paper Reel To Sheet Cutting Machine comes with PIV chain gear box for adjusting cutting length of sheet. Its maximum speed is 200 feet per minute.
Technical Data
| Size | Motor (H.P. | Wt Approx. (MT.) | Floor Space |
|---|---|---|---|
| 52" | 3.0 | 1.9 | 6'x x8' |
| 62" | 3.0 | 2.2 | 7' x 8' |

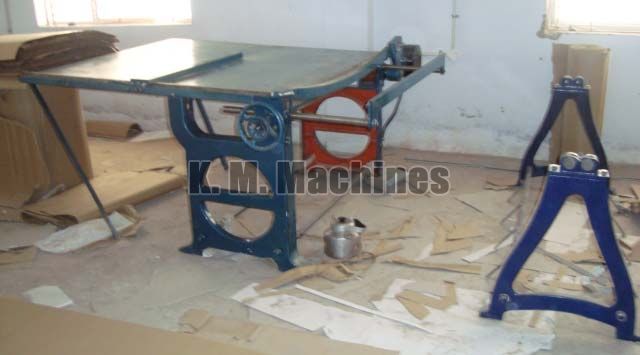

Corrugated Board Cutting Machine is a heavy duty hand operated machine used for Cutting Corrugated Board and Plain Paper. The front and back guides of Corrugated Board Cutting Machine are provided along with the cutting blades. We make available Corrugated Board Cutting Machine in bulk as well as small quantities. The name of our company surfaces prominently among the trusted Manufacturers, Exporters and Suppliers of Corrugated Board Cutting Machine from Punjab, India. Our Corrugated Board Cutting Machine is available in different technical specifications.
Technical Data
| Size | Wt Approx. (MT.) | Floor Space |
|---|---|---|
| 42" x 62" | 600 | 4' x 6' |
| 52" x 62" | 700 | 5' x 6' |
| 62" x 62" | 800 | 6' x 6' |
