Machine And Precision Tools

We offer the best product range of High Speed Water Based Ink Printing Slotting and Die Cutting Machine, Combined Rotary Slotting Machine and Overhung Eccentric Slotting Machine.

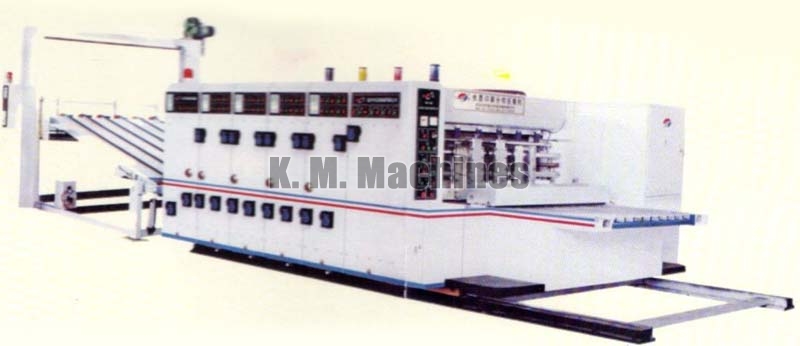

High Speed Water Based Ink Printing Slotting And Die Cutting Machine

Number Of Flower Flexo Printer Slotter Machine
Availability 100-1000kg
Country of Origin 110V
Automatic Grade Automatic
Power 1-3kw
Driven Type Electric
Feature High Performance, Low Power Consume, Reliable, Rust Proof
Total Carbohydrate 1year

Being a reputed name in this business, we are engaged in providing High Speed Water Based Ink Printing Slotting and Die Cutting Machine. We are Manufacturer, Exporter & Supplier of Slotting and Die Cutting Machine based in Punjab, India. The product is accessible in various specifications to meet the variegated needs of the buyers. Our Slotting and Die Cutting Machine requires low maintenance and offered at industry leading rates.

High Speed Water Based Ink Printing Slotting and Die Cutting Lachine :

As per the high requirement, dependability and safely, the Whole set of machine conveniently is designed and manufactured. You can exchange the order forms quicken and operate
Specially hardened and grinded gears of more than 60* hardness.
All the spaces can be hand or electrically adjusted, (Optional).
Digital inputting electric face or imported pic and multi-functional control of the touch screen is adopted. (Optional)
Dampedm Speed 120m-200m/min.
Available Width 1400mm - 1800mm & available Diameters are 280 mm, 320mm, 360 mm.
Separate Upper & Lowe Roll from the main machine with guide way equipped to the bridge easy to replace rolls.
Vacuum suction system provide perfect flute shape. Blast valume controller is equipped.
Gimble transmission, individual driving box to improve running stability. Gears are all lubricated with special grease to provide outstanding sealing performance and reliable lubricating.
Guide way slipping of gluing roll and upper roll, easy to replace rolls.
Pneumatic control of lifting and lowering of the upper roll, press roll, gluing roll,
The bearings of corugated rolls and press rolls are lubricated by high temperature lubricating grease.
Motorized digital read out device. Manual adjustment of glue application amount.

Details

Technical Data	1300X2200	1300X2200	1300X2200
Max. Speed (pcs/min)	100	100	100
Max. Size of Paper Board (mm)	1300X2200	1300X2200	1300X2200
Min. Size of Paper Board (mm)	320X650	320X650	320X650
Max. Depth of Slot (mm)	320	320	320
Max. thickness of Paper Board (mm)	12	12	12
Max. Printing Area (mm)	1300X2200	1300X2200	1300X2200
Thickness of Standard Printing Plate (mm)	6	6	6

View Complete Details

Ask Latest Price & Details

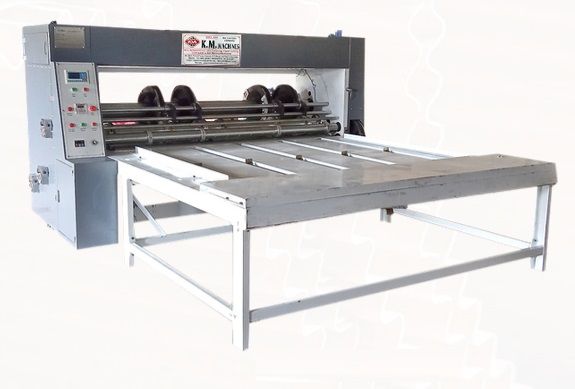

Combined Rotary Slotting Machine

Min. Order (MOQ) 1 Piece
Voltage 480 V
Automatic Grade Automatic
Country of Origin India
Size 85 Inch
Frequency 60 Hz
Material Mild Steel

This machine has become a basic requirement for any packaging house in the past decade. This machine is basic requirement of corrugated box industry to slot/slit scoring after height creasing and slitting of board to make corrugated box

Our unique strengths for Combined Rotary Slotter Machine (Carton Box Making Machine):

Over a decade of R&D to custom design and perfect the product for Indian subcontinent
1, 000+ installations live in slotter family
Highly trained and nuanced team of installation technicians
24*7 availability of complete range of spares and accessories (only such platform in India).

Technical Data

Model	2200 x 1400	2400 x 1400	2600 x 1400	2800 x 1400	2600 x 1600	2800 x 1600
Roller diameter (mm)	468	468	468	468	530	530
Max Feeding size (mm)	1470 × 2200	1470 × 2400	1470 × 2600	1470 × 2800	1570 × 2600	1570 × 2800
Electrical power (KWH)	3.0	3.0	3.0	4.0	4.0	5.5
Slotting width* depth (mm)	7	7	7	7	7	7
Transmission mode	Chain Type	Chain Type	Chain Type	Chain Type	Chain Type	Chain Type
Slot Accuracy (mm)	+-1.5	+-1.5	+-1.5	+-1.5	+-1.5	+-1.5
Work speed (sheets/min)	0-60	0-60	0-60	0-60	0-60	0-60

View Complete Details

Ask Latest Price & Details

Overhung Eccentric Slotting Machine

Number Of Flower Eccentric Slotter Machine
Availability 100-1000kg
Country of Origin 110V
Automatic Grade Automatic
Power 9-12kw
Driven Type Electric
Total Carbohydrate 1year

Our organization has established a remarkable presence in global market for offering Overhung Eccentric Slotting Machine. The Overhung Eccentric Slotting Machine that we offer is precisely designed using modern tools and optimum grade components in variegated specifications. This slotting machine facilitates corner cutting and three slots simultaneously. Featuring robust construction, our Overhung Eccentric Slotting Machine is equipped with two side gauges ensuring accurate feeding. Further, we provide Overhung Eccentric Slotting Machine at the best market prices.

Technical Data
