Our Products
Leading Manufacturer, Supplier & Retailer of Thin Blade Rotary Slotting Machine and Eccentric Slotter.
This machine offers high rate of production and enhanced efficiency. It prints paper , boards, corrugated sheets with either based ink or solvent based ink. Hard chromium plated impressions roller is provided for sharp impression and quality printing. Variable speed controller with D.C. Motor and electronic digital sensor counter with panel box is provided for economy in wastage and better quality.
Technical Data
| Machine Size | 52"x88" | 62"x88" |
|---|---|---|
| Printing Area | 50"x85" | 60"x85" |
| Motor Required (H.P) | 3 | 3 |
| Floor Space | 204"x82" | 204"x92" |
| Machine Height | 62" | 62" |
| Gross Weight (Kgs) | 2400 | 2800 |
| Production Capacity/Hr. | 1200 | 1200 |

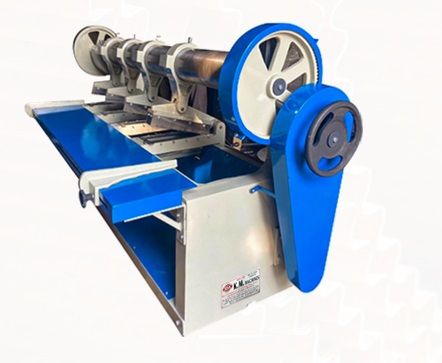

Our machine is highly reputed for accuracy and quality. The machine is provided with three slotting heads and one corner head. These heads can be set quickly and accurately by handle. Screw arrangement is provided for adjustment of side cutter after regrinding.
Technical Data
| Size | Motor H.P. | Max. Slot Dept | Weight App. (MT) | Floor Space |
|---|---|---|---|---|
| 65” | 2 | 17” | 1.8 | 7’×4’ |
| 75” | 3 | 18” | 2.2 | 8’×4’ |
| 85” | 3 | 18” | 2.4 | 9’×4’ |
| 95” | 5 | 18” | 3 | 10’×4’ |
