Our Products
We are leaders in the market for providing best range of Hydraulic Fully Automatic Paper Cutting Machine, Fully Automatic Paper Cutting Machine and Treadle Paper Cutting Machine
A Hydraulic Fully Automatic Paper Cutting Machine is an advanced device designed for high-precision cutting of paper, cardboard, and similar materials in bulk. It features hydraulic power for blade operation and automated controls for clamping, feeding, and cutting. Equipped with a programmable interface, it allows users to set cutting dimensions and sequences for repetitive tasks. Safety features, robust construction, and high-speed performance make it ideal for large-scale printing, packaging, and publishing industries.
Technical Specifications
| Model | 33 | 37 | 43 |
|---|---|---|---|
| Cutting Length | 840 mm (33”) | 900 mm (37”) | 1070 mm (43”) |
| Cutting Width | 840 mm (33”) | 900 mm (37”) | 1070 mm (43”) |
| Clamp Opening | 100 mm (4”) | 113 mm (4½”) | 125 mm (5”) |
| Cuts per Minute (approx) | 30 | 25 | 20 |
| Power required | 2 H.P. | 3 H.P. | 3 H.P. |
| Power for Motorized Back Gauge | ½ H.P. | ½ H.P. | ½ H.P. |
| Machine Dimensions | 1650 x 1650 mm (66” x 66”) |
1950 x 1950 mm (78” x 78”) |
2150 x 2150 mm (86” x 86”) |

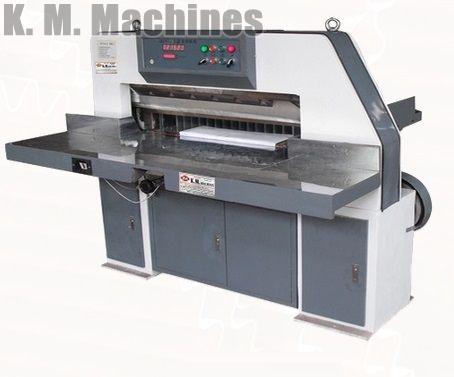

High Speed Fully Automatic Paper Cutting Machine comes with suspended pendulum scissor cut for smooth and pressure free cutting. It is available with motorized back gauge and motorized clamping. It features Double drum multi disk Clutch & Brake and Adjustable Main Plate to deliver outstanding performance. We are enlisted among the reputed Manufacturers, Exporters and Suppliers of High Speed Fully Automatic Paper Cutting Machine. We are efficient enough to process retail as well as bulk orders for High Speed Fully Automatic Paper Cutting Machine even at short notice period.
Technical Data
| Size | Pile Height | Cuts/Minute | Power (H.P.) |
|---|---|---|---|
| 33" | 4" | 30 | 4 |
| 42" | 5" | 26 | 6 |
| 52" | 5 | 24 | 6 |
Technical Specifications
| Size | 20" | 26" | 32" | 36" | 42" | 48" | 52" |
|---|---|---|---|---|---|---|---|
| Pile Height | 3½" | 4" | 4½" | 5" | 5" | 5" | 5" |
| Cuts / Minute | 10 | 8 | 6 | 6 | 6 | 6 | 6 |
| Power (H. P.) | 1 | 1 | 1.5 | 1.5 | 2 | 2 | 3 |
| Floor Space | 42”x42” | 57”x51” | 65”x 60” | 67”x 62” | 70”x 65” | 82”x 72” | 58”x 78 |
