Our Products
Our offered Product range includes Semi Automatic Flute Lamination Machine, Thermal-Cold Lamination Machine, Plain Lamination Machine, Window Cum Plain Lamination Machine and Cold Laminating Machine.
We have cemented our position as a reliable Manufacturer, Exporter and Supplier of Semi Automatic Flute Lamination Machine from Punjab, India. Perfect speed, accurate dimensions and precisely designed, our Lamination Machine is comprehensively in demand. As far as the cost is concerned, the Semi-Automatic Lamination Machine can be obtained at the nominal prices. Whether you place small or a bulk order, we will deliver the same well in time.
Features :
Technical Specifications
|
Max Sheet Size mm |
1000x1000 |
1300x1100 |
1450x100 |
|---|---|---|---|
|
Min Sheet size mm |
320x450 |
320x450 |
320x450 |
|
Total Power Kw |
7 |
7 |
7 |
|
Max speed m/min |
0-60 |
0-60 |
0-60 |
Our company is an eminent Manufacturer, Exporter & Supplier of Thermal-Cold Lamination Machine from Punjab, India. The offered Lamination Machine is fabricated using top grade components under the stringent eye of our professionals. We stock the machine in our spacious warehouse to easily cater to bulk requirements of the buyer. Available in 24" and 30" models, we are offering superior quality Thermal-Cold Lamination Machine at highly affordable rates.
Technical Specifications
|
Model |
24" |
30" |
|---|---|---|
|
Maxi. Sheet Width |
25.5" |
31.5" |
|
Paper stock Range |
100-500 (GSM) |
100-500 (GSM) |
|
Maxi. Machine Speed |
5 /30 (mtrs/min) |
5/30 (mtrs/min) |
|
Heating System |
Electrical with PID controller |
Electrical With PID Controller |
|
Power |
Heater 3000 watts, I phase Motor 1.5 HP DC Drive I Phase |
Heater 3000 watts, I Phase Motor 1.5 HP DC Drive I phase |
|
Feeding |
Manual |
Manual |
|
Air |
Compressed |
Compressed |
|
- |
5-6 Bar Pressure Motor 2 HP 3 Phase |
5-6 Bar Pressure Motor 2 HP 3 Phase |

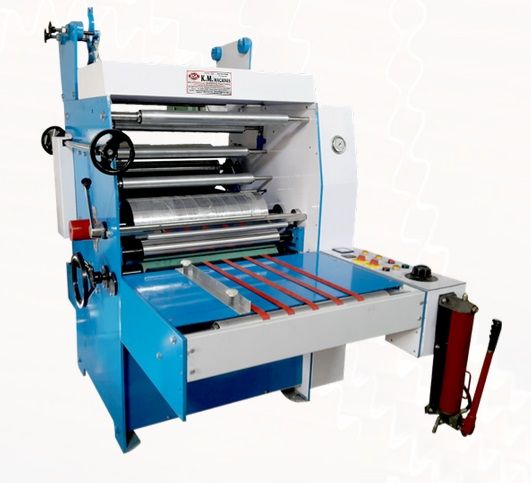

A Plain Lamination Machine is designed to apply a protective film over flat surfaces, such as documents, photos, or packaging materials, enhancing durability and providing a professional finish. It uses heat and pressure to bond the lamination film securely to the material, ensuring a smooth and wrinkle-free result. Ideal for commercial and industrial applications, it offers features like adjustable speed, temperature control, and user-friendly operation for consistent performance.
Technical Data
| Lamination Width | 24" | 32" | 48" |
|---|---|---|---|
| Max. Speed / Hr (Ft) | 1800 | 1800 | 1800 |
| Elec REq. (Single Ph) | 1.5 HP | 2.0 HP | 3.0 HP |
| Film Roll Width | 24" | 32" | 48" |
| Film Roll Dia | 12" | 12" | 12" |
| Weight App | 1000 Kg | 1300 Kg | 1500 Kg |

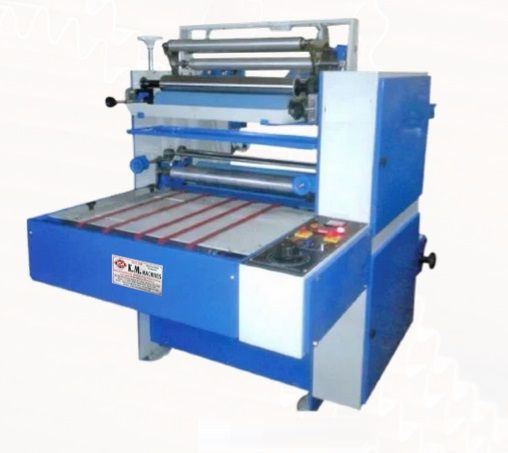

Window Cum Plain Lamination Machine that we offer accompanies D.C. Drive Variable Speed Control and Hard Chrome Rolls. It is reasonable for Roll to Roll and Strip Lamination. The Adjustable Gum Tray and Film Slitting Attachment of our Window Cum Plain Lamination Machine are planned remembering the solace of the client. It includes a Separate Rewinding and Gumming Section. We are one of the prominent Manufacturers, Exporters and Suppliers of Window Cum Plain Lamination Machine in Amritsar, India.
Technical Data
| Lamination Width | 24" | 32" | 48" |
|---|---|---|---|
| Max. Speed / Hr (Ft) | 1800 | 1800 | 1800 |
| Elec REq. (Single Ph) | 1.5 HP | 2.0 HP | 3.0 HP |
| Film Roll Width | 24" | 32" | 48" |
| Film Roll Dia | 12" | 12" | 12" |
| Weight App | 1200 Kg | 1500 Kg | 1700 Kg |
With our excellence in this field, we share forefront for supplying world-class array of products from Amritsar(India). Our up-to-date logistic facilities support us in meeting the delivery deadlines promised to the customers.
