Paper Work & Making Machinery
We offer a complete product range of Double Profile Corrugation Machine

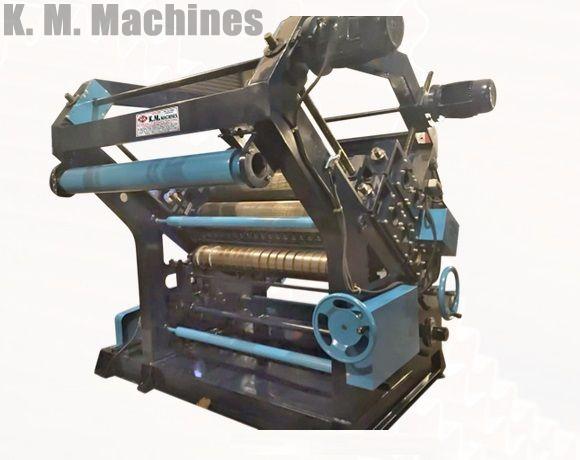

Double Profile Corrugation Machine
-
Min. Order (MOQ)
1 Piece
-
Heating Type
Steam Heating Or Thermic Fluid Heating
-
Special Feature
Motorized Lifting And Lowering Of Fluting Roll Assembly
-
Changeover Time
Immediate And Trouble-free Change Over In 5 Minutes
-
Flute Roll Sets
Two Sets Of Any Two Types Of Flute Roll
-
Space Saving
Saves Precious Space In Factory
-
Bearing Type
Bearing Mounted Rolls
-
Driven Type
Hydraulic
-
Color
Grey
-
Application
industrial
-
Size
42", 52", 62", 72", 84"
-
Steam Req. Kg/Hr
200, 300, 400
Feature
- Double Profile Single Face Corrugation Machine with bearing mounted rolls. Saves precious space in factory
- Machine is supplied with two sets of any two types of flute roll
- Immediate & trouble-free change over of fluting medium in just five minutes
- Motorized lifting & lowering of fluting roll assembly.
- The machine is recommended to be used on steam heating or thermic fluid heating.
Technical Data
| Size |
42 |
52 |
62 |
72 |
84 |
| Motor (H.P.) |
9 |
11.5 |
11.5 |
14 |
16.5 |
| Heating Load KW |
19 |
18 |
21 |
25 |
25 |
| Wt. Approx. |
5 |
5.5 |
6 |
6.5 |
7.5 |
| Floor Space |
7.5×15 |
8.5×15 |
9.5×15 |
10.5'×15 |
11'×18 |
