Our Products
We offer a complete product range of NC Leveller Feeder, NC Servo Roll Feeder with Precision Anti Backlash Gearbox, NC Servo Roll Feeder for Progressive Die, NC Servo Roll Feeder for Gasket and NC Servo Roll Feeder for Rack Manufacturing
Heavy duty coil feeding lines for Press Feed equipments
Specifications
| Model | C-400 | C-600 | C-800 |
|---|---|---|---|
| Parameters | |||
| Width (mm) | 400 mm | 600 mm | 800 mm |
| Thickness (mm) | 0.7 - 3.0 mm | 0.8 - 6.0 mm | 0.8 - 6.0 mm |
| Max Coil Weight | 5000 Kg | 5000 Kg | 5000 Kg |
| Straitening Capacity / Width | 3.0 x 400 mm | 2.5 x 600 mm | 2.5 x 600 mm / 2.0 x 800 mm |
| 6.0 x 300 mm | 6.0 x 300 mm | ||
| Coil OD | 1500 mm | 1500 mm | 1500 mm |
| Coil ID | 508 | 508 | 508 |
| Features | Coil Car, Hydraulic Expansion, Snubber, Piller, Pre-Pinch, Auto Side Guide, Pressure Roller, Hydraulic Power Pack. |
Coil Car, Hydraulic Expansion, Snubber, Piller, Pre-Pinch, Auto Side Guide, Pressure Roller, Hydraulic Power Pack. |
Coil Car, Hydraulic Expansion, Snubber, Piller, Pre-Pinch, Auto Side Guide, Pressure Roller, Hydraulic Power Pack. |
| Line Speed (Max) | 15 | 15 | 15 |
Technical specifications are indicative and subject to change to suit end application.
Additional Information:
Packaging Details : Depend
Delivery Time : Ready to dispatch
Additional Information:
Packaging Details : As per required
Delivery Time : Ready Stock
Additional Information:
Packaging Details : Depends
Delivery Time : Ready to Dispatch
Additional Information:
Packaging Details : Suitable
Delivery Time : Ready stock
Additional Information:
Delivery Time : Ready Stock
Additional Information:
Delivery Time : Ready Stock
Additional Information:
Delivery Time : Ready Stick

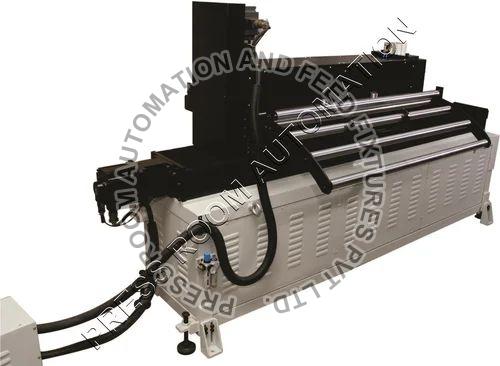

Press Room Automation has designed circle cutting line with 1300 mm width & 1.2 mm Thk Zig Zag Servo Feeder with following features.
Additional Information:
Packaging Details : Suitable
Delivery Time : 4-6 Week
Specifications
| Model | SZZ – A300 | SZZ – B300 | SZZ – BH400 | SZZ – B600 | SZZ – C800 | SZZ – C1300 |
|---|---|---|---|---|---|---|
| Material Thickness | 0.3-2.0 | 0.3-3.0 | 0.3-3.0 | 0.5-2.0 | 0.3-1.5 | 0.3-1.2 |
| Width | 100-300 | 100-300 | 150-400 | 200-600 | 250-800 | 400-1300 |
| Circle Diameter | 30-159 | 30-159 | 40-212 | 60-320 | 80-427 | 100-695 |
| SPM | 40-60 | 35-55 | 30-50 | 25-40 | 20-40 | 15-40 |
Additional Information:
Packaging Details : Suitable
Delivery Time : 4 months
Additional Information:
Packaging Details : Wooden Box
Delivery Time : Ready Stock

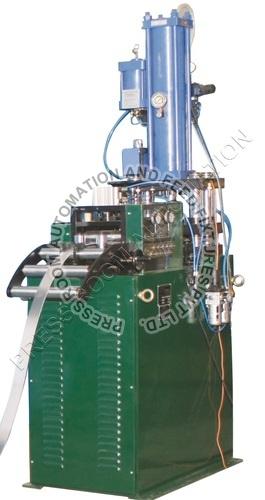

These NC Servo Feeders cum Straighteners are high in demand due to their quality. We offer an invoice stating the payment terms as well as other details required for the final payment. In addition, our transaction modes are simple, safe and reliable. We follow strict warehousing rules and thus we keep the extensive range of products safe in our well-structured warehouse, which is supervised by our team of experts.
Additional Information:
Packaging Details : Depend
