We offer the best product range of 500 Kg Pneumatic Feeder With Motorized Decoiler, Zig Zag Pneumatic Feeder, Palletized Racking Pneumatic Feeder, Pull through Wire Straightener Pneumatic Feeder and Pneumatic Feeder with Mounting Stand and Support Stand.

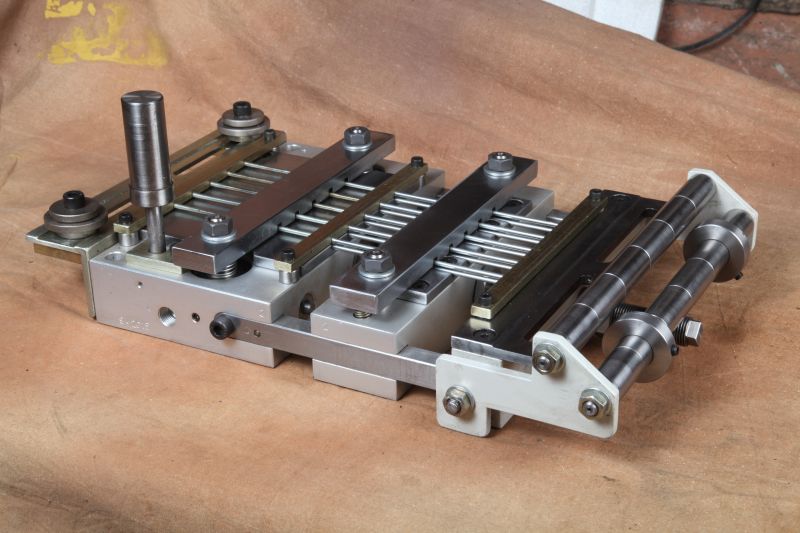

Heavy Series Pneumatic Feeder is used to feed width from 300-400 mm & thicker material from 3.0-4.0 mm. Heavy & Extra Heavy Series Feeders are most suitable for medium size components with higher thickness.
Heavy Series (HS)
| Max width in mm | Max stroke Length in mm | Max strip Thickness mm | Max strokes Per minute | Pressure of fix Clamps kg. | Pressure of Mobile Clamps kg. | Traction force Kg. | Total Consumption CC/Stroke | Weight Kg. |
|---|---|---|---|---|---|---|---|---|
| 125 | 100 | 4 | 100 | 126 | 757 | 120 | 2.2 | 40 |
| 200 | 200 | 3 | 60 | 126 | 757 | 120 | 4.5 | 57 |
| 300 | 300 | 2 | 40 | 126 | 757 | 120 | 6.75 | 76 |
| 400 | 400 | 1.5 | 25 | 126 | 757 | 120 | 9 | 95 |
Pneumatic Feeder with Motorized De-coiler used for smaller size coil with Antenna Sensor for small electrical components (Suitable 150 mm Width X 1.0 mm Thickness).

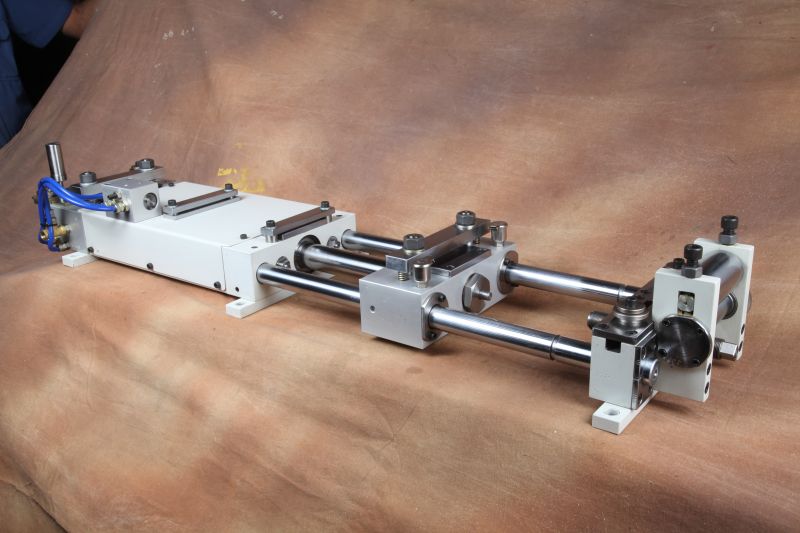

Extra Mid Series Pneumatic Feeder is used to feed width from 100-600 mm & thickness from 0.5-2.5 mm material. It is most suitable for manufacturing small auto parts, kitchen appliances, utensils, furniture & fixtures, Locking Systems, etc.
Extra Mid Series (EMS)
| Max width in mm | Max stroke Length in mm | Max strip Thickness mm | Max strokes Per minute | Pressure of fix Clamps kg. | Pressure of Mobile Clamps kg. | Traction | Total Consumption CC/Stroke | Weight Kg. |
|---|---|---|---|---|---|---|---|---|
| force Kg. | ||||||||
| 100 | 100 | 2.5 | 140 | 65 | 137 | 40 | 0.77 | 18.5 |
| 100 | 200 | 2 | 80 | 65 | 137 | 40 | 1.73 | 19.5 |
| 100 | 300 | 1.5 | 60 | 65 | 137 | 40 | 2.56 | 20.5 |
| 150 | 150 | 2 | 100 | 65 | 137 | 40 | 1.54 | 23 |
| 225 | 200 | 1.2 | 80 | 65 | 137 | 40 | 1.73 | 30 |
| 300 | 300 | 0.6 | 60 | 65 | 137 | 40 | 2.56 | 35 |
| 400 | 100 | 1 | 80 | 65 | 137 | 40 | 0.77 | 42.5 |
| 600 | 100 | 0.5 | 60 | 65 | 137 | 40 | 0.77 | 51 |

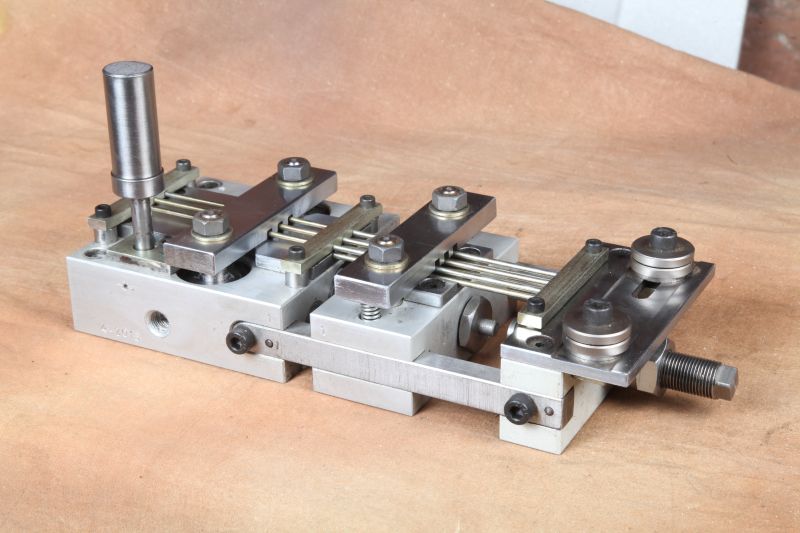

Light Series Pneumatic Feeder is majorly used to feed the lower width from 10-100 mm & thickness from 0.5-0.8 mm material. It is most suitable for smaller components like surgical blades, shaving blades mfg. industries etc.
Technical Specifications
| Max width in mm | Max stroke Length in mm | Max strip Thickness mm | Max strokes Per minute | Pressure of fix Clamps kg. | Pressure of Mobile Clamps kg. | Traction force Kg. | Total Consumption CC/Stroke | Weight Kg. |
|---|---|---|---|---|---|---|---|---|
| 50 | 50 | 1 | 220 | 44 | 92 | 19 | 0.18 | 4.75 |
| 100 | 50 | 0.5 | 200 | 44 | 92 | 19 | 0.18 | 6.75 |
| Air Pressure Required 5 to 8 kg. | ||||||||

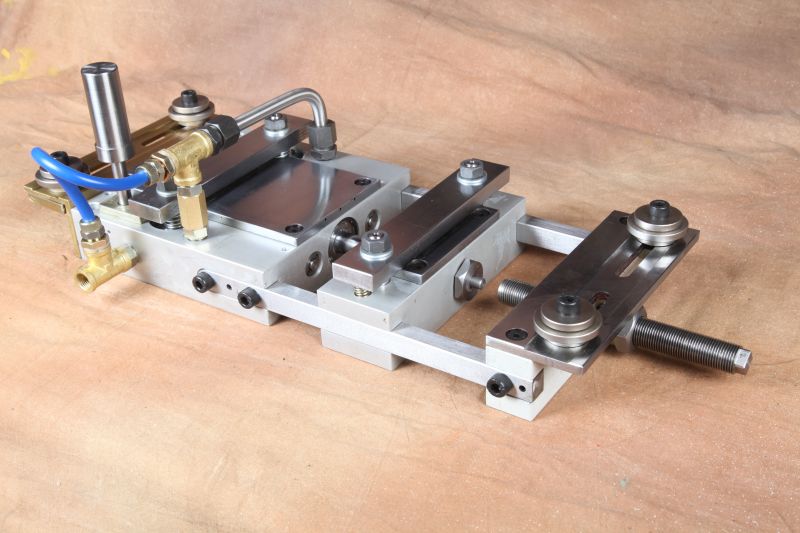

Mid Series Pneumatic Feeder is majorly used to feed medium width from 50-150 mm & thickness from 0.5-1.8 mm material / 300 mm Width X 0.5 mm thickness. It is most suitable for manufacturing electrical stampings, wad material (PP Caps), fencing products, hair clips, jeans buttons, hardware items etc.
Mid Series (MS)
| Max width in mm | Max stroke Length in mm | Max strip Thickness mm | Max strokes Per minute | Pressure of fix Clamps kg. | Pressure of Mobile Clamps kg. | Traction | Total Consumption CC/Stroke | Weight Kg. |
|---|---|---|---|---|---|---|---|---|
| force Kg. | ||||||||
| 50 | 50 | 2 | 200 | 65 | 137 | 35 | 0.28 | 7.5 |
| 50 | 100 | 1.8 | 140 | 65 | 137 | 35 | 0.56 | 9.5 |
| 100 | 100 | 1.8 | 140 | 65 | 137 | 35 | 0.56 | 11.5 |
| 100 | 150 | 1.6 | 100 | 65 | 137 | 35 | 0.84 | 15 |
| 150 | 50 | 1.8 | 140 | 65 | 137 | 35 | 0.28 | 10.5 |
| 150 | 150 | 1.5 | 100 | 65 | 137 | 35 | 0.84 | 17 |
| 300 | 100 | 0.5 | 140 | 65 | 137 | 35 | 0.56 | 23.5 |
| 300 | 150 | 0.3 | 100 | 65 | 137 | 35 | 0.84 | 25 |

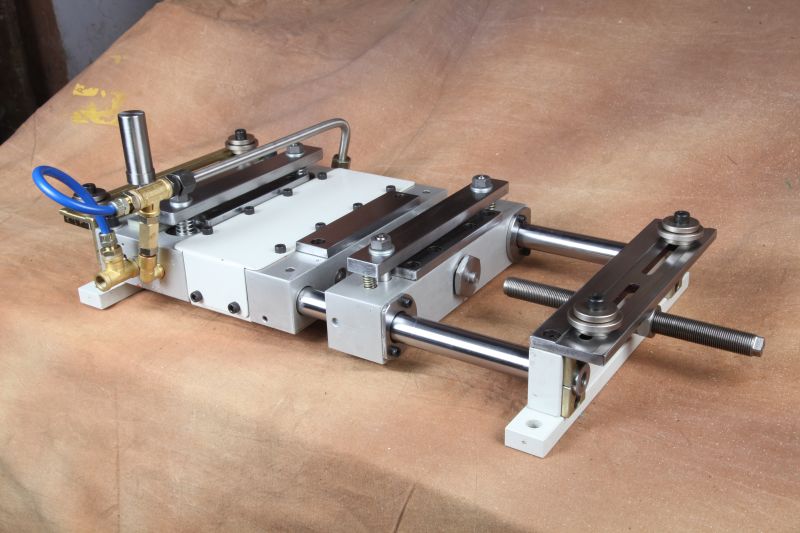

Extra Mid Series Pneumatic Feeder is used to feed width from 100-600 mm & thickness from 0.5-2.5 mm material. It is most suitable for manufacturing small auto parts, kitchen appliances, utensils, furniture & fixtures, Locking Systems, etc.
The Feeder will be actuated by Remote Valve via Solenoid Valve, Proximity Sensor and Cam Assembly along with pilot release mechanism for piloted tools and thin strip guiding device for feeding material below 0.5 mm thickness.
| Extra Mid Series (EMS) | ||||||||
| Max width in mm | Max stroke Length in mm | Max strip Thickness mm | Max strokes Per minute | Pressure of fix Clamps kg. | Pressure of Mobile Clamps kg. | Traction | Total Consumption CC/Stroke | Weight Kg. |
| force Kg. | ||||||||
| 100 | 100 | 2.5 | 140 | 65 | 137 | 40 | 0.77 | 18.5 |
| 100 | 200 | 2 | 80 | 65 | 137 | 40 | 1.73 | 19.5 |
| 100 | 300 | 1.5 | 60 | 65 | 137 | 40 | 2.56 | 20.5 |
| 150 | 150 | 2 | 100 | 65 | 137 | 40 | 1.54 | 23 |
| 225 | 200 | 1.2 | 80 | 65 | 137 | 40 | 1.73 | 30 |
| 300 | 300 | 0.6 | 60 | 65 | 137 | 40 | 2.56 | 35 |
| 400 | 100 | 1 | 80 | 65 | 137 | 40 | 0.77 | 42.5 |
| 600 | 100 | 0.5 | 60 | 65 | 137 | 40 | 0.77 | 51 |
Additional Information:
Payment Terms :
Packaging Details :Depend
Delivery Time :Ready Stock
Additional Information:
Packaging Details :Suitable
Delivery Time :Ready Stock
