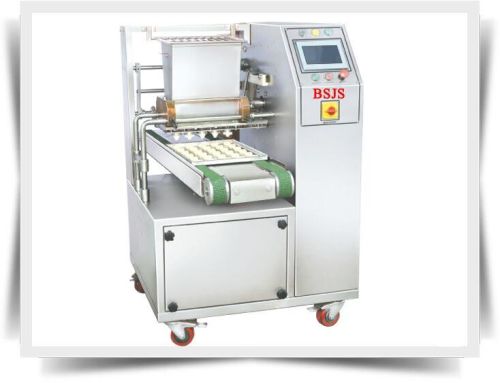

Cookie Dropping Machine

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

SALIENT FEATURES Adjustable speed and time of depositing rollers. Adjustable speed of rotation of nozzles. Automatic advancement of tray. Mechanism of servo motor with....

View More Details

Send Enquiry

Company Information

B. S. Jagdev & Sons

Janta Nagar, Ludhiana, Punjab

View Number

Member Since 17 Years
Nature of Business Exporter
Year of Establishment 1996

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

SALIENT FEATURES

	Adjustable speed and time of depositing rollers.
	Adjustable speed of rotation of nozzles.
	Automatic advancement of tray.
	Mechanism of servo motor with heavy duty gear boxes.
	Double sensor system of zero nozzles breakage.
	Computerized height adjustable conveyor belt.
	Complete sets of nozzles, free of cost.
	Single person operation mode or continuous cycle mode.
	Anti slip conveyor belt in order to ensure the precise position of cookies on the Tray.
	Adjustments for number of biscuits to be deposited per tray.
	Heavy duty motors and electronic circuits designed to tolerate Varying power supply conditions.
	The entire wiring of the machine is done on international standards in R,Y,B coding and marking.
	Machines available for single or three phase supply as per requirements.
	Multi layered and conical shaped cookies.
	Sponge cake and cup cake depositing.
	Servo drive controls for high speed and accuracy.
	Tip control mechanism.
	Hole in center of cookies for high depositing filling jam etc.
	Assorted cookies by the same nozzles in single tray.

MODEL	Tray Width Required	Max. Production Capacity Per Hour	Weight Of Machine	Dimension of Machine (LWH)	Power Load KW
4	12"/ 300 mm	52 kg	550 kg	800 x 1050 x 1650	2.25
5	15"/ 380 mm	65 kg	750 kg	800 x 1050 x 1650	2.25
6	16"/ 400 mm	78 kg	750 kg	800 x 1050 x 1650	2.50
7	18"/ 450 mm	91 kg	850 kg	800 x 1050 x 1650	2.50
8	20"/ 500 mm	120 kg	850 kg	800 x 1200 x 1650	3.0
9	24"/ 600 mm	130 kg	950 kg	800 x 1200 x 1650	3.5
10	27"/ 680 mm	140 kg	950 kg	800 x 1450 x 1650	3.5
12	32"/ 800 mm	150 kg	1250 kg	800 x 1450 x 1650	4.5
