Digital Timer / Counter

Listing ID #3948722

Get Latest Price

Supply Type Manufacturer, Exporter, Supplier

Preferred Buyer From : All over the world

Applications Process Industries. Ovens & Furnaces. Engineering Units. Textile & Printing Industries. Machine Control. Fuse & Switchgear Testing Lab. Plastic & Packaging units. Cut to length control. Features Thumbwheel setting. Precision Accuracy. Rugged and reliable. Available in various modes like one shot, stop watch, cyclic, etc...

View More Details

Send Enquiry

Product Details

Specifications

MODEL

TIMER : DTDR - 4000.

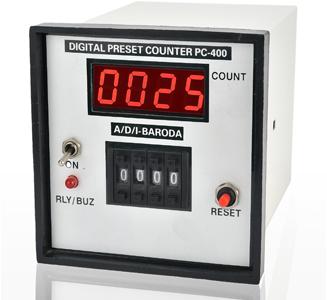

COUNTER : PC - 400.

INPUT

Crystal Time Base.

Inductive Proximity Switch/Infra Red Limit Switch.

DISPLAY

4 digit - 7 segment RED LED display of 12.5mm character height.

RANGE

0 to 9999 Sec./Min./Hr.

0 to 9999 Counts.

RESOLUTION

1 or 0.1.

1 Count.

ACCURACY

±0.1%.

Absolute.

REPEATABILITY

±0.1%.

RESET

Auto reset to Zero at preset value and repeat cycle automatically or by external actuation. 100 mili second typical reset time.

OUTPUT

Pizzo Electric Buzzer or 1 changeover relay contact of 3 Amp. resistive load @230V AC.

SETTING

Digital setting by Thumbwheel Switches - 4 digits.

OUTPUT ACTION

Delay ON/Delay OFF/Pulsed Output (3 Seconds fixed).

OUTPUT ON INDICATION

By RED LED ON.

POWER SUPPLY

230V AC ±10%, 50Hz.

SIZE	92mm (W) x 92mm (H) x 150mm (D).

AMBIENT

10 to 50°C and 90% RH Max.

OPTIONS : TIMER

¤ Model DTDR - 4020 is available with 2 set points, each for Relay ON and OFF period in cyclic mode.
¤ Time Totaliser is available with 6 digits with Non-Volatile RAM having 10 year data retention.
¤ Time Interval Meter is available with 4 or 8 digits with resolution upto 0.1 mili sec.
¤ Reflx Timer with 0 to 9 or 0 to 99 seconds range is available with ratio control of 0 to 99%
¤ Microcontroller based Programmable Timer is available with 4 digit display, 2 set points, programmed relay output action, programmable range, decimal point, Delay ON/Delay OFF/Cyclic mode, with Non-Volaile data storage.

OPTIONS : COUNTER

¤ 24V DC @500mA to energise Solenoid Valve.
¤ 12V DC impulse output for magnetic counter.
¤ Battery Backup.
¤ Reflx Timer with 0 to 9 or 0 to 99 seconds range is available with ratio control of 0 to 99%
¤ Microcontroller based Programmable Counter is available with 4 digit display, 2 set points with programmed relay output action, built-in totalizer, Multiplier/Division factor, decimal point, UP/DOWN Count selection with non-volatile data storage.
¤ 6 Digit Count totalizer offered with Non-Volatile Ram with 10 year data retention.
¤ Pulsed Relay Output, time adjustable upto 10 sec. with Trimpot.
