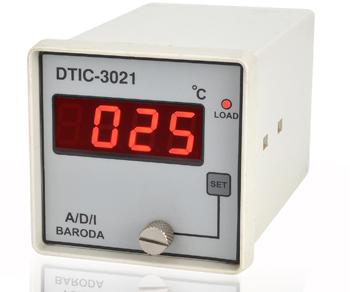

Temperature Indicator

Supply TypeSupplier, Retailer
Preferred Buyer Location All over the world

Applications Process Industries. Laboratories. Heat Treatment Plants. Plastic Industries. Features Vatiety of models available with various calibrations and ranges. Bright digital display for easy viewing. Excellent accuracy and repeatability. Dual slope integrating technique with auto zero and auto polarity. Automatic cold junction and line resistance compensation. Minimum effects on performance against temperature, humidity and power flactuations. Digitally linearised scale available optionally.

View More Details

Send Enquiry

Company Information

Analog & Digital Instrumentation

Makarpura, Vadodara, Gujarat

View Number

Member Since 13 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Specifications

MODEL

A - DTI-3500 B - DTI-3506/3512
DTI-3500L DTI-3506-L/3512-L

C - DT-2000
DT-2000L

INDICATION

3 1/2 Digit-7 segment display with auto polarity indication.

DISPLAY TYPE

LED - 12.5 mm height

LCD - 10 mm height

INPUT RESISTANCE/EXCITATION CURRENT

Greater than 100kΩ for Thermocouple input/ 1mA excitation current for RTD input.

SENSOR BREAK INDICATION

Indicated by three least significant digits Blank and most significant digit On.

COLD JUNCTION & LINE RESISTANCE COMPENSATION

Automatic cold junction compensation over ambient temperature of 0 to 60°C. Upto 500Ω line resistance for Thermocouple and up to 20Ω line resistance for RTD three wire configuration.

OPERATING AMBIENT RANGE

0 to 60°C Temperature & 95% R.H. at 40°C (non - condensing).

TEMPERATURE EFFECT ON ZERO AND SPAN

±0.05 digit/°C on zero & ±0.01% of Span /°C on span.

POWER REQUIREMENT

230V ± 10%, 50HZ. 5VA power consumption.

9v Cell or 4x1.5V Cells.

INPUT/OUTPUT TERMINATION

Screws on barrier terminal.

2 or 3 Pin Socket.

ENCLOSURE

A   -  92X46 (mm) panel cutout with 180mm depth.
B  -  92X92 (mm) / 186X92 (mm) panel cutout with 180mm depth.
C-1  -  ABS moulded casing - 80X145X38 (mm).
C-2  -  Metallic casing - 110X180X48 (mm).

A - Temp. Indicators in Flameproof Enclosures are also available.
B - Provided with inbuilt rotary selector switch suitable for 6 OR 12 inputs.
C - Provided with Leather cover with shoulder strap. Battery life is 100Hrs. intermittent operation.
