Disintegration Test

We are offering disintegration test

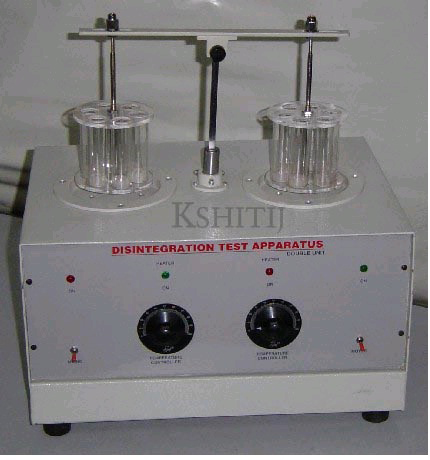

the test equipment work on up and down movement of tablet in medium of water kept at 370c. Built in a steel cabinet of 17"x12"x9" high which housed a geared motor for the vertical shaft drive the shaft moves up and down by 50 to 60 mm at speed of 28-32 strokes per minute. On the upper end of the shaft fitted a horizontal strip with clamp on either side. These clamps hold glass vessels open at both ends and with stainless steel wire gauge with rubber rings at the lower end, which dips in water. Two independently thermostatically controlled hot plate rating 65 watt are fixed on the top of the cabinet upon which beakers of 1000 ml size are placed filled with water. Temperature is maintained at 37â°c with and accuracy of 10c. Independent switches with neon indicators for motor hot plates are fitted on a panel. Mains fuse with two meters mains cord and plug provided. Work on 220 volts a.c. Mains.
