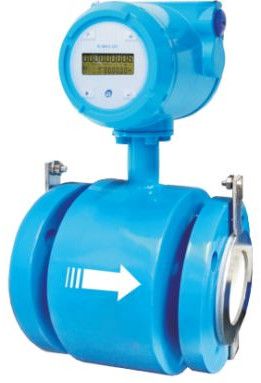

ELMAG 600 Electromagnetic Battery Flow Meter

ELMAG-600 – Battery / Solar Powered Electromagnetic Flow MeterFeatures

• Battery-powered / Solar-powered design

• Suitable for conductive liquids

• Full-bore electromagnetic design

• Empty pipe indication

• Inbuilt data logging facility

• Local indication through LCD display

• Optional communication port

• Simple and cost-effective construction

• Maintenance-free, no moving parts

  Description

The Electronet ELMAG-600 is a battery-powered electromagnetic flow meter designed for applications where field power is unavailable. It offers complete installation flexibility without compromising performance or accuracy.

With a battery life of 2 to 10 years (based on sampling and communication interval), the ELMAG-600 ensures reliable long-term operation. The meter is easy to use, simple to install, and requires no regular maintenance.

It is ideal for municipal and industrial water applications, cooling towers, water treatment systems, and domestic installations.
The LCD display indicates flow rate and totalized flow, and automatically turns OFF after 10 minutes to save power. It can be reactivated using the Enter key.

  Technical SpecificationsProcess & Media

• Media: Conductive Liquid

• Line Size: 15 NB to 600 NB

• Conductivity: > 5 µS/cm

• Viscosity: Up to 200 cP

• Excitation: Pulsed DC

  Electronics

• Power Supply: Battery Powered / Solar Powered

• Mode: Integral / Remote

• Display:

  • LCD

  • 5-digit flow rate

  • 9-digit totalizer

• Calibration:
  Wet calibrated at IEC / ISO / EN17025 NABL Accredited Facility

  Performance

• Accuracy: < ±1% of M.V. (+5 mm/s for velocity range 0.3–6 or 12 m/s)

• Linearity: ±0.5% of M.V.

• Repeatability: ±0.2% of M.V.

• Temperature Coefficient: ±0.05% per °C

• Process Temperature:

  • –20 to 85°C (Rubber lining)

  • –20 to 220°C (PTFE lining)

• Process Pressure: Up to 16 kg/cm² (higher on request)

• Velocity Range: 0.3 – 2.5 m/s (up to max. 10 m/s)

  Mechanical ConstructionMaterial of Construction

1. Lining: Neoprene / Ebonite Rubber / PTFE / PFA / PU / Ceramic

2. Flange: MS / CS / SS316 / SS304 / PVC

3. Electrodes: SS316L / Hastelloy-C / Platinum / Tantalum / Titanium

4. Coil Housing: MS / SS304 / SS316 / PVC

Electronics Enclosure (MOC)

• Aluminium Die-Cast

• SS316

• ABS Plastic

  Additional Specifications

• Low Battery Indication: Provided

• Battery Life: 2 to 10 years (depending on sampling interval)

• Response Time: < 10 seconds

• Electronic Protection Class:

  • Field Mount: IP-67 / IP-68

  • DIN Standard: IP-54

  • Flameproof: CMRI IIA IIB Certified

• Sensor / Flow Tube Protection: IP-67 / IP-68

  Installation

• Process Connections: ANSI 150 flanged (ASME B16.5) – Others on request

• Mounting: In-line horizontal / vertical

• Ambient Temperature: –20°C to 70°C

• Humidity: 5% to 95% non-condensing
