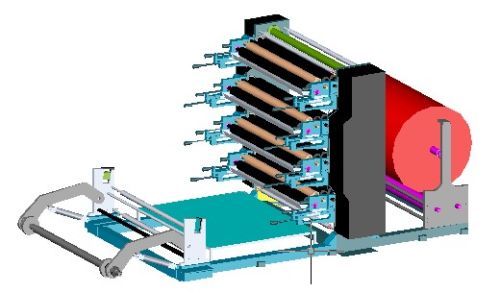

Flexo Printing Machine

Flexo Printing Machine i-Type Suitable for 2,3,4,6 & 8 Color(i-type Flexo Printing Press Paper Cup For easy Operation) Specially designed compensator roll to roll screw to achieve extra-fine registration HMI Touch Easy Smooth Programme, All Rolls are dynamically balanced to ensure noise and vibration free operation for accurate Printing Web edge guiding system with EGLM roll feedback & load cell sensing for infeed and outfeed, Pneumatic Automatic Brake With One touch with Auto DS Roll Sensor , Main Motor ac (composition greaves Moter) with Inveter vfd drive , Better Accuracy at high speed IR Heater/Hot Air Dryer, Easy Length & Height Setting.

Specifications :

• Flexographic Printing Press Stack type And i-Type Suitable for 2,3,4,6 & 8 Color
• New Added safety with air shaft in unwinder and rewinder
• Specially designed compensator roll with ball screw to achive extra-fine registration
• All Rolls are dynamically balanced to ensure noise and vibration free operation for accurate Printing
• Web edge guiding syatem with gudeliner feedback & load cell sensing for infeed & outfeed
• Rewinding and Main Moter ac (Cromton Greaves Standard Moter) with Inveter drive
• Pnumatic Automatic Brack With One touch with Auto Diemeater Roll Sensor
• Unwinder Safety Chuck With Airshaft Easy Fast Load Reel
• Rewinder Airshaft Easy Fast Unload Reel
• Fully Automatic Feeder Pressor
• Drying Source 4 color IR Heater , 1/2 Electrical Hot air
• All Controler One Penel And HMI Easy ProDS Smooth Programe Easy Touch
• Machine All Parts Esay Maintanance And Repairable
• Max. Web Width : 850mm , 1050mm , 1200 mm , 1400 mm
• Maximum Operating Speed : 70 meters/min. / 90 meters/min.
• Lenth and hight easy printing setting with Lock
• Print Repeter range : 350 to 800 mm(1200 mm on demand)
• Suitable for printing on PAPER BOAR/DHDPE/PP/LLDPE/LDPE/BOPP/NON-WOVEN FILM.

Optional Attachment :

• Video Scope
• Ink Circulation system
• Ceramic Anilox roll
• Single / Double Doctor Blade Chamber Syatem
• Auto Set 2 , 3 & 4 Drive Syatem
• Live web video Syatem
• Moterized ink pump.
