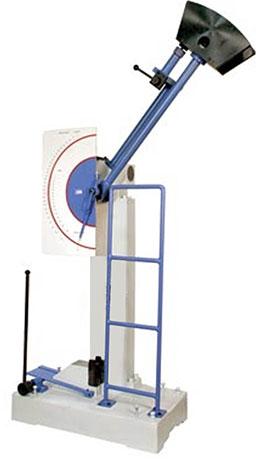

Impact Testing Machine

Imapact testing machine strictly conforms to the relevant IS Standards and is designed for conducting IZOD and CHARPY TESTS on metals and alloys. The machine is supplied complete with strikers for conducting IZOD and CHARPY TESTS The impact energy is observed on a mechanical against a pointer. Least count 0.2 Kgm

1. Pendulum Drop Angle
Charpy Test : 140°Izod Test : 85°
2 Pendulum effective weights
Charpy Test : 20 to 21 kgIzod Test : 21 to 22 kg
3 Pendulum speed
Charpy Test : 5, 3- 5.35 m/sIzod Test : 3.95/3.99 m/s
4 Pendulum impact energy
Charpy Test : 300JIzod Test : 170J
5 Accuracy : +/-0.5 %
6 Distance of axis of pen24 mm dulum fromCentre of specimen/point of specimen
Hit by pendulum : 815-825 mm
7 Maximum permissible losses by friction
&windage : 0.5 % of Impact Energy
8 Striking edge angle
Charpy Test : 30°Izod Test : 75°
