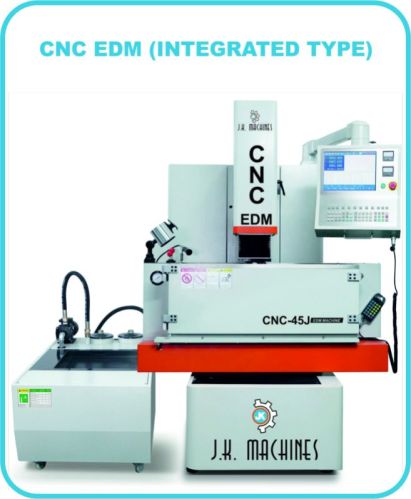

Integrated Type CNC EDM Machine

Listing ID #6976781

Get Latest Price

MOQ 1 Piece
Brand NameJ. K. Machines
Country of OriginIndia
Automation GradeSemi-Automatic
Weight1000 kg
Supply Type Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Brand Name J. K. Machines
Country of Origin India
Automation Grade Semi-Automatic
Power Input 5 kVA
Table Depth 350 mm
Weight 1000 kg
Machine Type Integrated Type
Table Width 500 mm

Salient Features

Panasonic AC servo for X, Y & Z axis.
15 inch LCD screen
Automatic protection circuit for carbon deposition prevention
Multi functional hand control box
Compact elegant looks
Axis resolution – 1 micron
Smoke sensor and fire extinguisher
High lifting height for ultra deep hole

Standard Accessories

Axis Corrector
Flat Electrode Holder
Round Electrode Chuck
Flushing Aids
Clamping Kit
Tool Kit

Optional Accessories

Servo stabilizer
Edm oil
Mirror processing special circuit
Magnetic chuck

Technical Specification

Specification	Unit	CNC-30J	CNC-45J	CNC-50J	CNC-70J
Work Tank (WxDxH)	mm	870 x 570 x 320	1050 x 610 x 450	1150 x 690 x 480	1940 x 1050 x 600
Working Table	mm	500 x 300	700 x 450	800 x 500	1200 x 700
Longitudinal Travel (X axis)	mm	300	450	500	700
Transverse Travel (Y axis)	mm	200	350	400	600
Quill Travel (Z axis)	mm	200	250 + 250	250 + 250	300 + 300
Quill to Working Table	mm	520	700	760	1000
Max. Electrode Weight	kg	50	75	75	100
Max. Workpiece Weight	kg	400	600	800	1800
Drive System for X,Y,Z Axis		AC Servo	AC Servo	AC Servo	AC Servo
Machine Weight	kg	1350	1600	2200	3500
Machine Dimension	mtr	1.50 x 1.40 x 2.30	1.80 x 1.40 x 2.40	1.90 x 1.15 x 2.50	2.10 x 2.00 x 2.80
Pulse Generator
Max. Working Current	amp	30 ( 60AMP & 90 AMP OPTIONAL)
Max. MRR	mm3/ min	300
Min. Electrode Wear	%	≤0.1
Best Surface Finish (Ra)	µ	0.30 (0.10 with mirror finish circuit)
Power Supply	volt	3 Phase, AC415V/50Hz
Connected Load	kVA	4	6	8	10
Dielectric tank
Oil Tank Capacity	Ltr	300	400	500	600
Oil Pump Motor Power	HP	0.5	0.75	0.75	0.75
