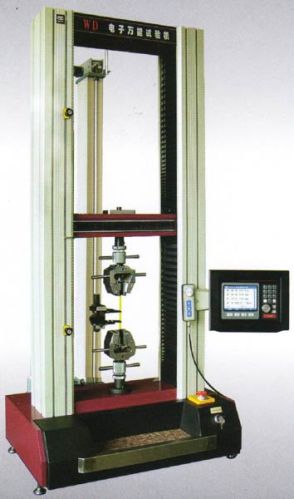

LCD Electronic Tensile Testing Machine

We are offering lcd electronic tensile testing machine.
Specification：100n、200n、500n、1000n、2000n
■model：auto1000
■application：
the test machine is mainly suitable for rubber , paper , leather , metal wire , metal foil , food packaging , textile fibers , wire and cable, adhesives , connectors ,and other material's tensile , peel, tear etc mechanical tests.
the main technical parameters
model auto1102 auto1202 auto1502 auto1103 auto1203
maximum load 100n 200n 500n 1000n 2000n
accurate grade 1 grade
effective measuring range 1%～100%fs
the relative error of displacement value within ±1%
the relative error of displacement value ±0.5%
displacement resolution 0.001mm
range of testing speed 0.05～500mmmin
the relative error of speed within ±1%
the max travel of moving crossbeam 500mm1200mm
machine size（l×g×h） 520×440×1500（mm）
power 220v50hz，100w～300w
machine weight 25kg～50kg
