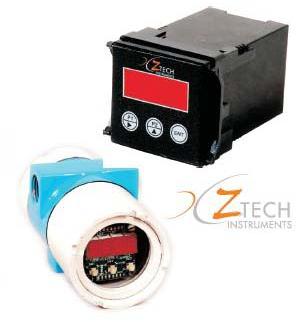

Loop Powered Indicator

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Based on advanced technology, our Loop Powered Indicators are one of its kinds. The company is an eminent Manufacturer and Supplier of Loop Powered Indicator in Gujarat. The calibration /....

View More Details

Send Enquiry

Company Information

Ztech Control Systems

Subhanpura, Vadodara, Gujarat

View Number

Member Since 11 Years
Nature of Business Retailer
GST No. 24ADFPJ1064P1ZG

View Company Details

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Based on advanced technology, our Loop Powered Indicators are one of its kinds. The company is an eminent Manufacturer and Supplier of Loop Powered Indicator in Gujarat. The calibration / configuration of the Loop Powered Indicator can be done from front keys itself. An enhanced feature of selecting the square root and linear display mode field is available on our Loop Powered Indicator. We make available the Powered Indicator in card, panel, weather proof and flame proof enclosures.
Details :

4/20 mAd and 20/4 can be field configured
Filter option for input signal variation is provided
Lo cut-off signal provide

Specifications

Input	4 – 20mAdc
Voltage Drop	3.9V at 20mAdc Input.
Display	4 Digit 12.5mm & 8mm Size super Bright red Led
Accuracy	+/-0.1% for Linear & +/-0.25% of span for non linear input
Power	Self powered from input ambient
Temp	- 10 to 55 Degc.
Humidity	<95% RH non Condensate
Weight	250 to 400 gms. (As per the model)
Enclosure	ABS plastic molded, weather proof, flame proof
Dimension	96 (W) * 96(H) * 85mm, 96(W) 48(H) 110mm, 48 48 110mm
Mounting	Panel
