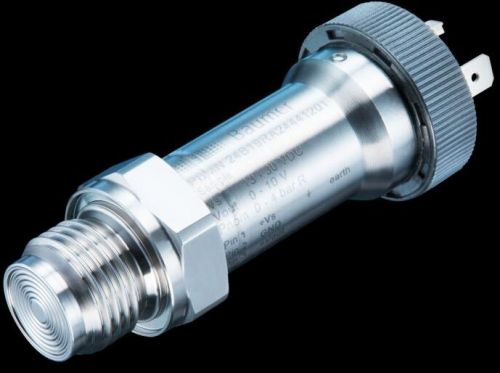

Pbmn Flush Pressure Transmitter

Product Specifications

• Max. turndown ratio 05:01:00 AM
• Pressure type Absolute, Relative (gauged)
• Diagnostic data (acyclic) Process temperature
• Long term stability ≤ 0.1 % FSR/a , measuring range > 1 bar ≤ 1 mbar , measuring range ≤ 1 bar
• Standard error of measurement (BFSL) ± 0.04 % FSR ,± 0.1 % FSR ± 0.2 % FSR Including non-linearity, hysteresis and non-repeatability according BFSL For turndown, multiply this value by the applied turndown ratio
• Compliance and approvalsExplosion protection
• Rise time (10 ... 90 %) ≤ 5 ms
• Cycle time ≥ 2.3 ms
• Temperature coefficient ≤ 0.03 % FSR/10 K , measuring span ≤ 0.03 % FSR/10 K , zero point
• Baud rate 38,4 kbaud (COM2)
• Max. measuring span 400 bar
• Process data (cyclic) Process pressure
• Process data length 24 bit
• Compensated temperature range -40 … 85 °C
• IO-Link version 1.1
• Min. measuring span 0.1 bar
• Max. measuring error ± 0.1 % FSR, ,± 0.25 % FSR ± 0.5 % FSR Including zero-point and span error, nonlinearity (by terminal base line), hysteresis and non-repeatability (EN 61298-2) For turndown, multiply this value by the applied turndown ratio
• SIO-mode No
• Measuring range -1 … 400 bar
• IO-Link port type Class A
• Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
